NOTE:
If you have the FC product, the FC card is already pre-installed in the other full-height PCIe slot. There is
only one spare low profile slot. This is the slot into which you must install the HBA for Tape Attach. If the
HBA that you purchase has a full-height bracket, you must first replace it with a half-height bracket (supplied
with the recommended HBA).
NOTE:
The drawings illustrate how to install the Tape Attach HBA only; the pre-installed P400 card or FC card is
not shown.

Removing the PCI Cage

1. Loosen the two captive screws that secure the PCI cage to the chassis with a T-15 screwdriver.
2. Lift the PCI cage away from the chassis.

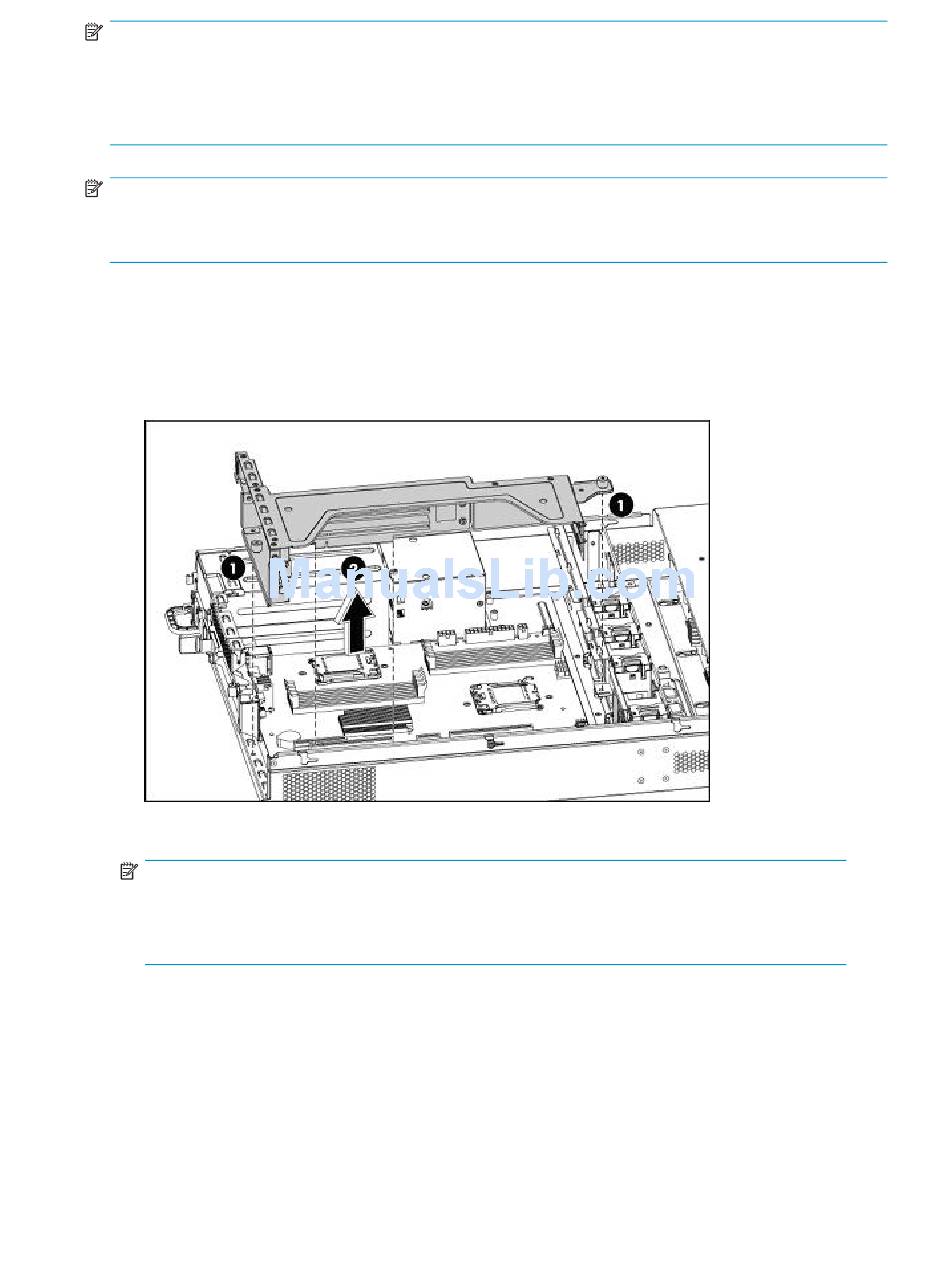

Figure 16 Removing the PCI cage
NOTE:
The pre-installed P400 card has a cable connecting it to the system board. It may be
easier to disconnect this cable while you are installing the new HBA. The same applies
to the FC card, if you have the FC model.
D2D Backup SystemHP D2D4004 and HP D2D4009
39
