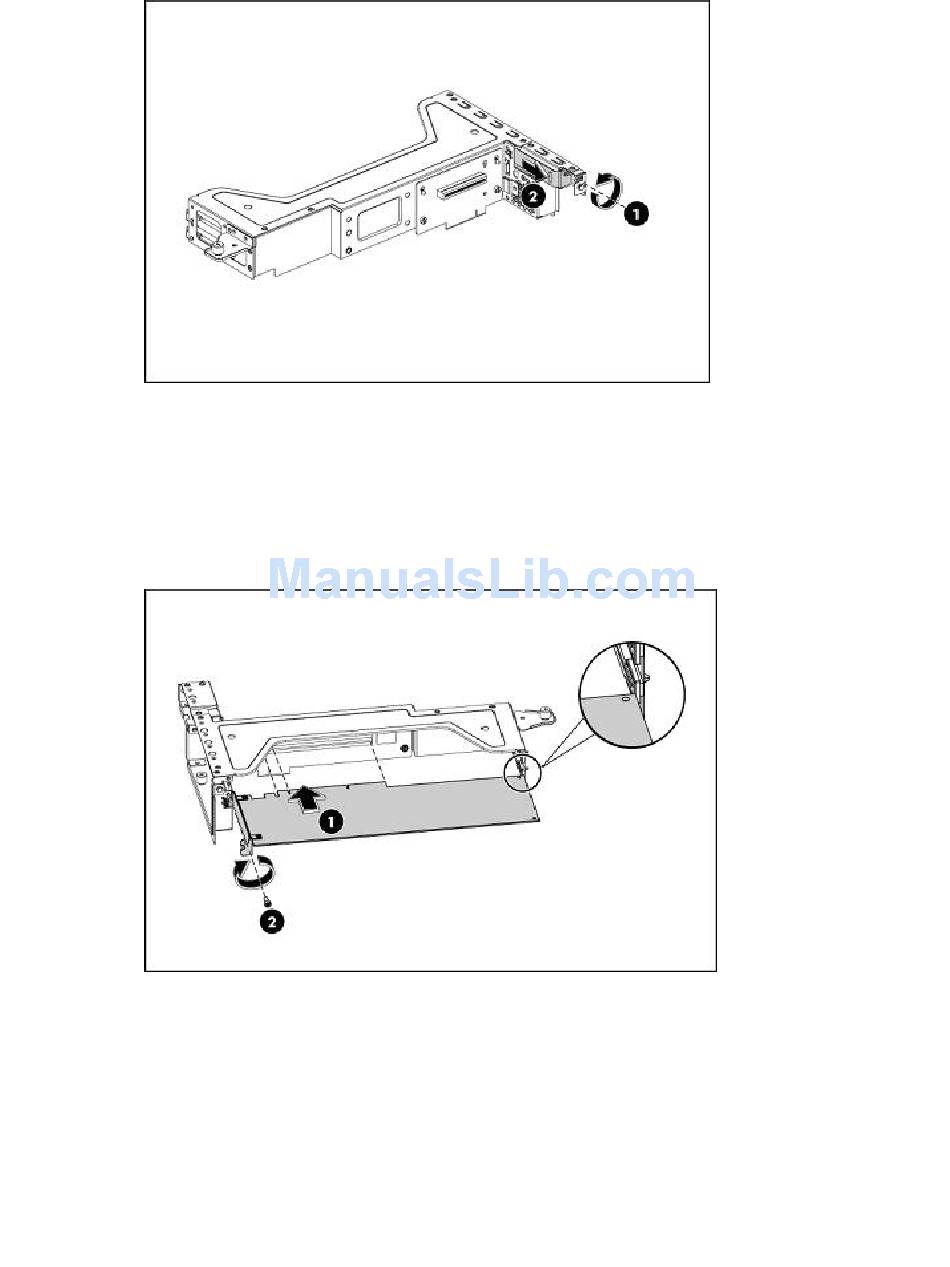

Figure 18 Removing the slot cover (low profile)
Installing the PCIe Card
1.
Slide the expansion board into the slot, aligning the board with its matching connector. Firmly
press the board to seat it properly in the slot.
2.
Tighten the screw that secures the card to the PCI cage.
Figure 19 Installing the PCIe card (full height)
D2D Backup SystemHP D2D4004 and HP D2D4009
41
