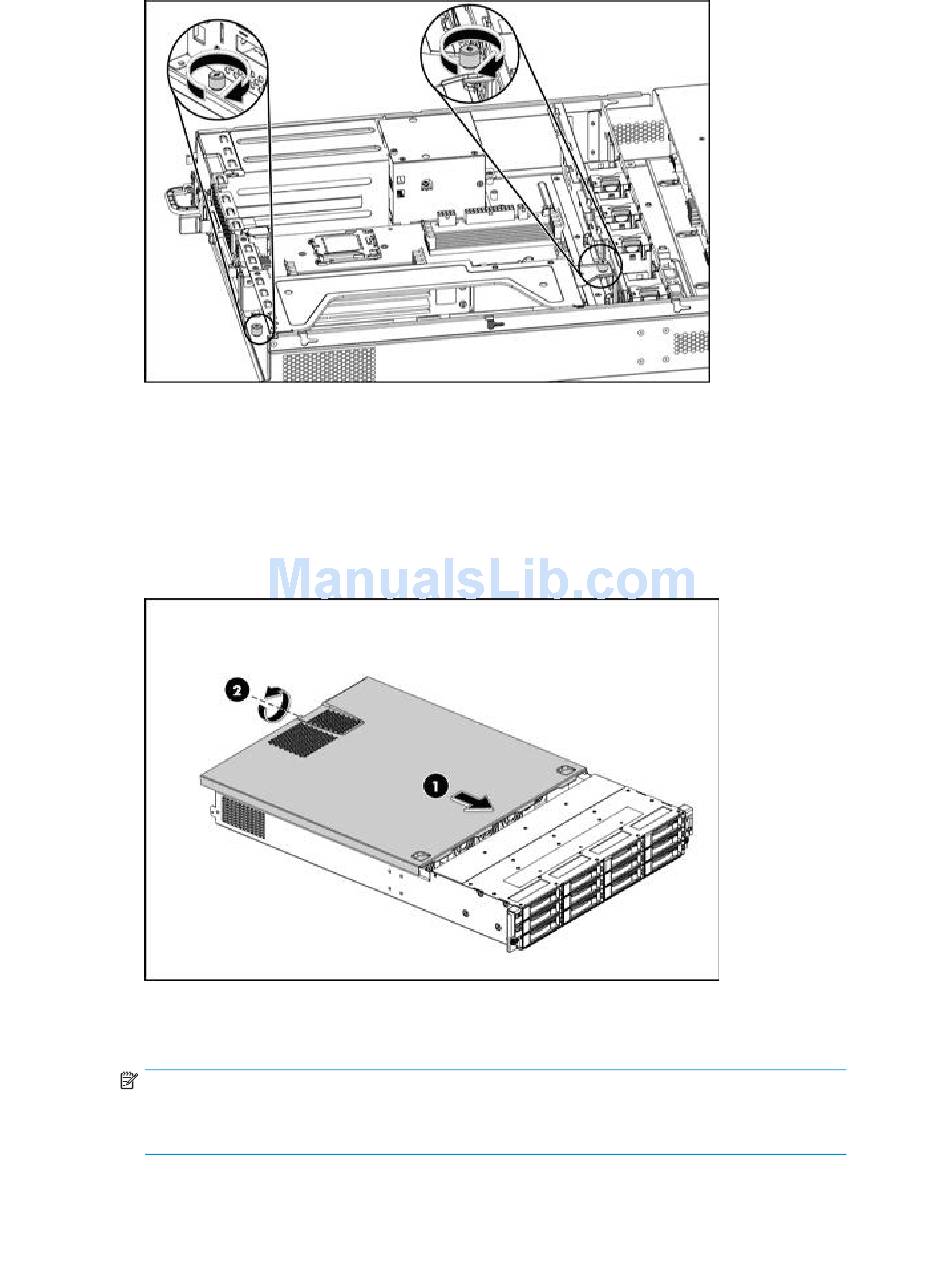

Figure 22 Securing the PCI cage
Replacing the top cover
1.
Align the top cover to the chassis and then slide it toward the front panel to position it into place.
2.
Once the cover is attached to the chassis, tighten the captive screw on the rear panel with a T-15
screwdriver.
Figure 23 Replacing the top cover
3.
Reconnect the network cable(s) and the power cord(s).
NOTE:
If you have the FC product, reconnect all cables connecting the FC card to Fibre Channel
switch.
D2D Backup SystemHP D2D4004 and HP D2D4009
43
