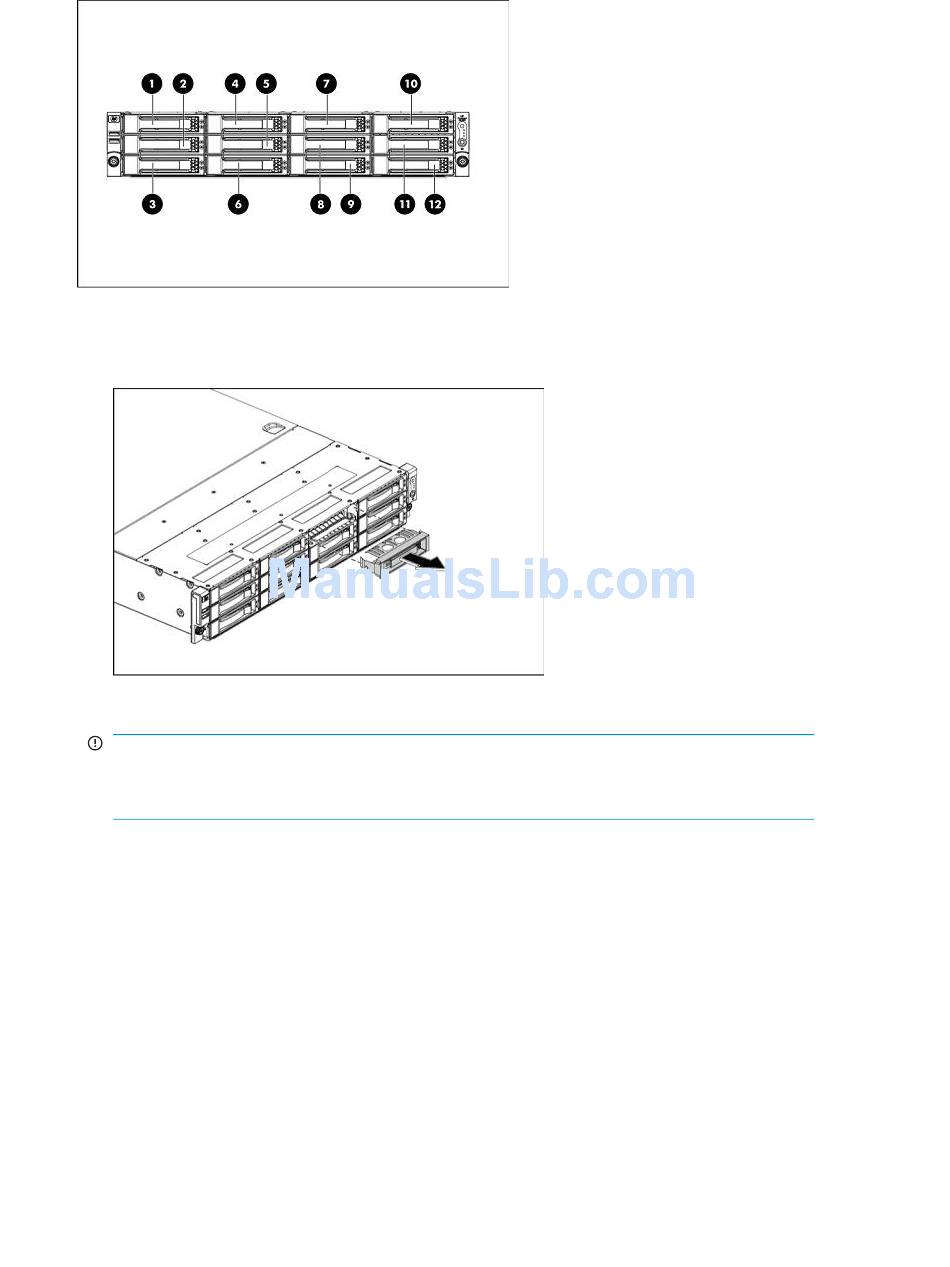

Figure 55 Disk numbering
1.
Pull the hard drive blank out of the chassis.
Figure 56 Removing the hard drive blank
IMPORTANT:
Do not discard the hard drive blank. If the drive is removed in the future, you must reinstall
the hard drive blank to maintain proper system airflow.
2.
Push the hard drive assembly (1) into the drive bay until it stops and press the hard disk drive
carrier latch (2) inward until it clicks.
134
Capacity Upgrade
