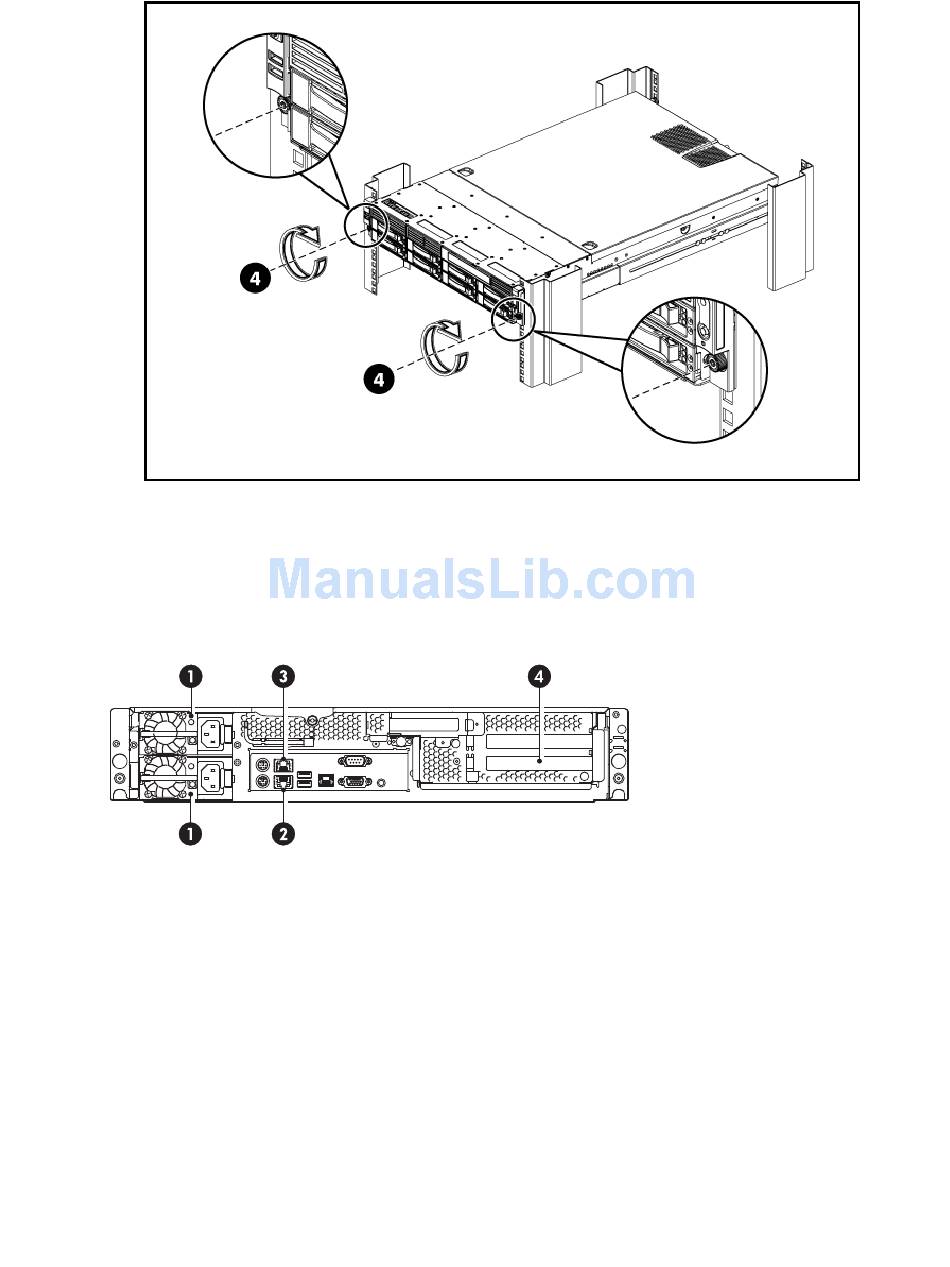

Figure 10 Secure the HP D2D to the rack
5. Using the holes provided in the rear rack rails, install tie wraps and route external cable as
required.

Connecting the hardware

1. Power connectors
3. LAN port 2 connector
Figure 11 Network and power connectors
1. Use the supplied power cord to connect the HP D2D Backup System to the main power supply. This
HP-approved cord is appropriate for your specific geographic region.
The HP D2D Backup System has a redundant power supply. Make sure that both power cords
are connected.
For detailed safety information, see the Safety Guide on the HP StorageWorks CD-ROM.
2.
Use any CAT-5E network cable (also supplied with the product) to connect to a Gigabit network
switch. 100 Base-T Ethernet will limit performance; 10 Base-T Ethernet will severely limit performance.
There are two LAN ports. LAN Port 1 should always be connected because this is the port that the
Web Management Interface uses. (See also
2. LAN port 1 connector, must be connected
4. Fibre Channel card with optical ports
"Dual network ports" on page 30.)
D2D Backup SystemHP D2D4004 and HP D2D4009
