NOTE:
Even on six–disk systems, there is a row for each disk in the optional capacity upgrade kit. These
entries have the message "not detected".

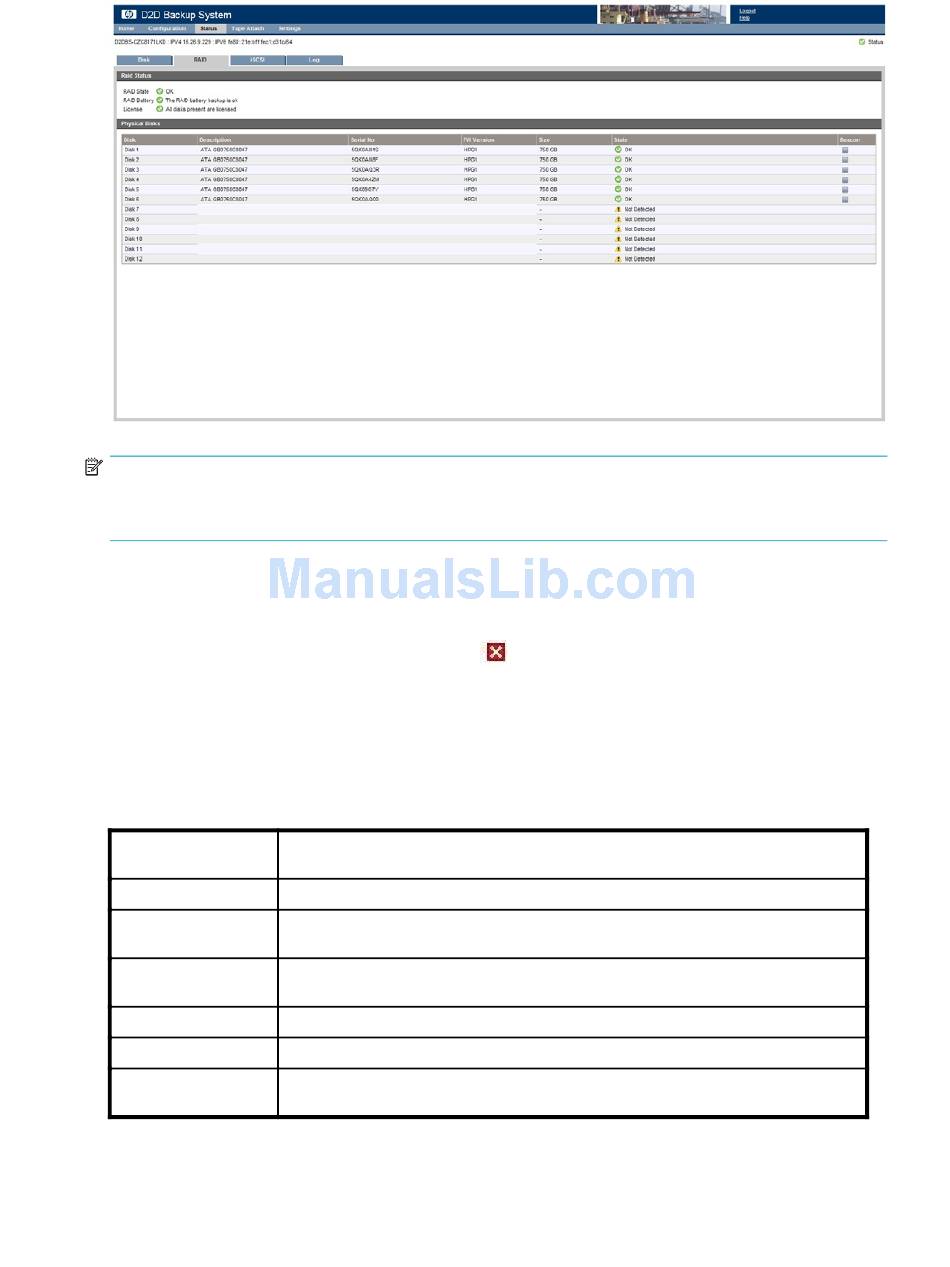

RAID status

In normal operation, this shows green, OK.
If one or more disks fail, it shows a failed icon.

Physical disks

This section provides information about the physical disks. If you need to replace a disk, it is very
important to obtain the serial number and the physical location of the failed disk from this page before
you replace it.
Table 11 Physical disk parameters
Disk:
Description:
Serial No:
FW Version:
Size:
State:
Beacon:
This indicates the physical location of the disk and is useful if you need to replace a
disk. Always double check against the serial number after removing a disk.
This is the product number of the disk.
This is the serial number of the disk. Always make a note of this before replacing
a failed disk.
This is the firmware version of the disk. It may be useful for troubleshooting and
when replacing a disk.
This is 750 GB.
This indicates the state of the disk. Green indicates OK, red indicates a failed disk.
Check this box to beacon the LED on the front of the disk. This helps you identify
the disk that needs attention.
