Removing the slot cover

1. Loosen the screw that secures the slot cover to the chassis. On the FC model, the HBA must be
installed in the low profile slot. On the iSCSI model it may be installed in either the spare full-height
or the low profile slot.
NOTE:
Before installing in the low profile slot ensure that the HBA is fitted with a low profile bracket
(supplied with the recommended HBA, if not already fitted).
2.
Remove the slot cover on the PCI cage.
CAUTION:
Do not discard the slot cover. If the expansion board is removed in the future, the slot cover
must be reinstalled to maintain proper cooling.

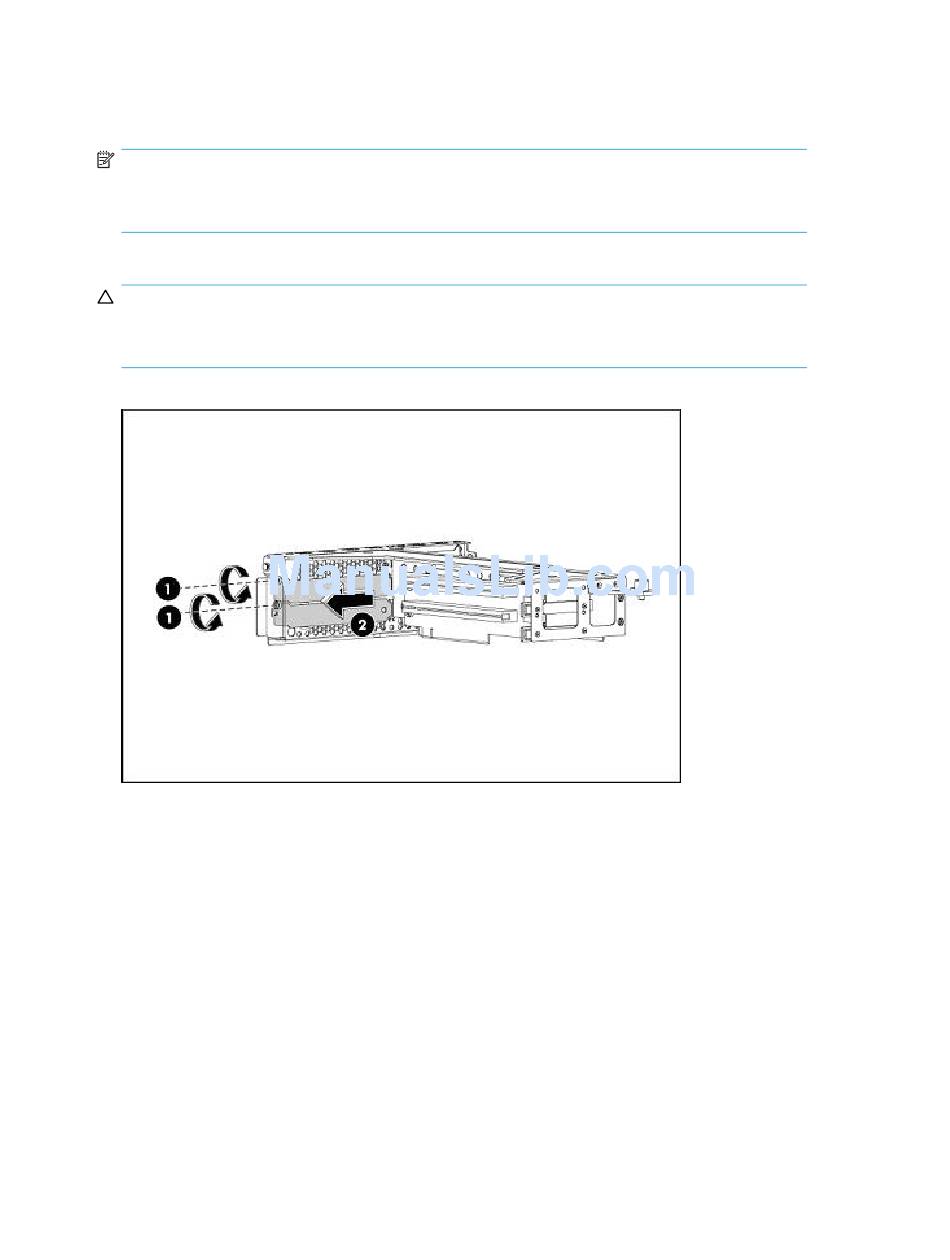

Figure 17 Removing the slot cover (full height)
