Removing the top cover

1. If you are installing the tape drive as part of the initial installation, go to step 3. If you have already
powered on the HP D2D Backup System, it must be shut down before you start. Make sure there
are no backup or restore jobs in progress and that no future jobs are scheduled to start whilst the
system is shut down. Select Shutdown on the Web Management interface and click Power Off to
power down the HP D2D Backup System safely.
2.
Disconnect the network cable(s) and the power cord(s) from the HP D2D Backup System.
NOTE:
If you have the FC product, disconnect all cables connecting the FC card to the Fibre
Channel Switch.
3.
You need to remove the top cover before you can remove or replace a server component.
• Loosen the captive screw (1) on the rear panel with a T-15 screwdriver.
• Slide the cover (2) approximately 1.25 cm (0.5 in) toward the rear of the unit and then lift the
cover to detach it from the chassis.
• Lift the top cover away from the chassis. (3)

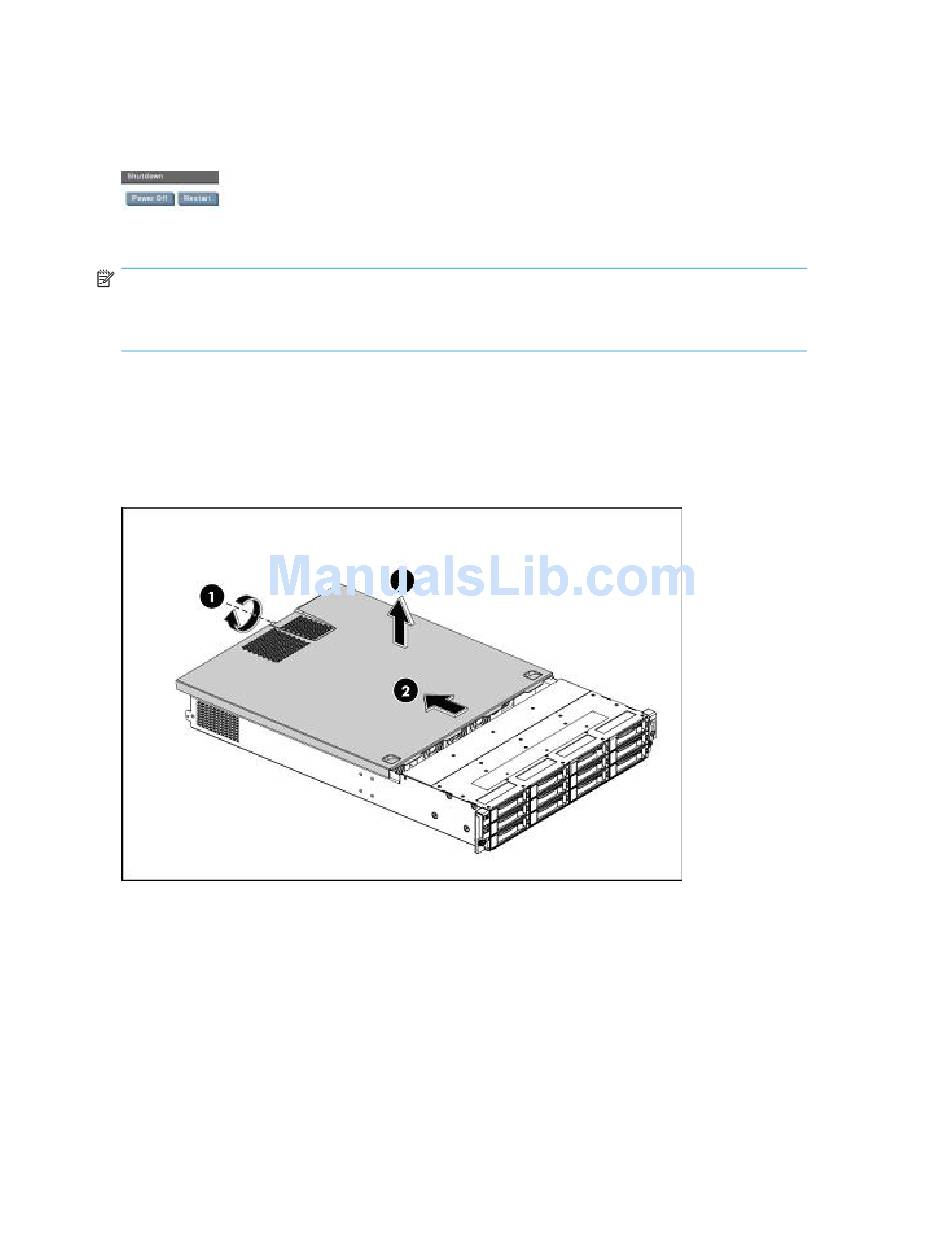

Figure 15 Removing the top cover

Installing the HBA

There are three PCIe expansion slots on the system board; two full height and one low profile slot. One
full height PCIe slot already has a P400 controller card installed. You may purchase and install either a
full-height or low profile PCIe card for Tape Attach.
38
Attaching a physical tape drive (optional)
