8: Coprocessor Interface

8.4.3

Coprocessor signaling

The coprocessor signals as follows:

Coprocessor absent

Coprocessor present

Coprocessor busy (busy-wait)

HCLK

Fetch stage

ADD

Decode stage

Execute stage

CPnCPI (from

core)

EXTCPA (from

coprocessor)

EXTCPB (from

coprocessor)

RDATA[31:0]

I Fetch

(ADD)

8.4.4

Consequences of busy-waiting

A busy-waited coprocessor instruction can be interrupted. If a valid FIQ or IRQ occurs (the

appropriate bit is cleared in the CSPR), the ARM720T processor abandons the coprocessor

instruction, and signals this by taking CPnCPI HIGH. A coprocessor that is capable of

busy-waiting must monitor CPnCPI to detect this condition. When the ARM720T core

abandons a coprocessor instruction, the coprocessor also abandons the instruction and

continues tracking the ARM720T processor pipeline.

Caution: It is essential that any action taken by the coprocessor while it is busy-waiting is

idempotent. The actions taken by the coprocessor must not corrupt the state of the

coprocessor, and must be repeatable with identical results. The coprocessor can

only change its own state after the instruction has been executed.

8-6

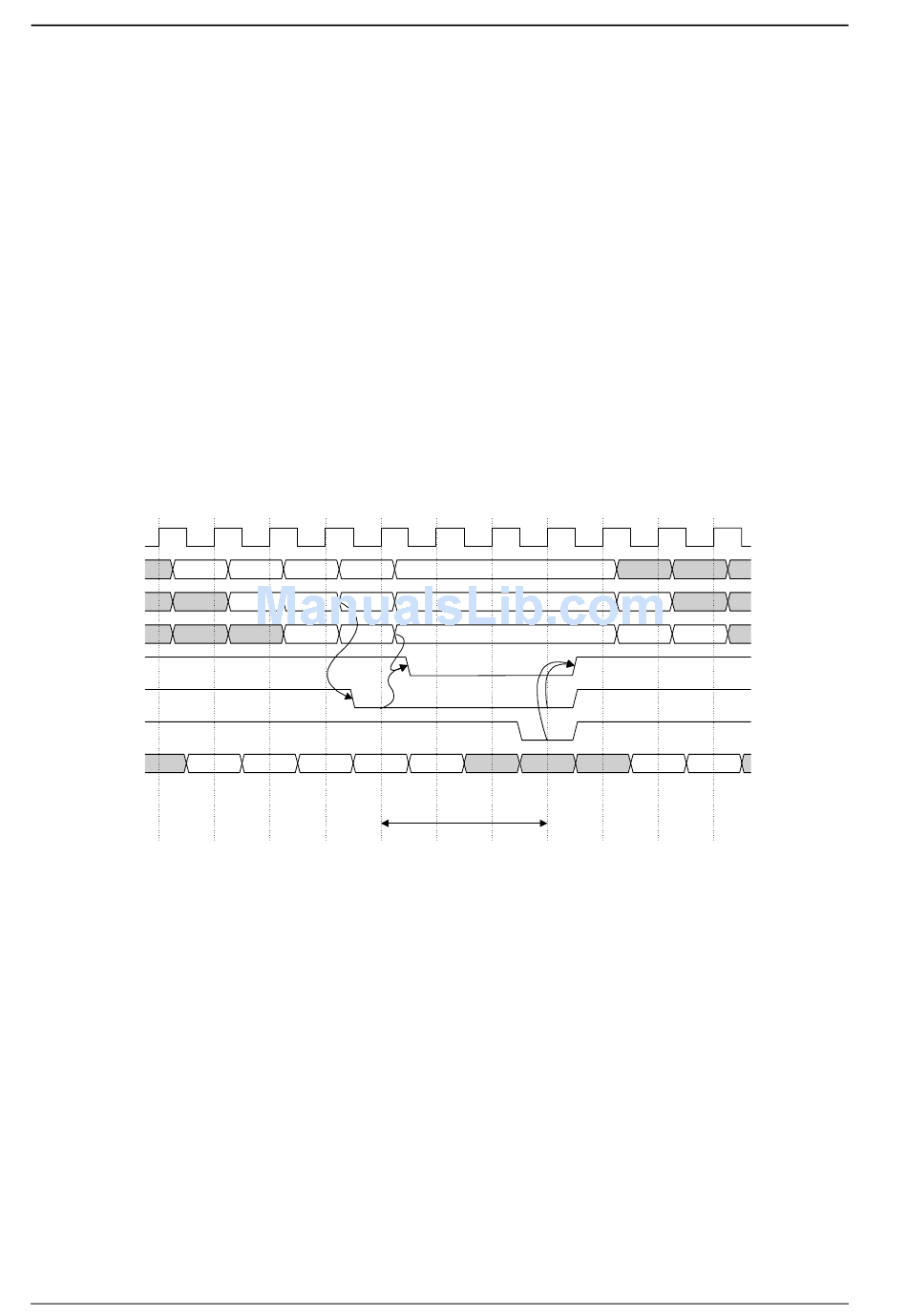

If a coprocessor cannot accept the instruction currently in Decode

it must leave EXTCPA and EXTCPB both HIGH.

If a coprocessor can accept an instruction, and can start that

instruction immediately, it must signal this by driving both

EXTCPA and EXTCPB LOW.

If a coprocessor can accept an instruction, but is currently unable

to process that request, it can stall the ARM720T core by asserting

busy-wait. This is signaled by driving EXTCPA LOW, but leaving

EXTCPB HIGH. When the coprocessor is ready to start executing

the instruction it signals this by driving EXTCPB LOW. This is

shown in Figure 8-1.

SUB

CPDO

TST

ADD

SUB

CPDO

ADD

SUB

I Fetch

(SUB)

(CPDO)

(TST)

(SWINE)

coprocessor busy-waiting
