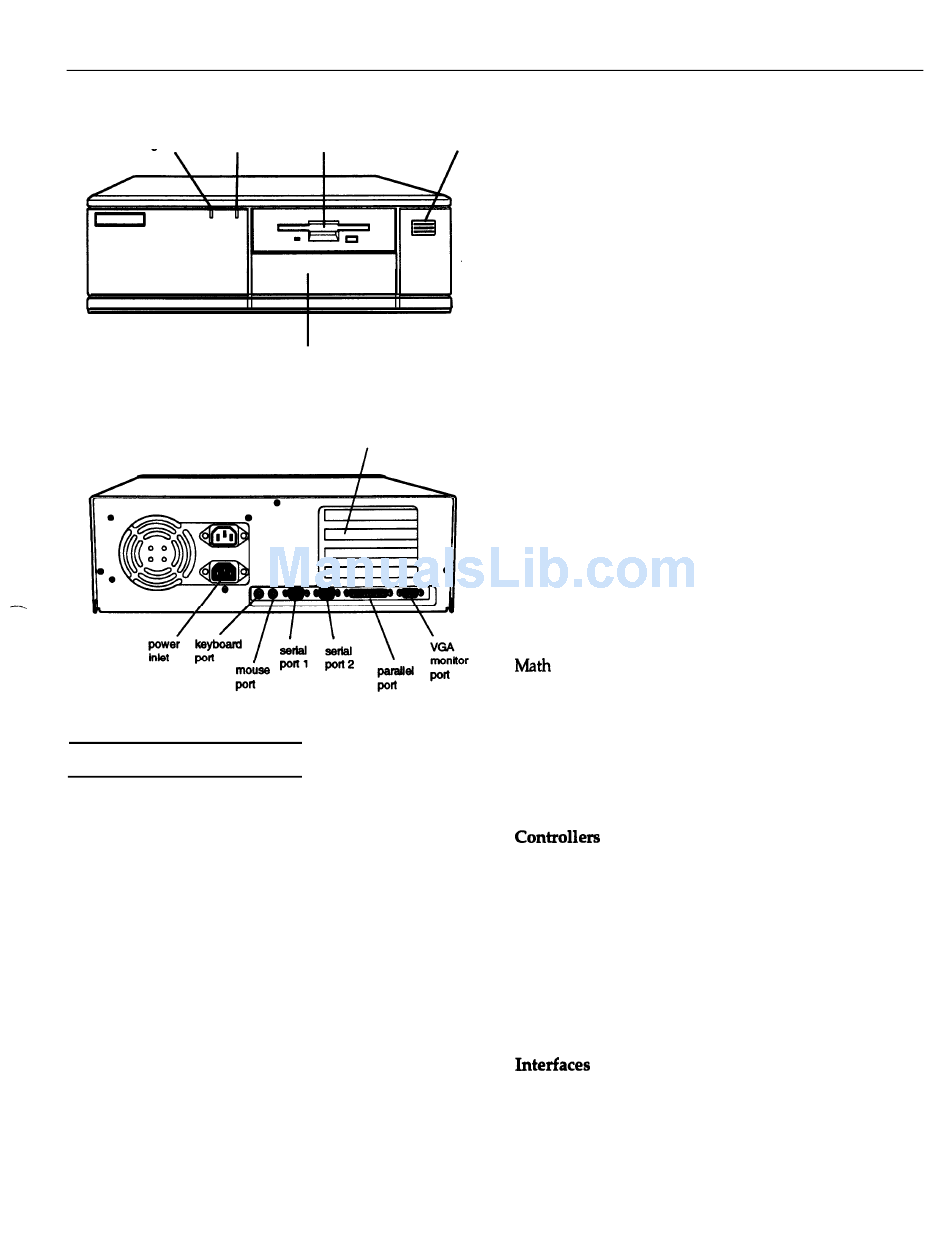

power
hard disk
(SPEED)
accesslight drive
light
bay for hard disk, diskette drive,
CD-ROM drive, tape drive, or other
Computer Specifications
CPU and Memory
32-bit CPU
Intel 486SX, DX, or DX2 processor
upgradable to faster, more powerful
processors, including SX2, DX4, or
Pentium OverDrive processors; DX4
processors require an adapter board to
regulate voltage
Energy Star
Low power consumption, Energy Star
compliant in base configurations
(consumes less than 30 Watts)
System speed
Fast and slow processor speeds available;
fast speed is the speed of your processor
and slow speed is 8 MHz; 0 wait state
memory access at fast speed
Press Ctrl, Alt, and - to select slow speed or
Ctrl, Alt, and + to select fast speed (use the
- or + on the numeric keypad); default
system speed selectable through SETUP
diskette
power
button
option card slots
3/94
ISA bus speed for all processors is
8.3 MHz; local bus video speed reflects the
speed of the processor; at fast speed,
DX2/50 and DX2/66 processors run
internally at 50 and 66 MHz, but run
externally at 25 and 33 MHz; local bus
speeds for DX/2 processors are 25 and
33 MHz respectively
Memory
4MB RAM standard on system board;
expandable to 36MB using 1MB, 4MB, and
16MB SIMMs; SIMMs must be 72-pin,
32-bit or 36-bit, fast-page mode type with
an access speed of 70ns
128KB system and video BIOS and SETUP
ROM
code located in EPROM on main system
board
Video RAM
512KB or 1MB DRAM standard on main
system board; 512KB expandable to 1MB
using a 256 x 16-bit, 40-pin SOJ DRAM
chip
Supports shadowing of system and video
Shadow RAM
BIOS ROM into RAM
8KB of internal cache on processor;
Cache
supports 32KB, 64KB, 128KB, or 256KB of
external cache using 28-pin, 8 x 8, 20ns
DIP chips or 28-pin, 32 x 8, 20ns DIP chips
and 28-pin, 32
For SX-based systems, can install an
coprocessor
80487SX processor with math coprocessor
support; math coprocessor built into
DX-based and Pentium OverDrive
processors
Clock/calendar
Real-time clock, calendar, and CMOS
RAM socketed on main system board with
external 3.6V battery backup
Video
Cirrus Logic CD5428 high speed super
VGA local bus on-board controller with
True Color support
Diskette
Controller on main system board supports
up to two diskette drives or one diskette
drive and one tape drive
Hard disk
Interface on main system board supports
up to two IDE hard disk drives with
built-in controller
Monitor
Local bus SVGA interface for fixed or
multi-frequency monitor built into system
board; 15-pin, D-shell connector
EPSON Endeavor L
8, 15ns tag chips
x
EPSON Endeavor L - 1
