3 System Components
Telephones
MLX-10D
The MLX-10D telephone
Display (2 lines by 24 characters)
10 line buttons that can be programmed with features
4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
MLX-10D telephones can be wall-mounted, but wall-mounting makes the display
hard to read.
NOTE:
The MLX-10D should not be an operator console.
Figure 3–7.
MLX-10DP
The MLX-10DP telephone is the same as the MLX-10D telephone (see
3–7), except that the MLX-10DP has an adjunct jack in the back of it for
connecting PassageWay Direct Connection Solution applications.
NOTE:
The MLX-10DP should not be an operator console.
(Figure 3–7) provides the following features:
Display Screen
Handset
Home
MLX-10D
v v
Volume
Feature Transfer
HFAI
Conf
Mute
Drop
Speaker
Hold

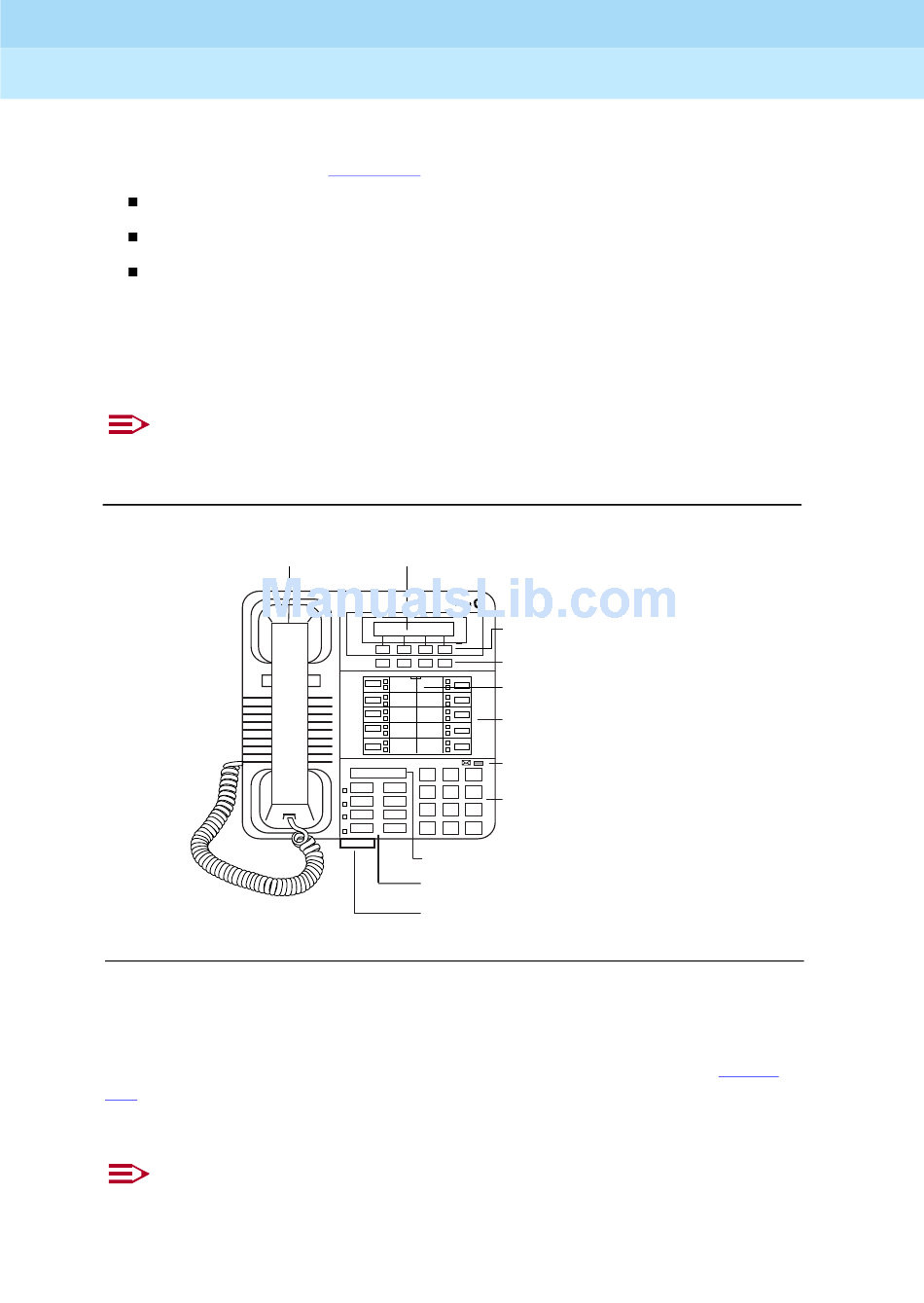

MLX-10D Telephone
3
Unlabeled Display Buttons (4)
Fixed- Display Buttons (4)
More
Menu Inspct
Button Labeling Card
Line Buttons (10)
Message Light
ABC DEF
1 2 3
MNO
GHI JKL
4 5 6
Dialpad
PQRS TUV WXYZ
7 8 9
OPER
* 0 #
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
3
Issue 1
June 1997
Page 3-19
