MERLIN LEGEND Communications System Release 5.0
System Manager's Guide 555-650-118
3 System Components
Telephones
MLX-28D

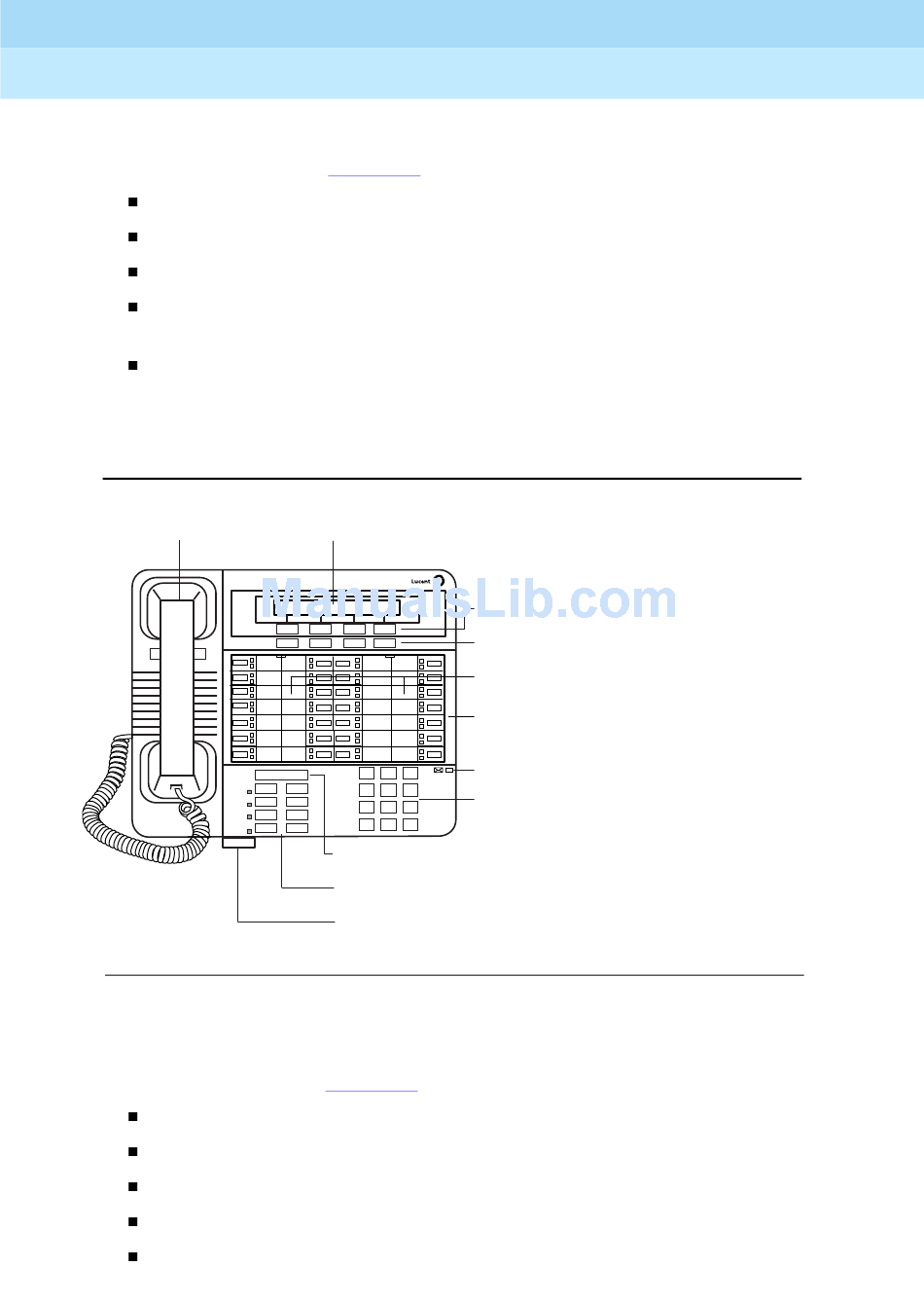

The MLX-28D telephone
Optional Direct-Line Console (DLC) operation
Display (2 lines by 24 characters)
28 line buttons that can be programmed with features
4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
Support of one or two Direct Station Selectors (DSSs) or PassageWay
Direct Connection Solution
MLX-28D telephones cannot be wall-mounted.
Handset
Figure 3–4.
MLX-20L
The MLX-20L telephone
System programming and optional DLC or QCC operation
Display (7 lines by 24 characters)
20 line buttons that can be programmed with features
14 fixed and unlabeled display buttons and 8 fixed-feature buttons
Support of one or two DSSs or PassageWay Direct Connection Solution
(Figure
Display Screen
MLX-28D Inspct
Home Menu
v v
Volume
Feature
Transfer
HFAI
Conf
PQRS
Mute Drop
Speaker Hold
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
MLX-28D Telephone
(Figure
3
3–4) provides the following features:
Unlabeled Display Buttons (4)
Fixed-Display Buttons (4)
More
Button Labeling Cards
Line Buttons (28)
Message Light
ABC DEF
1 2 3
MNO
GHI JKL
4 5 6
Dialpad
TUV WXYZ
7 8 9
OPER
0
#
*
3
3–5) provides the following features:
Issue 1
June 1997
Page 3-16
