The following table describes the Switch Port ACL Configuration controls:
Table 102 Switch Port ACL Configuration controls
Control
ACLs Available
ACLs Selected
ACL Groups Available
ACL Groups Selected

Port-Based Port Mirroring Configuration

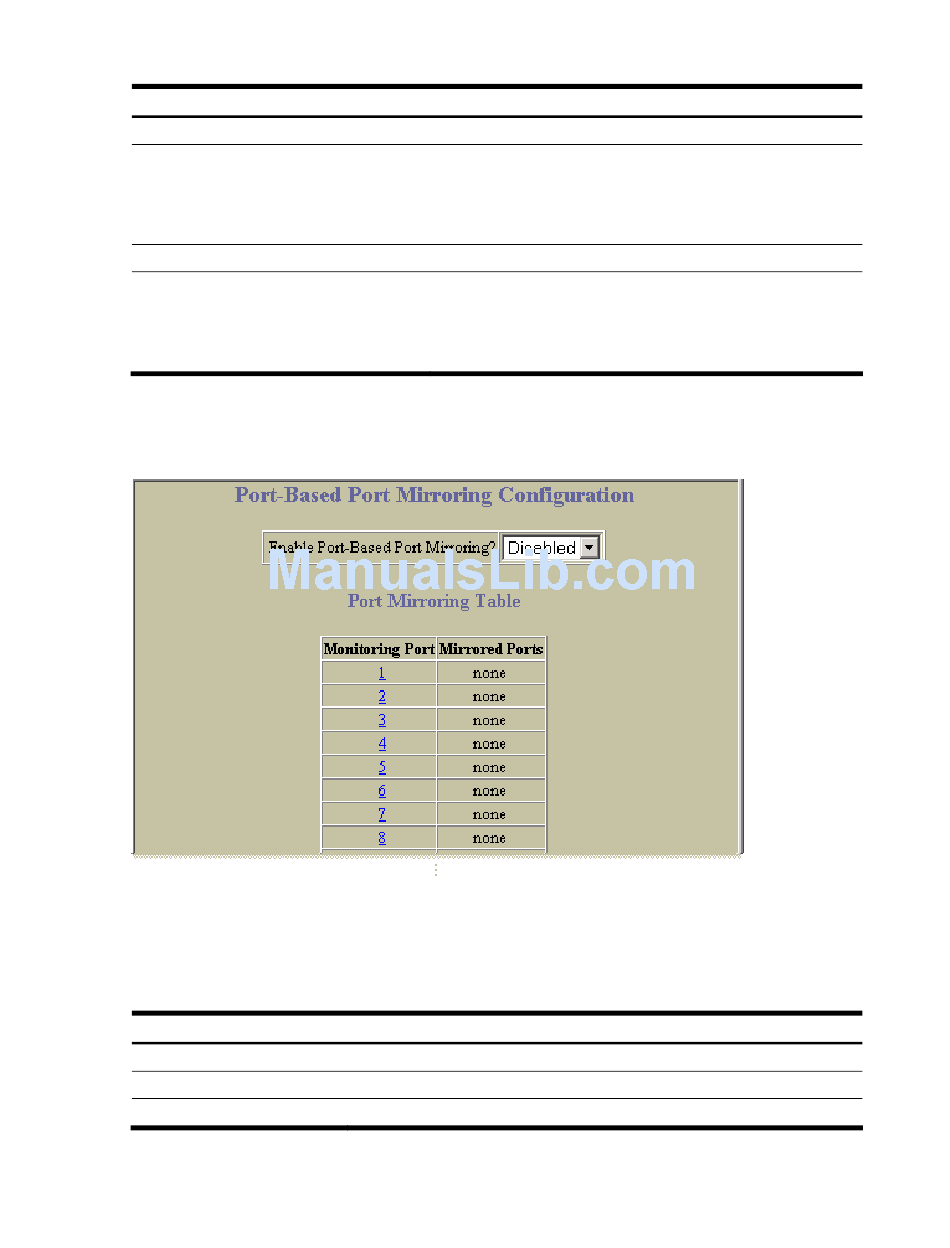

To display the following form, select Port-Based Port Mirroring (click the underlined text, not the folder).
This form is used to configure, enable, and disable the Monitoring Port. When enabled, network packets being
sent and/or received on a target port are duplicated and sent to a monitor port. By attaching a network analyzer
to the monitor port, you can collect detailed information about your network performance and usage.
The following table describes the Port-Based Port Mirroring Configuration controls:
Table 103 Port-Based Port Mirroring Configuration controls
Control
Enable Port-Based Port Mirroring?
Monitoring Port
Mirrored Ports
Description
Lists the ACLs that you can add to the port.
Lists the ACLs associated with the port.
Select an ACL number in the ACLs Available list, and click Add to add the
ACL to the port.
Select an ACL number in the ACLs Selected list, and click Remove to
remove the ACL from the port.
Lists the ACL Groups that you can add to the port.
Lists the ACL Groups associated with the port.
Select an ACL Group number in the ACL Groups Available list, and click
Add to add the ACL Group to the port.
Select an ACL Group number in the ACL Groups Selected list, and click
Remove to remove the ACL Group from the port.
Description
Enables or disables port mirroring on the switch. Port mirroring is disabled by default.
Selects a port number to configure the port as a monitoring port.
Displays the port(s) currently mirrored for each monitoring port.
