The following table describes the Switch LACP Dashboard controls:
Table 20
LACP Dashboard controls
Control
Switch Port
LACP Mode
LACP Adminkey
LACP Operkey
LACP Selected
Port Priority
Attached Aggr
Trunk

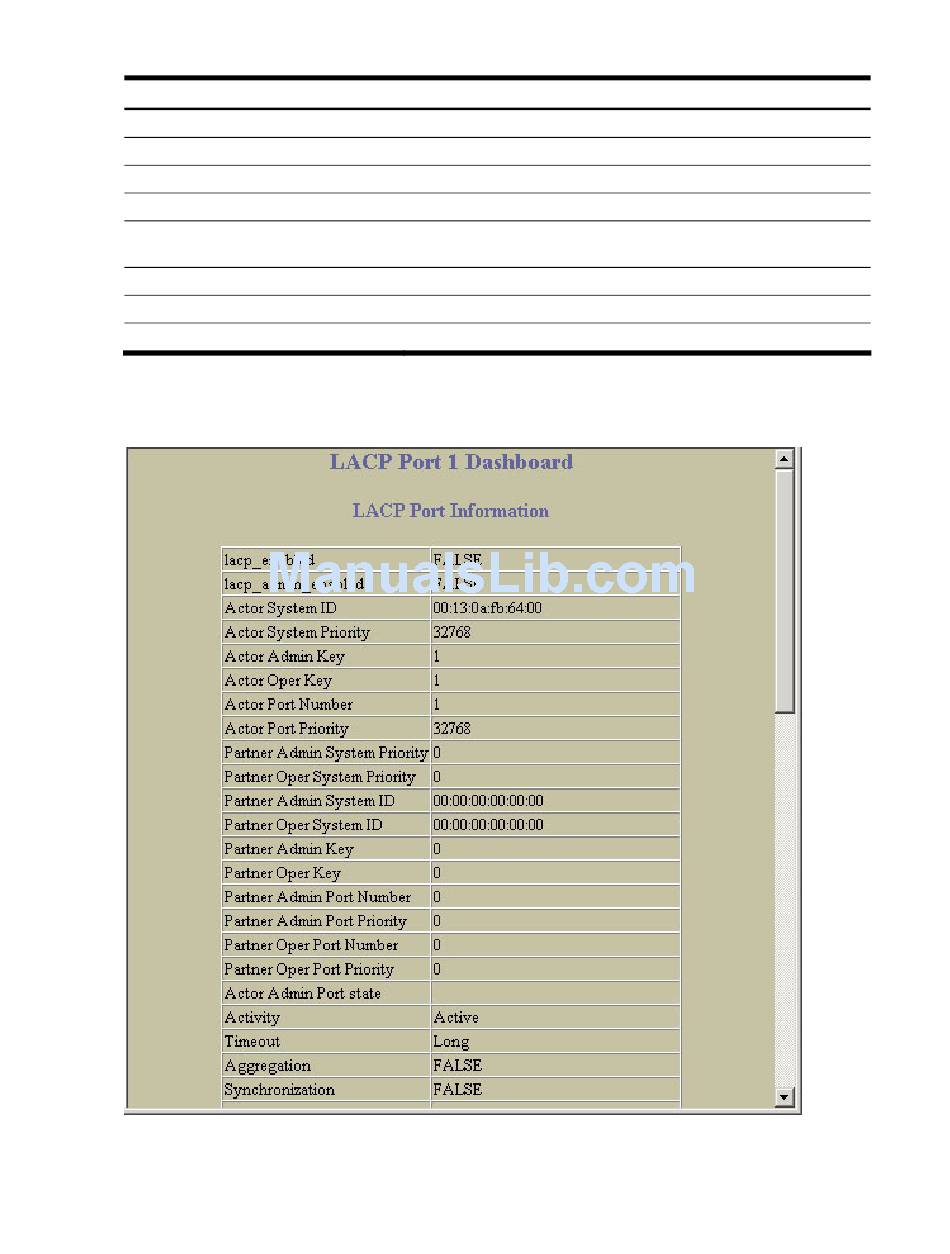

LACP Port Dashboard
To display the following form, go to the Switch LACP Dashboard. Select a port number.
This form summarizes LACP port information.
Description
Displays the port number.
Displays the port's LACP mode (active, passive, or off).
Displays the value of the port's adminkey.
Displays the value of the port's operkey.
Indicates whether the port has been selected to be part of a Link Aggregation
Group.
Shows the value of the port priority.
Displays the aggregator associated with each port.
Displays the value that represents the LACP trunk group number.
