Dashboard
Introduction
The switch BBI can be used to view the present settings and operating status of a variety of switch features. Most
of the same information available through the switch's command line interface is present on the dashboard
forms.
The following provides a basic outline for viewing the dashboard forms. You should first be familiar with
configuration as covered in the HP GbE2c Ethernet Blade Switch for c-Class BladeSystem Command Reference
Guide.
Steps for displaying dashboards
Follow these basic steps for viewing switch dashboard forms.

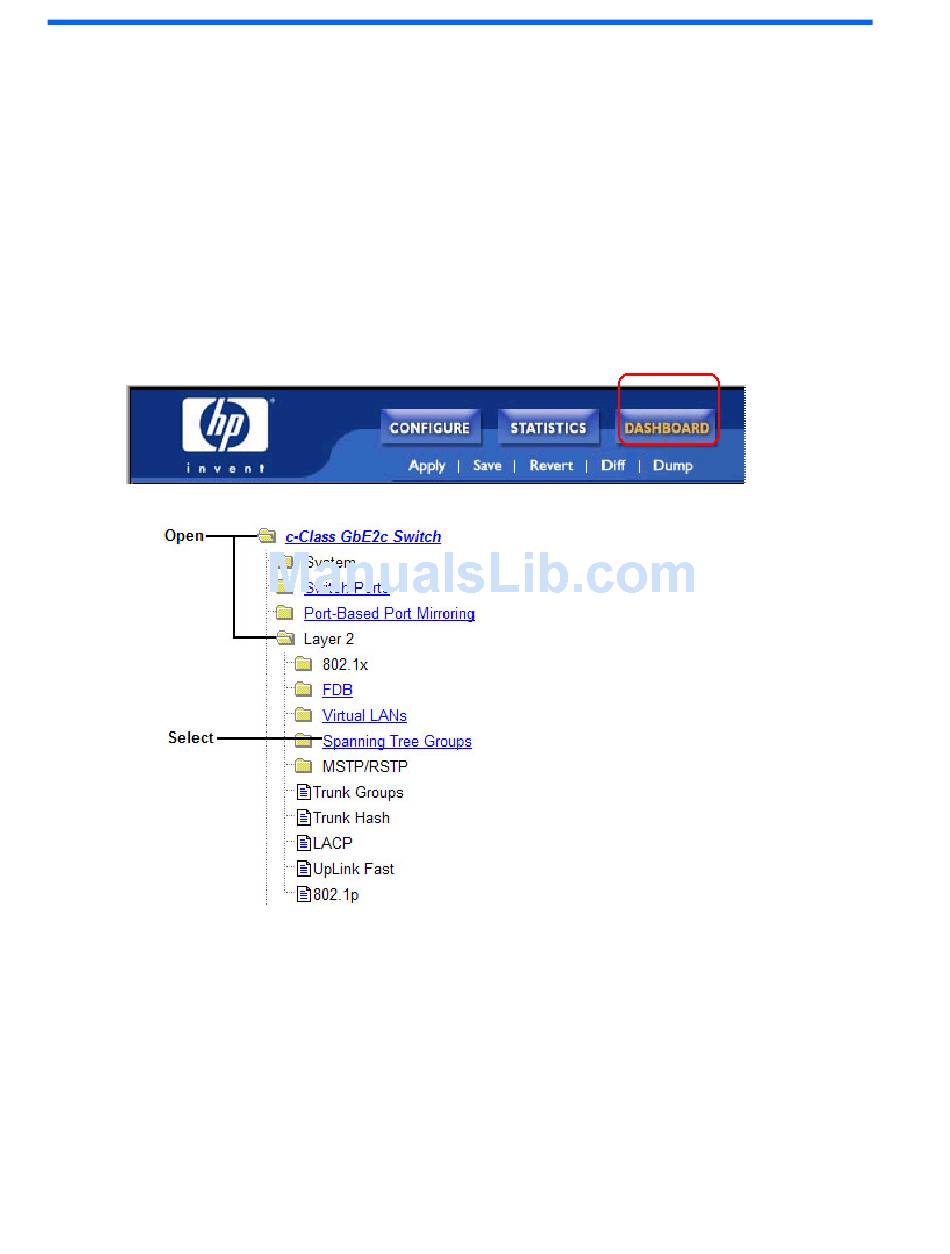

1.
Select the Dashboard context button in the BBI toolbar.
2.
Select a feature icon in the navigation window. For example, select Spanning Tree Groups:
Dashboard 15
