Power Connection Guidelines

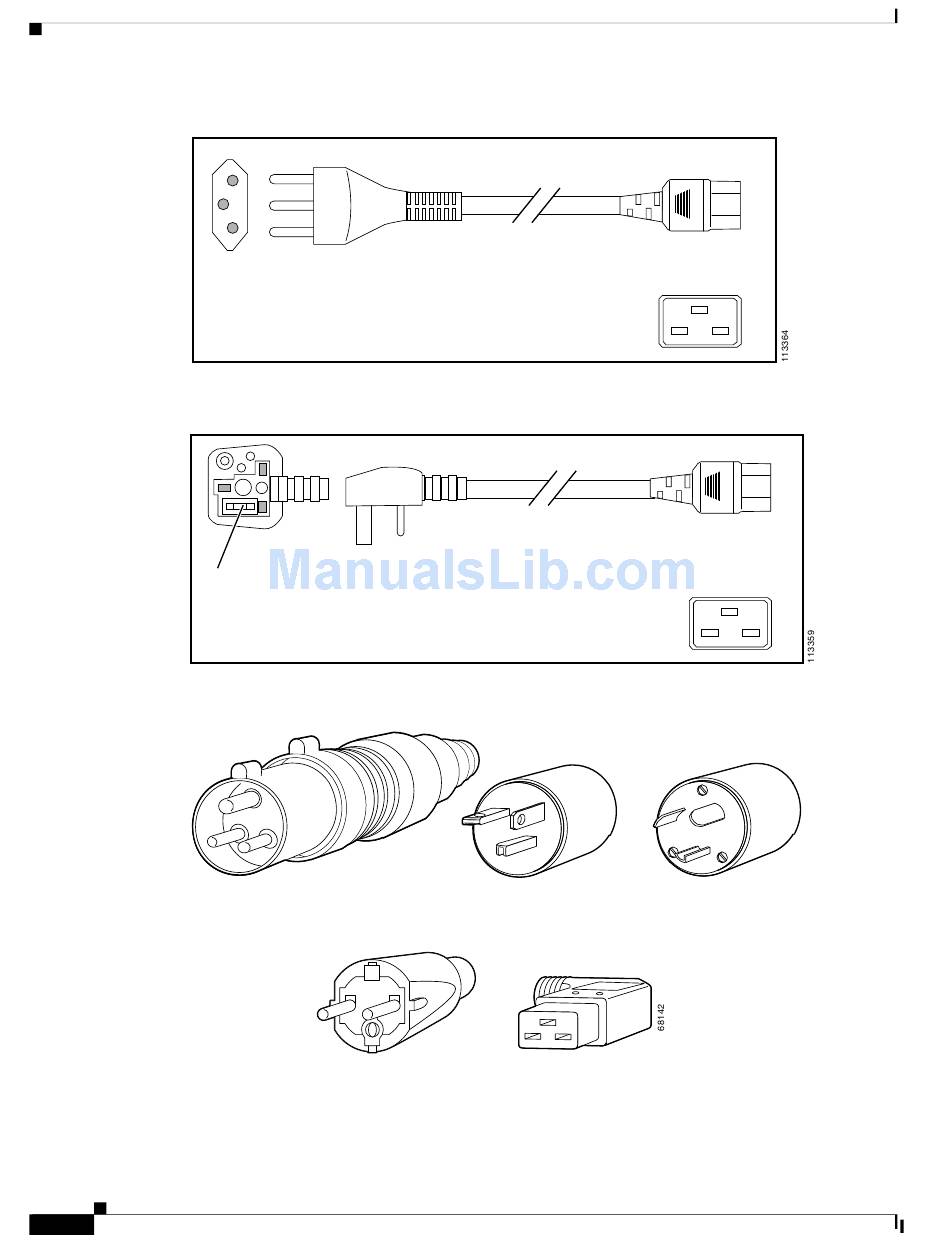

Figure 2-15
Figure 2-16
13A replaceable fuse
Figure 2-17
Cisco 7600 Series Router Installation Guide
2-30
CAB-ACS-16=
Cordset rating: 16 A, 250 V
Plug: SEV 5934-2
Type 23
CAB-7513ACU=
Plug: BS 1363
AC Power Cord Plugs and Appliance Coupler for the 1900 W Power Supply
International
North America (Non-locking)
(1900W power supply)
EN 60309 (16A, 250V)
NEMA 6-20 plug (20A, 250V)
Europe
VIIG plug
CEE (7) VII (16A)
Length: 8 ft 2 in. (2.5 m)
Connector: IEC 60320 C19
Cordset rating: 13 A, 250 V
Length: 14 ft 0 in. (4.26 m)
Connector: IEC 60320 C19
(1900W power supply)
Appliance coupler
C19W coupler
Hot EN60320/C19 (20A)
Chapter 2 Preparing for Installation
North America (Locking)
(1900W power supply)
NEMA L6-20 plug (20A, 250V)
