Chapter 2
Preparing for Installation

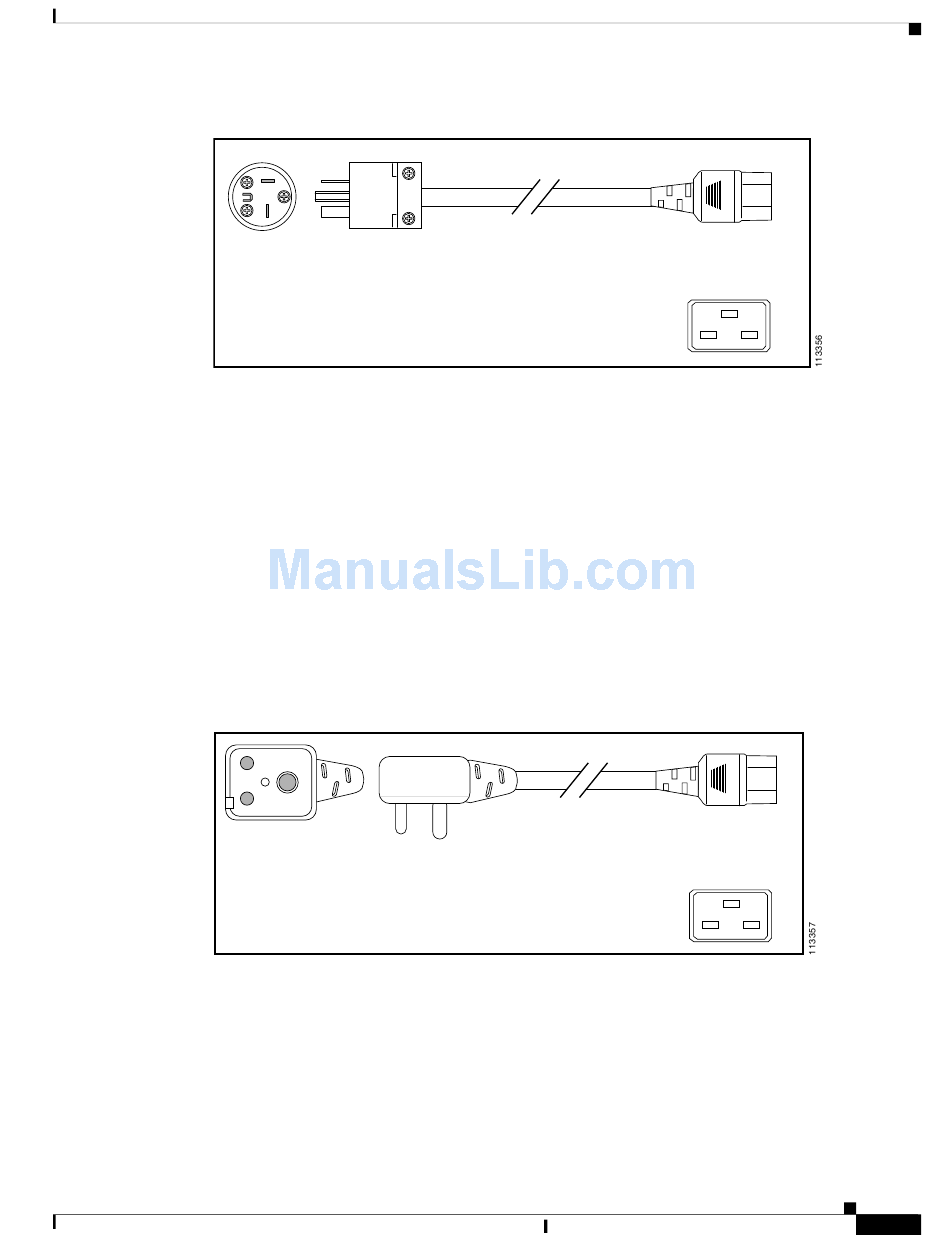

Figure 2-12
Figure 2-13
Figure 2-14
OL-4503-26
CAB-7513AC=
Cordset rating: 20 A, 125 V
Plug: NEMA 5-20
Length: 14 ft 0 in. (4.26 m)
CAB-AC-C6K-TWLK=
CAB-7513ACSA=
Plug: IEC 884
Connector: IEC 60320 C19
Cordset rating: 16 A, 250 V
Length: 14 ft 0 in. (4.26 m)
Connector: IEC 60320 C19
Cisco 7600 Series Router Installation Guide
Power Connection Guidelines
2-29
