Cable Specifications
•

Identifying a Rollover Cable

You can identify a rollover cable by comparing the two ends of the cable. Holding the cables side by
side, with the tab at the back, the wire connected to the pin on the outside of the left plug should be the
same color as the wire connected to the pin on the outside of the right plug. (See
cable was purchased from Cisco Systems, pin 1 will be white on one connector, and pin 8 will be white
on the other. (A rollover cable reverses pins 1 and 8, 2 and 7, 3 and 6, and 4 and 5.)

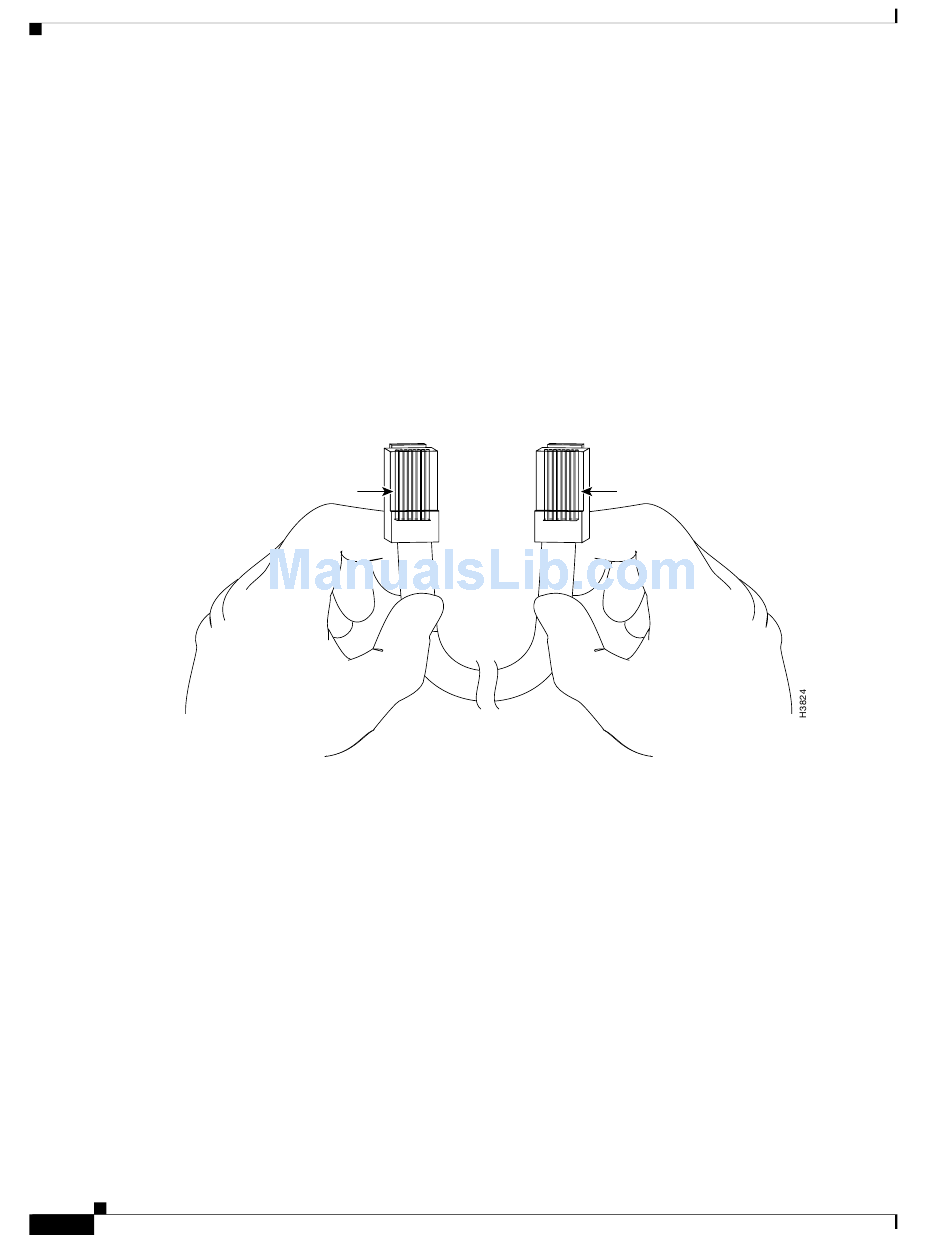

Figure B-8

Console Port Mode 1 Signaling and Pinouts

This section provides the signaling and pinouts for the console port in mode 1 (port mode switch in the
in position).
DB-9 Adapter (for Connecting to a PC)
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-9 female DTE adapter (labeled "Terminal") to
connect the console port to a PC running terminal emulation software.
asynchronous serial console port, the RJ-45-to-RJ-45 rollover cable, and the RJ-45-to-DB-9 female DTE
adapter.
Cisco 7600 Series Router Installation Guide
B-8
Mode 2—Switch in the out position. Use this mode to connect a terminal to the console port using
the Catalyst 5000 family Supervisor Engine III console cable and appropriate adapter for the
terminal connection (cable and adapter are not provided).
See the "Console Port Mode 2 Signaling and Pinouts" section on page
Identifying a Rollover Cable
Pin 1
Appendix B
Pin 1 and pin 8
should be the
same color
Pin 8
Connector and Cable Specifications
B-10.
Figure B-8.) If your
Table B-3 lists the pinouts for the
OL-4503-26
