6.2.2 Inserting and Removing the Tray
Tray Lock Overview
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
1 Limit stop
2 Lock hook
Kopiervorlage Bilderrahmen
3 Guide rail
4 Locking cone
29.11.2024
Kopiervorlagen diverse
Kopiervorlagen diverse
1
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
Kopiervorlagen diverse
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
3
Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
8
5
6
7
8

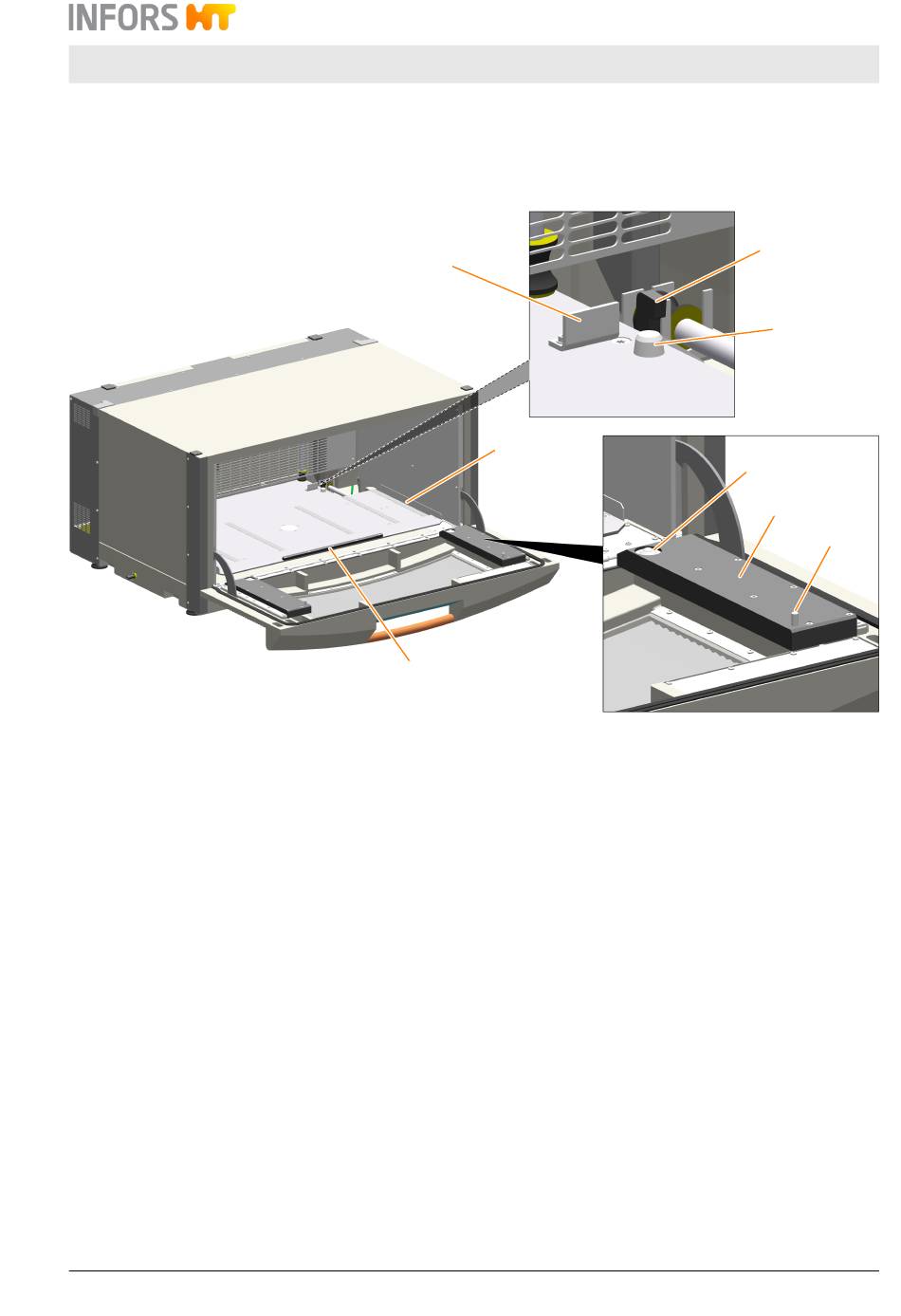

The device is fitted with a tray lock to hold the tray securely in place
on the table. When the door is opened fully, the lock hooks (2) on the
table release the tray. The tray ejectors underneath the table lift the
tray out of the locking cones (4) on the table. The tray is now free and
can be pulled out of the incubation chamber by hand.
The tray is removed from the incubation chamber using slide rails (6)
and the cylindrical ball casters (5) inside them which are located on
the inside of the door. Two screw-mounted pins (7) in the slide rails
limit how far the tray can be pulled out. When pulled out all the way,
the tray lies partially on the door and partially on the table.
