Multitron Standard - Operating manual
Accessories
Page 38 of 104
Kopiervorlagen diverse
1
Kopiervorlage Bilderrahmen
3
Kopiervorlagen diverse

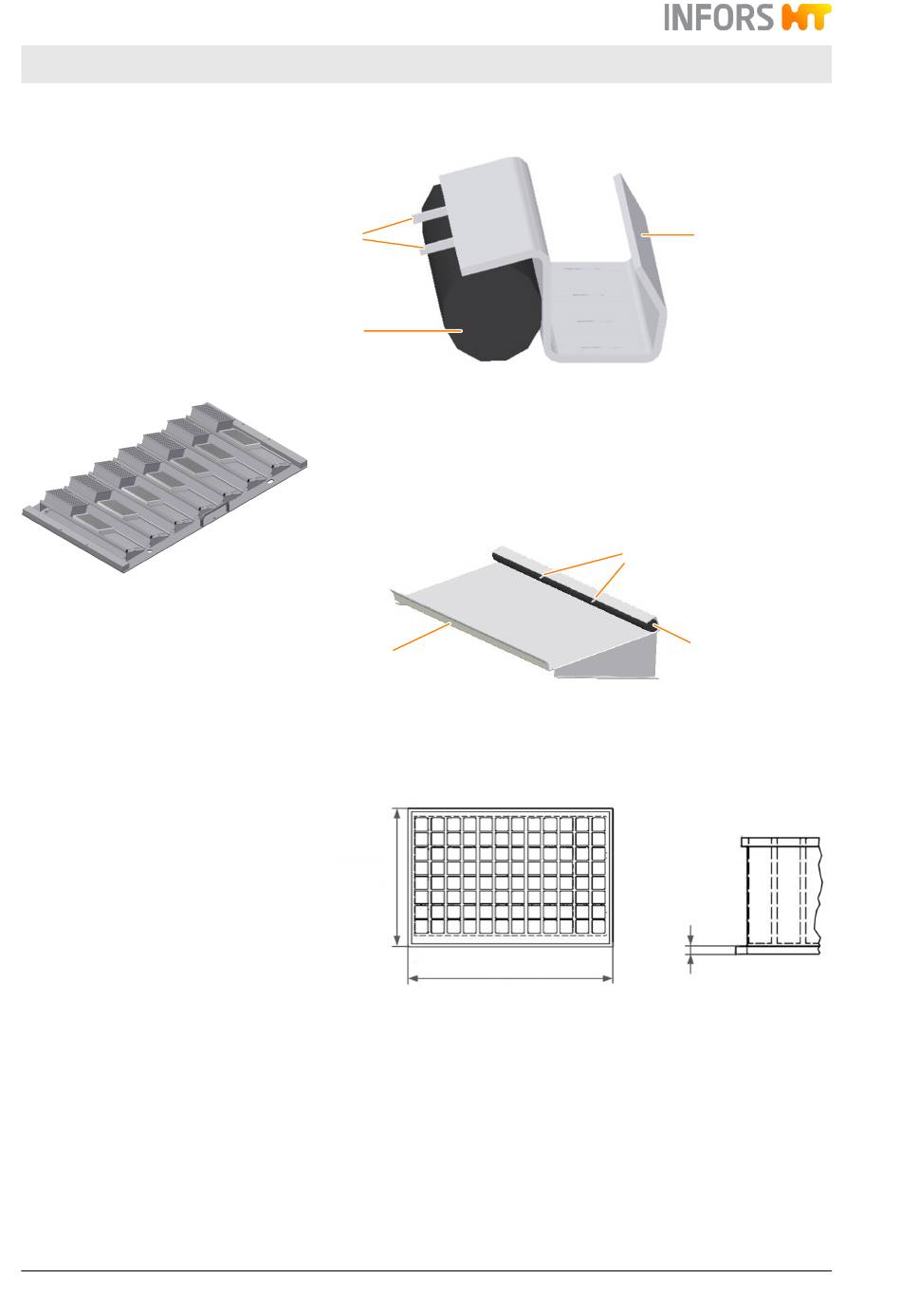

Tray with clamping assemblies tilted at an angle of 20° (angled incu-
bation): The folded clamping assembly is wedge-shaped metal sheet
with two profiles. The lower profile is an angled bar (3). The upper
profile is a U profile into which the cellular rubber string (2) is inserted.
Kopiervorlagen diverse There are two spacers on the upper edge (1) for positioning the micro-
titre plates or deep-well plates.
Kopiervorlage Bilderrahmen
3
The trays with clamping assemblies are designed for microtitre and
Kopiervorlage Bilderrahmen
deep-well plates with dimensions 85.1 mm x 127 mm. To ensure suffi-
cient clamping force can be achieved, plates with a web height of at
least 3 mm must be used.
85,1 mm
1
3 mm
127 mm
2
2
