3 Setup and Function
3.1 Functions
3.1.1 Shaking Function
Mechanics
Kopiervorlage Bilderrahmen
Kopiervorlagen diverse
Kopiervorlage Bilderrahmen
Table
29.11.2024
Kopiervorlagen diverse
Kopiervorlagen diverse
1
Kopiervorlage Bilderrahmen
Kopiervorlage Bilderrahmen
4

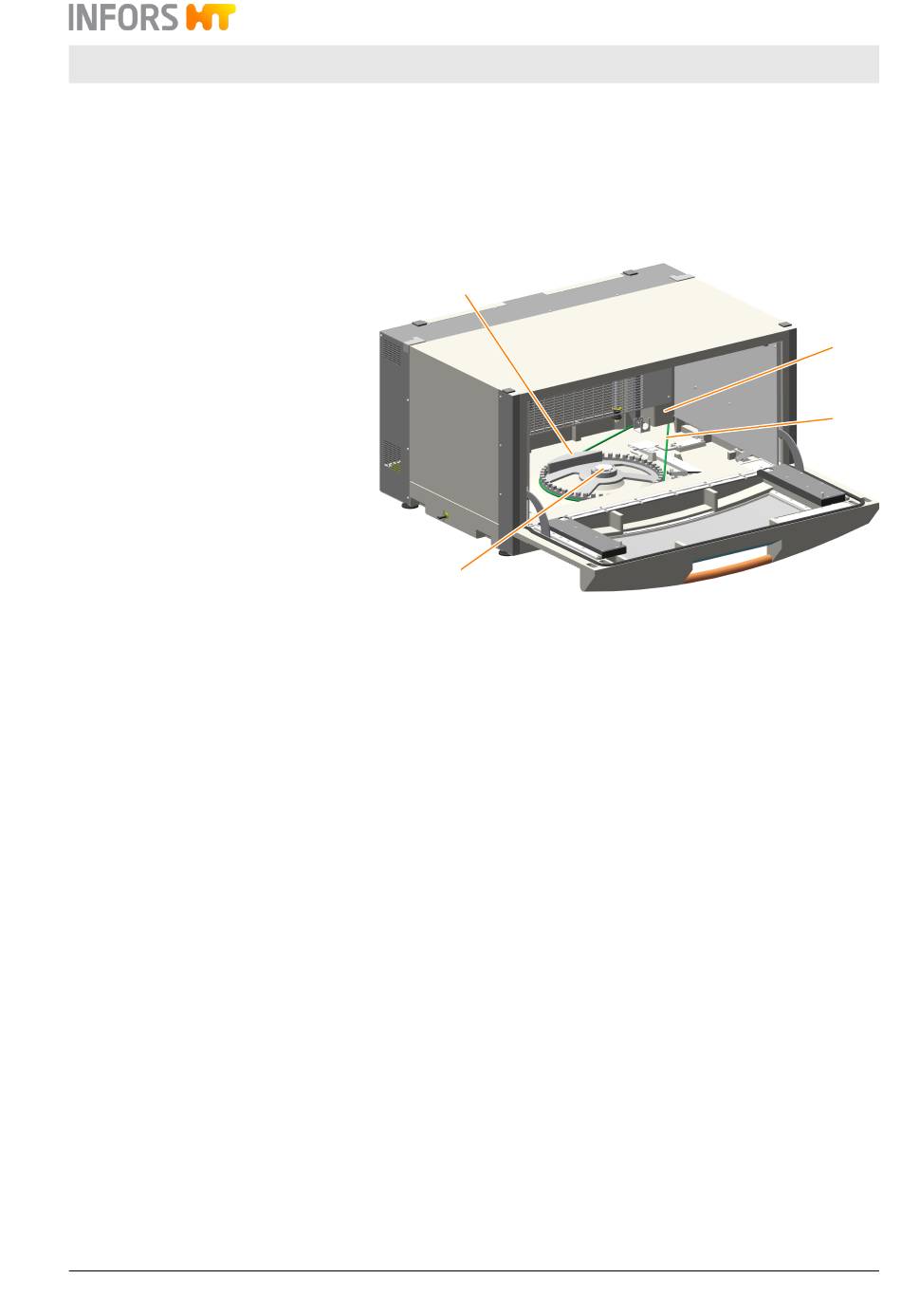

1 Counterweight
2 Electric motor
3 Drive belt
4 Drive hub
The table moves in circles at speeds of 20 to 400 min
by an electric motor (2), which is connected to the device's counter-
weight (1) by a drive belt (3). To prevent injuries and facilitate easy
handling of the cultivation flasks, the drive is switched off automati-
cally as soon as the door is opened.
The counterweight used to balance the mass is fitted under the table.
Depending on the design, the deflection of the circular movement is
either 25 mm or 50 mm. The table moves in counter-clockwise circles.
The table is connected to the drive hub by means of 4 hexalobular
socket screw. The table is used to hold the 85 x 47 cm (type M) tray,
various versions of which are available.
When the base tray requires cleaning, the 4 hexalobular socket screw
can be undone, then the table can be lifted 30° to allow access
(⮫ Chapter 8.2.3 'Cleaning and Disinfecting the Base Tray' on page 82).
Multitron Standard - Operating manual
Setup and Function
. It is driven
-1
2
3
