3-26
Option Installation
3.
Release the two front panel tabs on the lower left side of the front panel.
4.
Disconnect the LED and IR cables on the front panel from the system board.
5.
Pull the left side out enough to clear the power, reset, and suspend buttons. When
the buttons have been cleared, slide the right side of the front panel out from the
system unit.
Identify the slot for the device you plan to install.
6.
Remove the blank panel from the selected slot by pressing the panel tabs from
7.
inside the front panel and pushing the blank panel out (see Figure 3-22).
Store the blank panel in case you choose to remove the device in the future.
Tabs

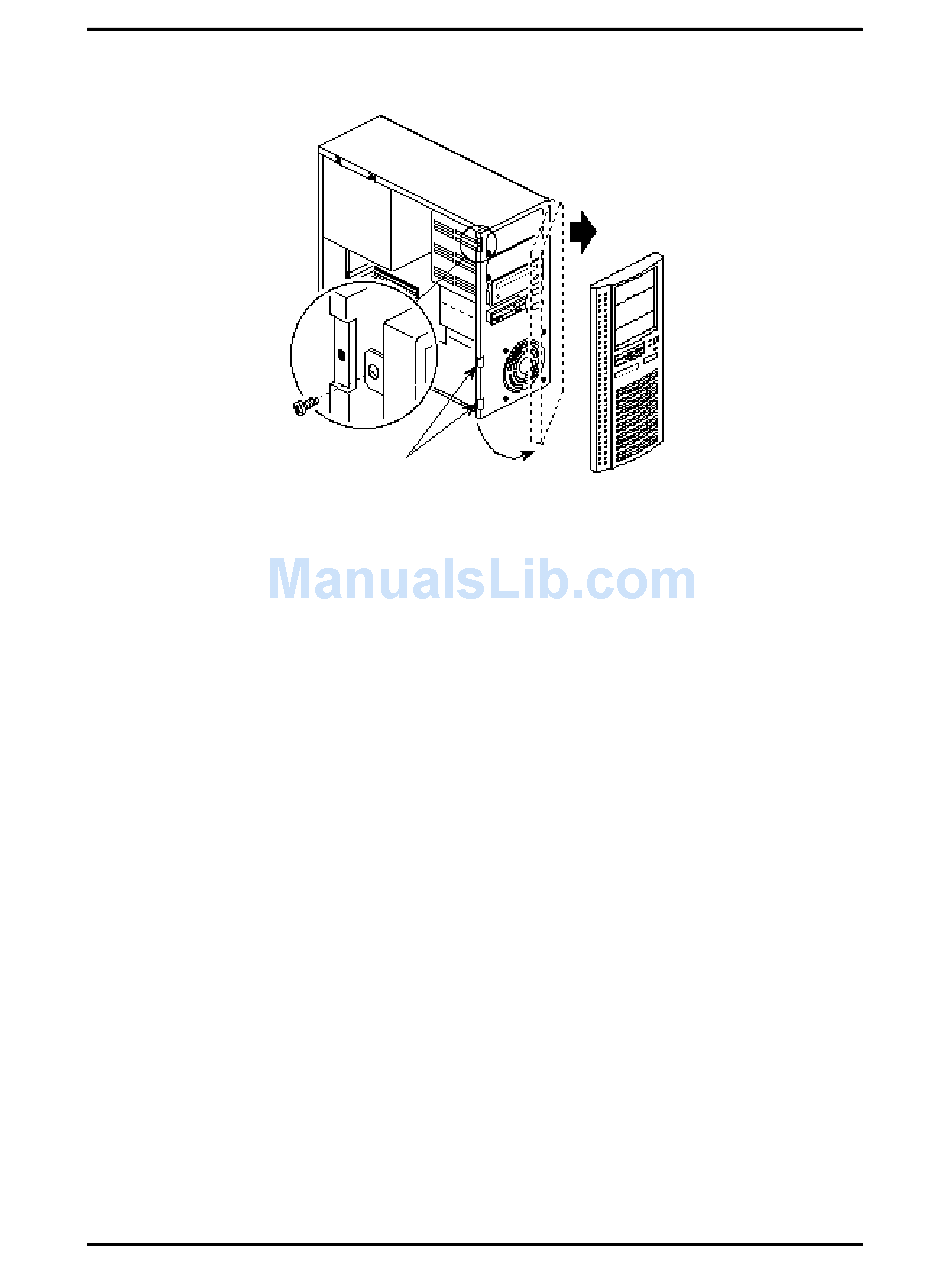

Figure 3-21 Removing the Front Panel
