Serial Devices

Make sure the power to the system unit and serial device are off.
1.
2. Connect one end of the serial cable to one of the two serial ports on the rear of
the computer.
3. Secure the cable with the screws provided.
Connect the other end to the serial device.
4.

SCSI Devices

Connect an external SCSI device to the back of the system unit as follows.
1. Make sure the power to the system unit and SCSI device are off.
2. Connect one end of the SCSI cable to the SCSI ports on the rear of the computer.
3. Secure the cable with the screws provided.
NOTE: Before connecting a serial device to the
system, be sure that you have set up the serial
device correctly. Follow the setup instructions
that come with the option.
Serial
Port 1
Serial
Port 2

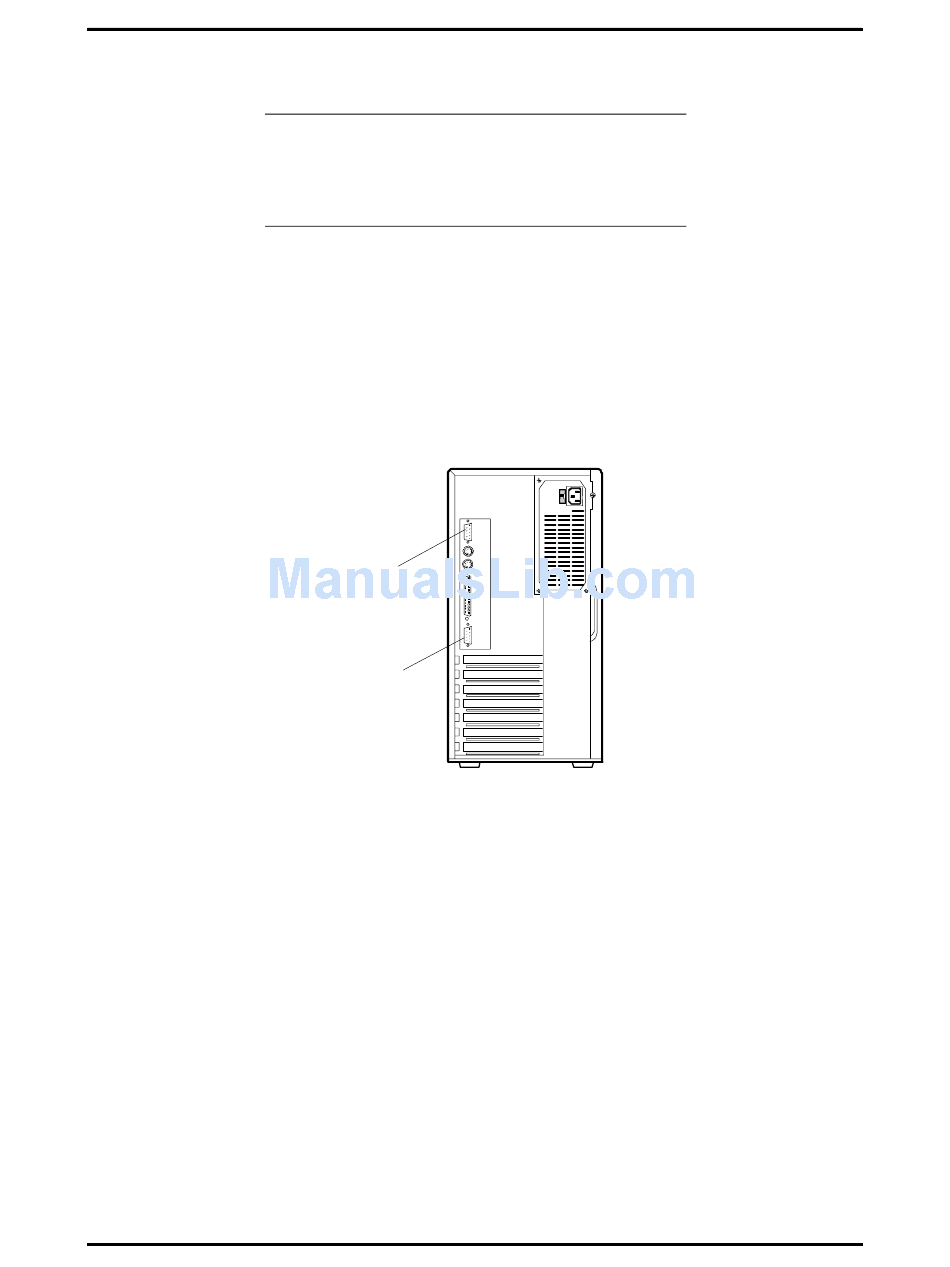

Figure 3-27 Connecting an RS-232C Cable
Option Installation 3-31
