Slot Locations
The system has six expansion board slots:
n
three PCI slots
n
two ISA slots
n
one shared PCI/ISA slot.
PCI expansion boards run at the system's processor speed. The PCI bus handles 32 bits of
data at a time, being wider as well as faster than the standard ISA bus. PCI boards can send
and receive data much faster which boosts system performance.
ISA expansion slots support industry-standard 8-bit or 16-bit expansion boards. The shared
PCI/ISA slot can be used either for a PCI or an ISA expansion board.
Never Used
SCSI Board
Slot
Video Board
Slot
Network Board
Slot *
Sound Board
Slot
* In network configurations. This is a shared ISA/PCI slot.
Expansion Board Installation
Remove the system unit side panel (see "Removing the Side Panel" in this
1.
section).
2.
Follow any preinstallation instructions that comes with the expansion board (such
as setting switches or jumpers on the board).

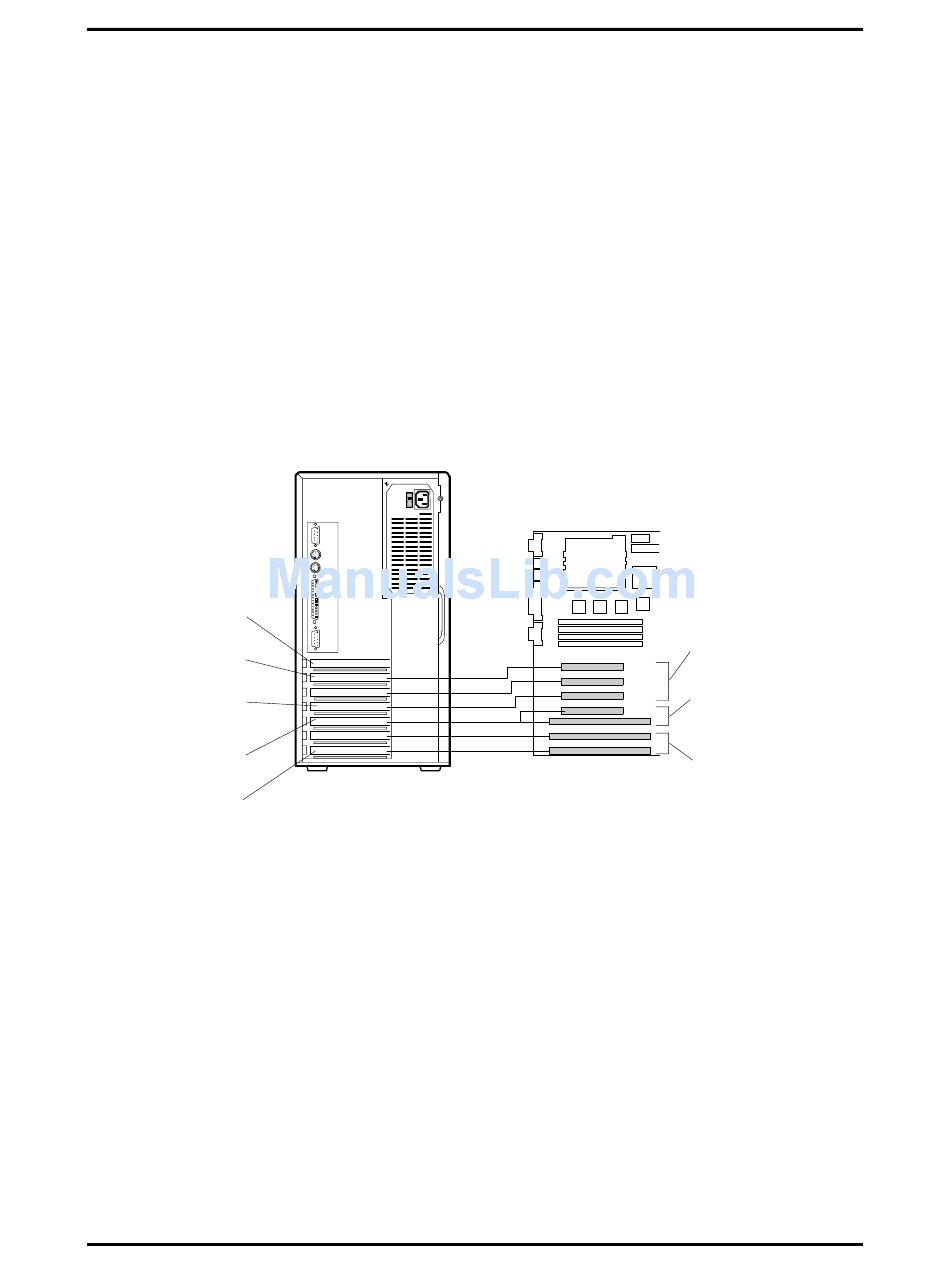

Figure 3-3 Expansion Slots Locations
Option Installation
PCI Slots
Shared
ISA/PCI Slot
ISA Slots
3-7
