8. Remove the metal slot cover from the selected slot by releasing the slot cover tab
on the front of the system.
Store the slot cover in case you choose to remove the device in the future.
Continue to "Installing the 5 1/4-Inch Device."
9.

Installing the 5 1/4-Inch Device

Use the following procedure to install an accessible device into the 5 1/4-inch device cage.
1. Remove the front panel (see "Removing the Front Panel").
Follow the preinstallation instructions that come with the device, such as setting
2.
jumpers and switches.
See "Device Preparation" for device preparation information.
3. Locate the device rails and ground clips that ship with the system. Attach the rails
and ground clips to the sides of the device with the four screws that come with
the device. Install the ground clip under the front rail screws (see Figure 3-23).
Slot Cover
Slot Cover
Tab

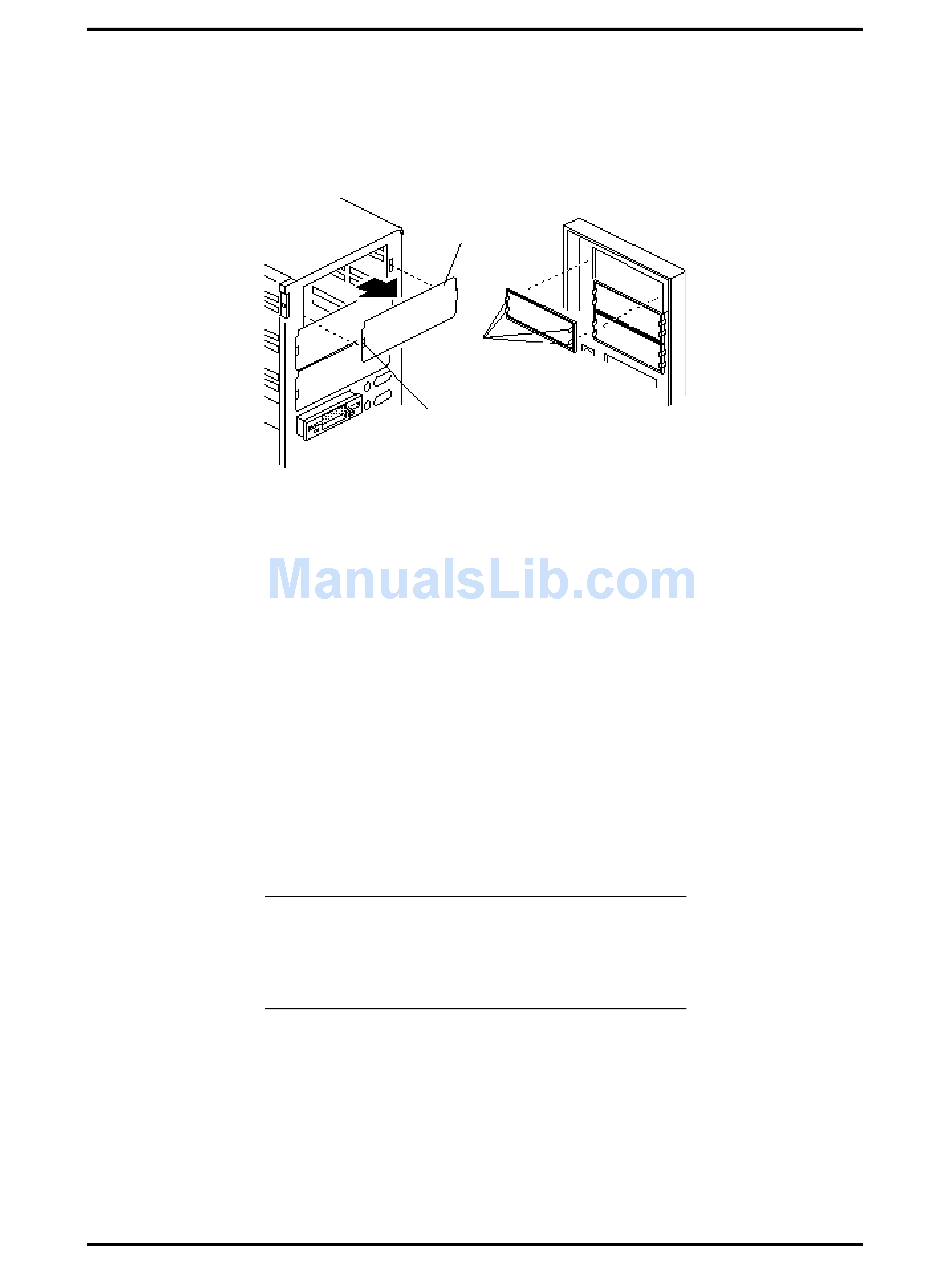

Figure 3-22 Removing the Blank Panels
NOTE: If the 5 1/4-inch device comes with
drive rails, do not attach them. Remove any rails
already attached. See the documentation that
comes with the device.
Blank Panel
Tabs
Option Installation 3-27
