Voltage Selector Switch; Peripheral Connections - NEC PowerMate Pro150 Series Service Manual

2-2 Setup and Operation
1. Set the voltage selector switch to 115V (U.S. and Canada) or 230V and plug the
power cord into the power socket (see Figure 2-1).
Connect the keyboard, mouse, and printer cables to the back of the system (see
2.
Figure 2-2).
NOTE: The correct AC input voltage must be
properly set. Select the appropriate voltage with
the voltage selector switch located at the rear of
the system.

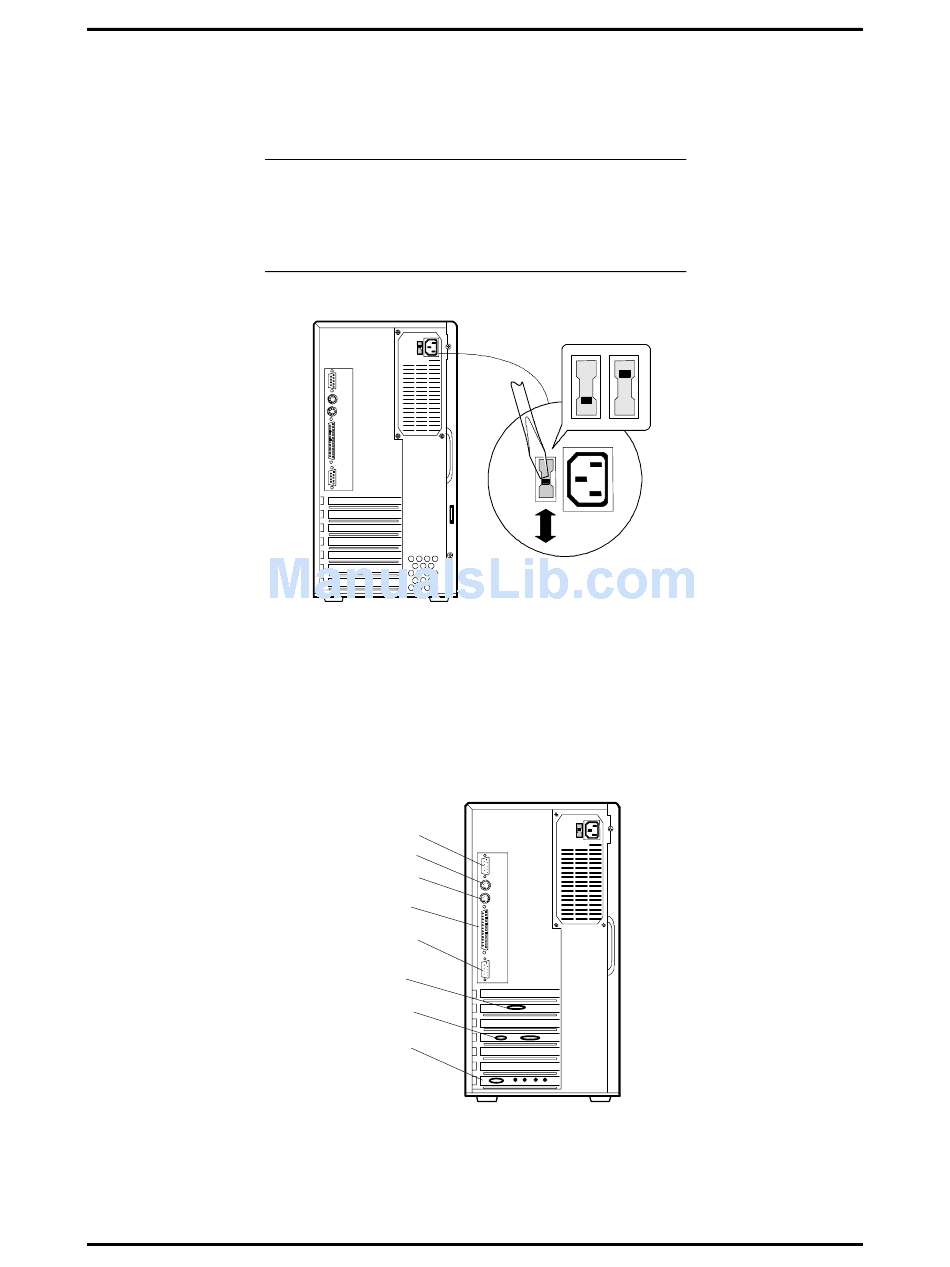

Figure 2-1 Voltage Selector Switch
Serial Port 1
Keyboard/
Mouse Ports
Printer Port
Serial Port 2
SCSI
Connector
VGA Monitor
Connector
Audio
Connectors
Figure 2-2 Peripheral Connections
115
230
