Connect the drive cables.
7.
8.
Replace the 3 1/2-inch drive bracket (see "Replacing the 3 1/2-Inch Drive
Bracket").
Removing the Front Panel
Remove the front panel only if installing a 5 1/4-inch device. The front panel does not need
to be removed if installing a 3 1/2-inch hard disk drive.
If installing a 3 1/2-inch hard disk drive, see "Installing the 3 1/2-Inch Drive."
1.
Remove the system unit cover as previously described.
2.
Remove the front panel by releasing the four tabs from the back of the front panel
(see Figure 3-22).

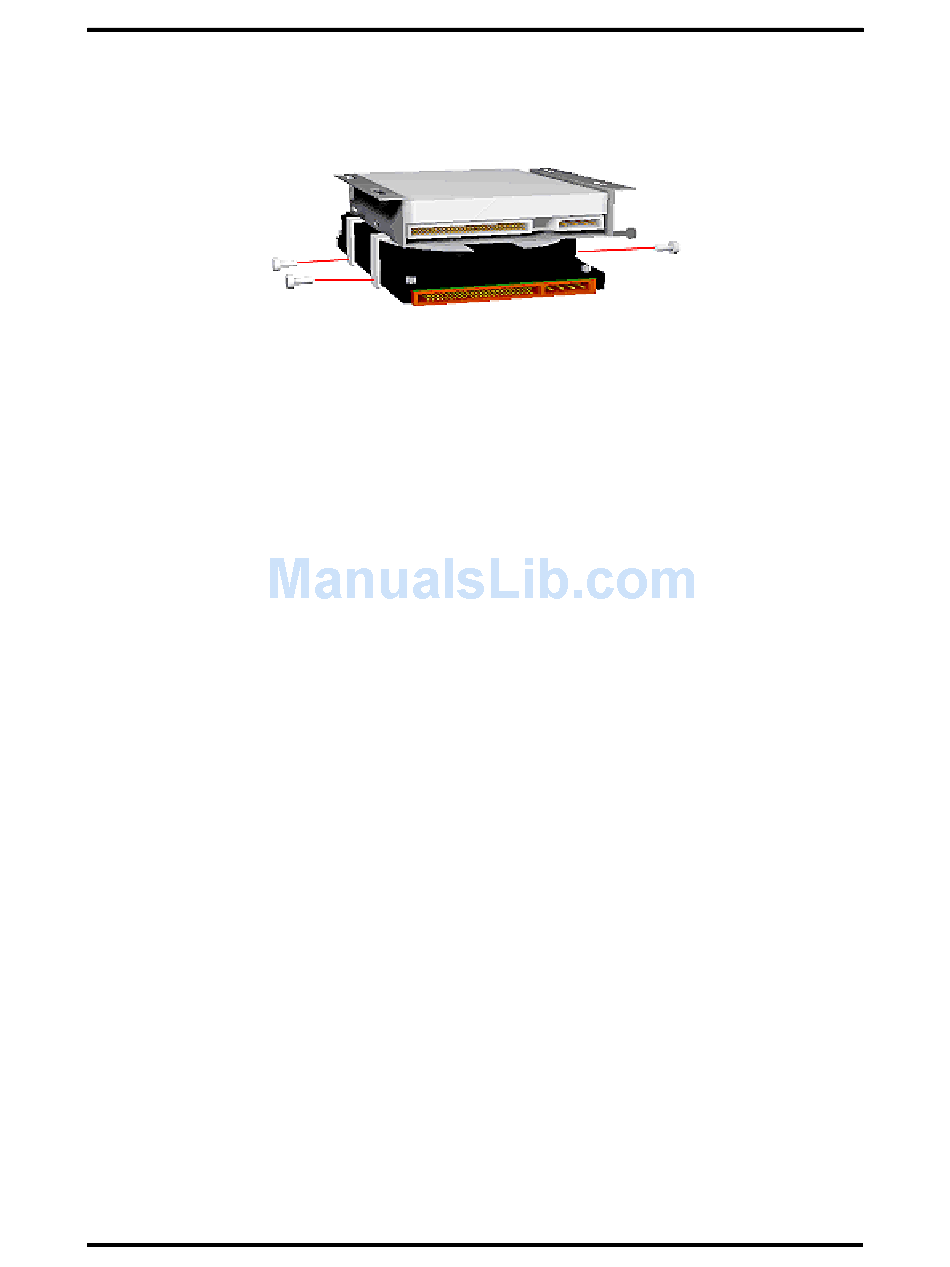

Figure 3-21 Securing a 3 1/2-Inch Drive
Option Installation
3-23
