Removing The Front Panel - NEC POWERMATE VE - SERVICE MANUAL 05-1996 Service Manual

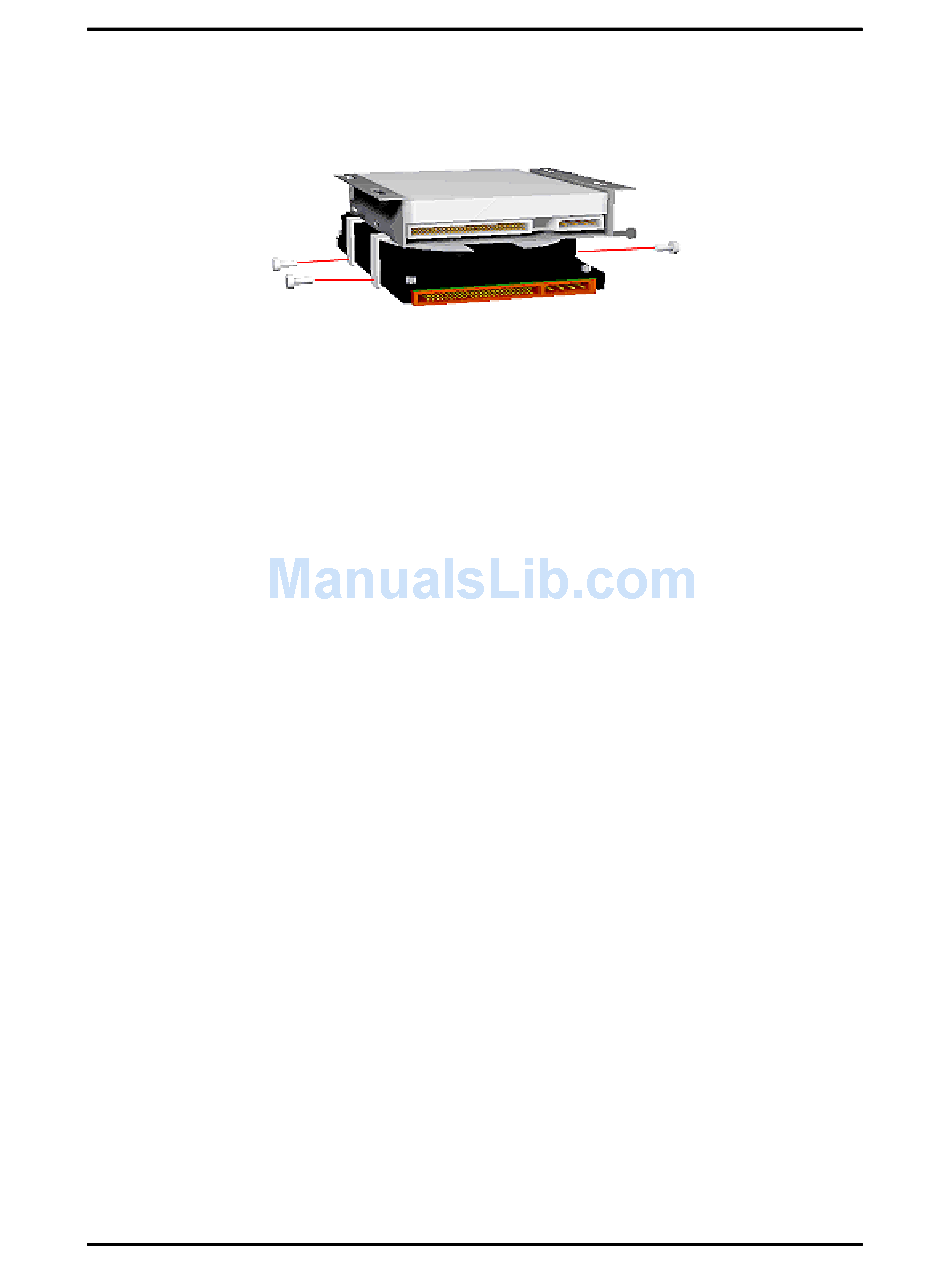

Figure Section 3-29 Securing a 3 1/2-Inch Drive
Connect the drive cables.
7.
Replace the 3 1/2-inch drive bracket (see "Replacing the 3 1/2-Inch Drive
8.
Bracket").

Removing the Front Panel

Remove the front panel only if installing a 5 1/4-inch device. The front panel does not need
to be removed if installing a 3 1/2-inch hard disk drive.
If installing a 3 1/2-inch hard disk drive, see "Installing the 3 1/2-Inch Drive."
1. Remove the system unit cover as previously described.
2. Remove the front panel by releasing the four tabs from the back of the front panel
(see Figure Section 3-31).
Option Installation 3-25
