POWER SUPPLY CONNECTOR

The following figure shows the power connector on the system board. Table A-5 provides
the pin assignments.
Pin
1
2
3
4
5
6
7
8
9
10

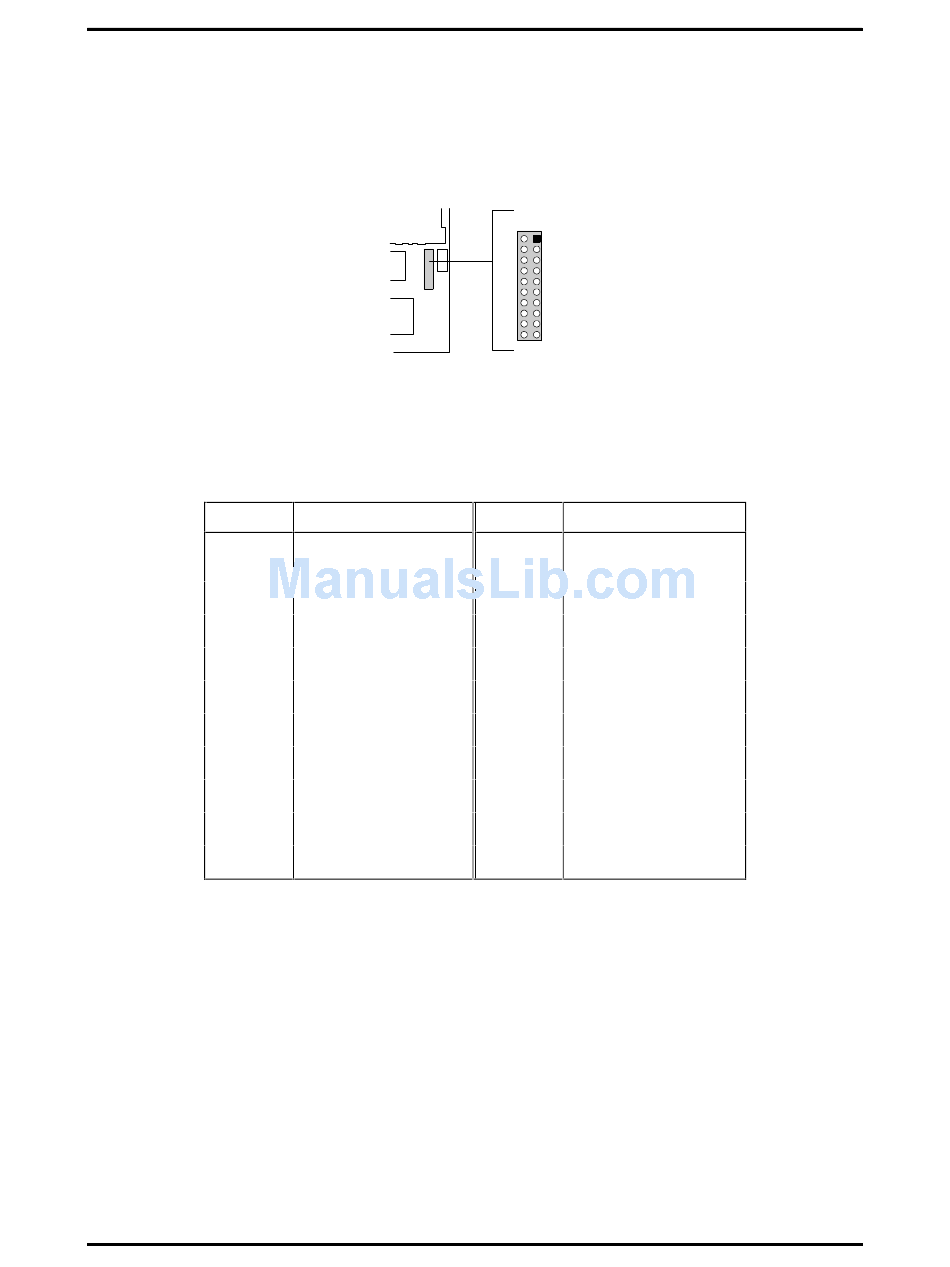

Figure A-4 Power Connector
Table A-5 Power Connector Pin Assignments
Signal Name
+3.3Vdc
+3.3Vdc
Ground
+5Vdc
Ground
+5Vdc
Ground
Power Good
Standby Voltage
+12Vdc
Connector Pin Assignments
J19
11
1
20
10
Pin
Signal Name
11
+3.3Vdc
12
-12Vdc
13
Ground
14
CD Remote Enable
15
Ground
16
Ground
17
Ground
18
+5Vdc
19
+5Vdc
20
+5Vdc
A-5
