3-14 Option Installation

Processor Installation

Install the processor into the system board's processor socket as follows.
Remove the processor currently in the system (see the previous procedure
1.
"Processor Removal").
Align the notched corner of the processor with the alignment corner in the socket
2.
and insert the processor.
Swing the lever down to lock the processor into the socket.
3.
Check to see if the newly installed processor requires the switches on the system
4.
board to be changed (see Appendix B, "System Board Settings").
5. Replace the system unit side panel (see "Replacing the Side Panel" earlier in this
section).
CAUTION: Before picking up the processor,
reduce static discharge by touching the metal
frame of the system unit.

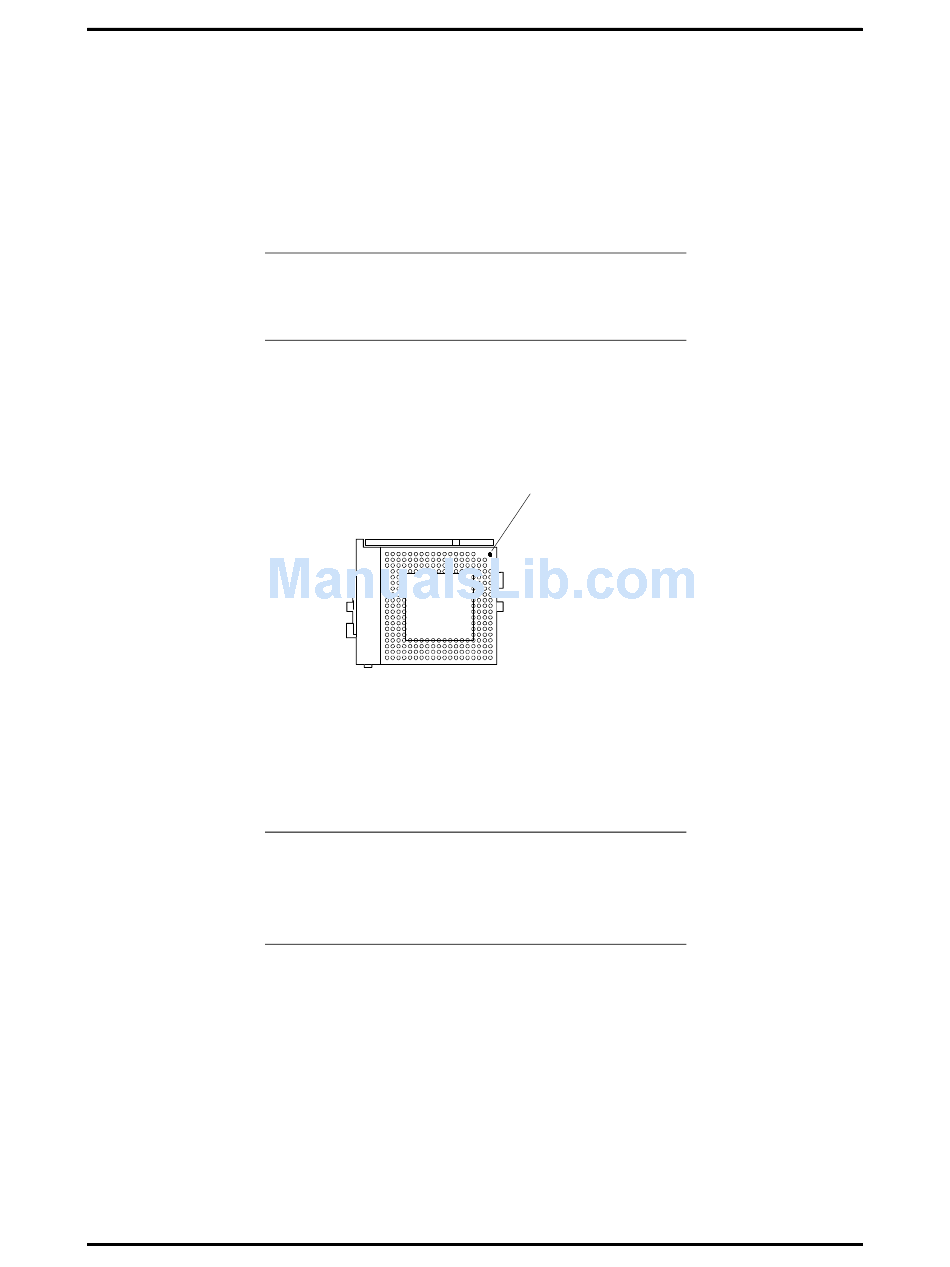

Figure 3-9 Aligning the Processor
CAUTION: Remember to either reattach the
heatsink used with the old processor or to install
any new heatsink required for the upgrade
processor.
Alignment Corner
