Connections Tab

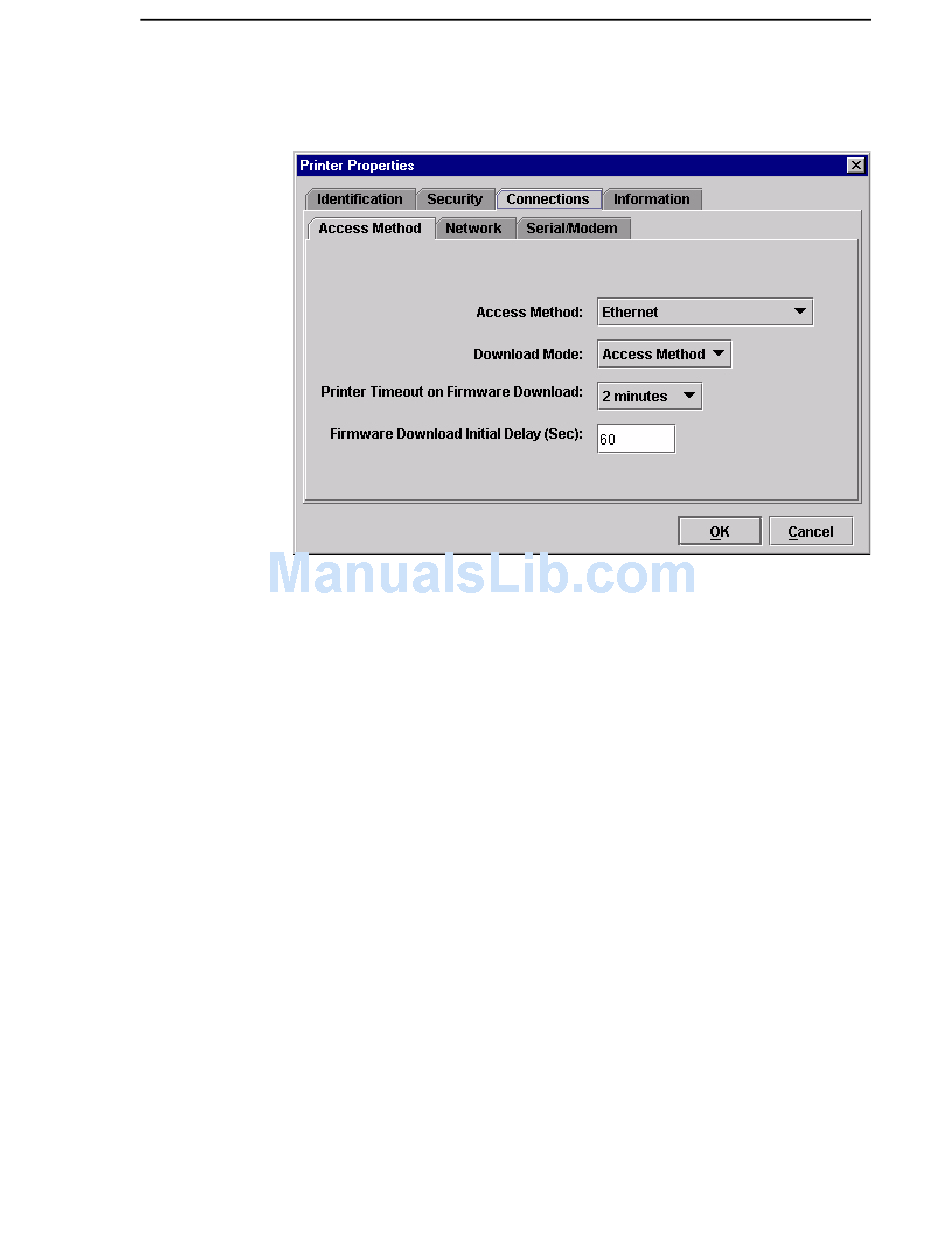

Figure 47. Printer Properties:
Connections Tab – Access Method Sub-Tab
The Connections tab contains three sub-tabs: Access Method, Network, and
Serial/Modem.
Access Method Sub-Tab
Access Method: Identifies how PNE accesses the printer. Refer to the
Network Interface Card User's Manual to set up the NIC for your printer.
Ethernet: To connect the host computer to the printer via the NIC.
•
Network (TCP): To connect the host computer to the printer via a
•
network interface.
Printer Serial Port (Direct): To connect the host computer to the
•
printer directly via the serial port.
•
Printer Debug Port (Direct): To connect the host computer to the
printer directly via the debug port.
•
Printer Serial Port (Modem): To connect the host computer to the
printer via a modem and the serial port.
•
Printer Debug Port (Modem): To connect the host computer to the
printer via a modem and the debug port.
Download Mode: Identifies how PNE downloads files and configurations to
the printer. Access Method is the only option available.
Printer Timeout on Firmware Download: Specifies the number of minutes
the printer waits for data while downloading a file from the host computer. If a
stall lasts for more than the specified time, the printer times out and the
Defining Printer Properties
63
