Chapter 5
Patterns / Variables
Edit: Select an item in the Pattern Character List, and click Edit to edit it.
NOTE: If you select more than one item, you can only to edit the first item.
Remove: Select one or more items in the Pattern Character List, and click
Remove to remove them from the list.
IMPORTANT Removing pattern characters invalidates entries that use the pattern
characters.

Pattern Tab

Use the Pattern tab to add, remove, and edit new and existing patterns.
Name: The name of the pattern. The name must be unique for this type of
datastream adapter object. This name appears in pop-up menus when you
insert and use patterns.
Pattern: To enter the pattern in a way similar to defining the input of a CST
entry (see "Input Field" on page 151). If you type a character that is defined as
a pattern character (see "Pattern Character Tab" on page 160), the default
attribute will be Pattern Character: it will display over a light green background
with the mnemonic pch. To use the character as a literal, right-click the
character and select the Match attribute.
162

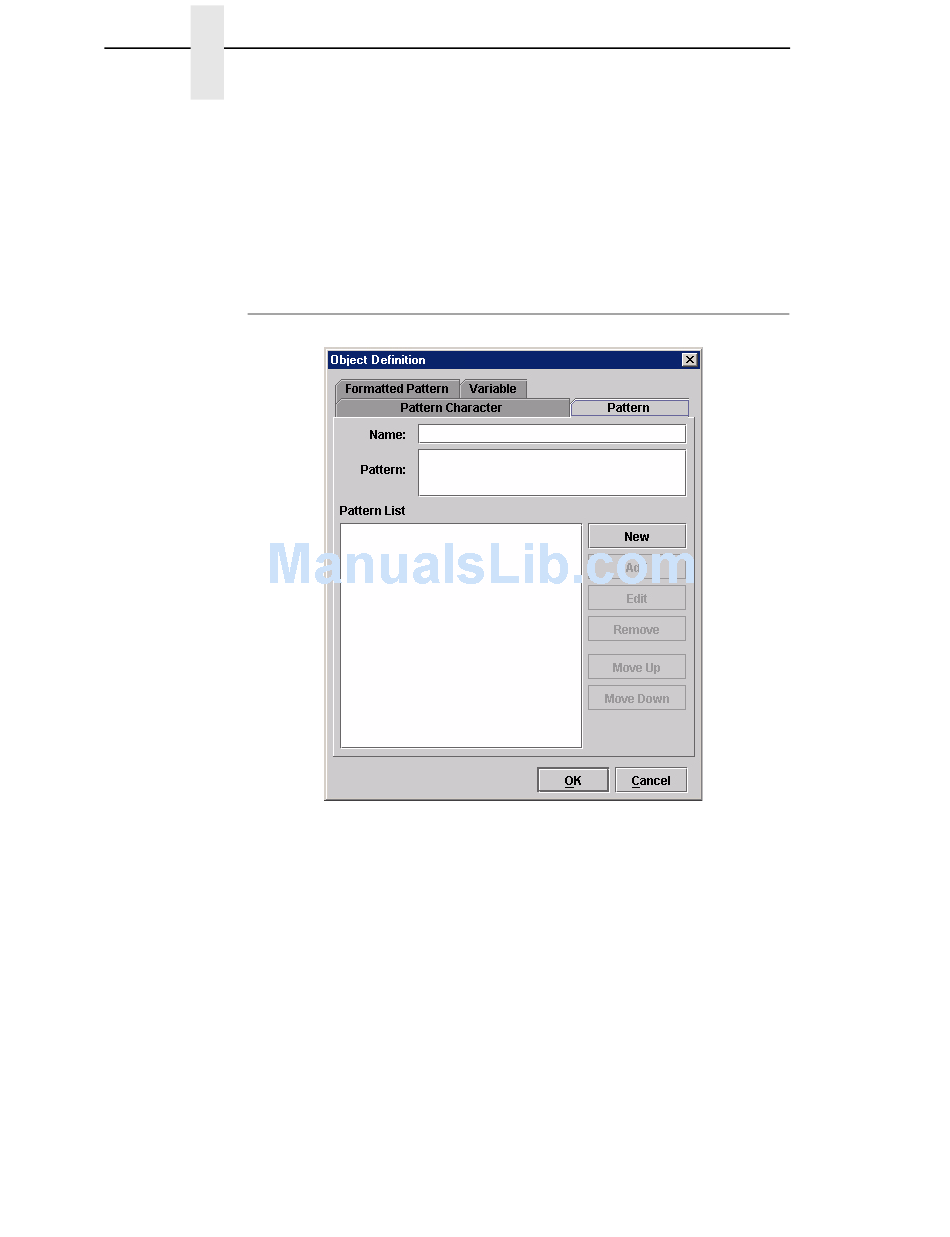

Figure 137. Pattern Tab
