Next to the data fields are status reports and information sent to the host if
there is an error. The six reports listed in Table 13 need to be generated.
Each report only has a single section that may have the same name as the
report.
Table 13. Report Names, Sections, and Content
Report Name
pin_empty
pin_empty
one_pin
pin_1
two_pin
pin_2
pin_accepted
pin_ok
incorrect_pin
pin_error
locked
locked
The PIN number application is described by reviewing each of the mapping
tables and explaining each entry in that table.
Tables

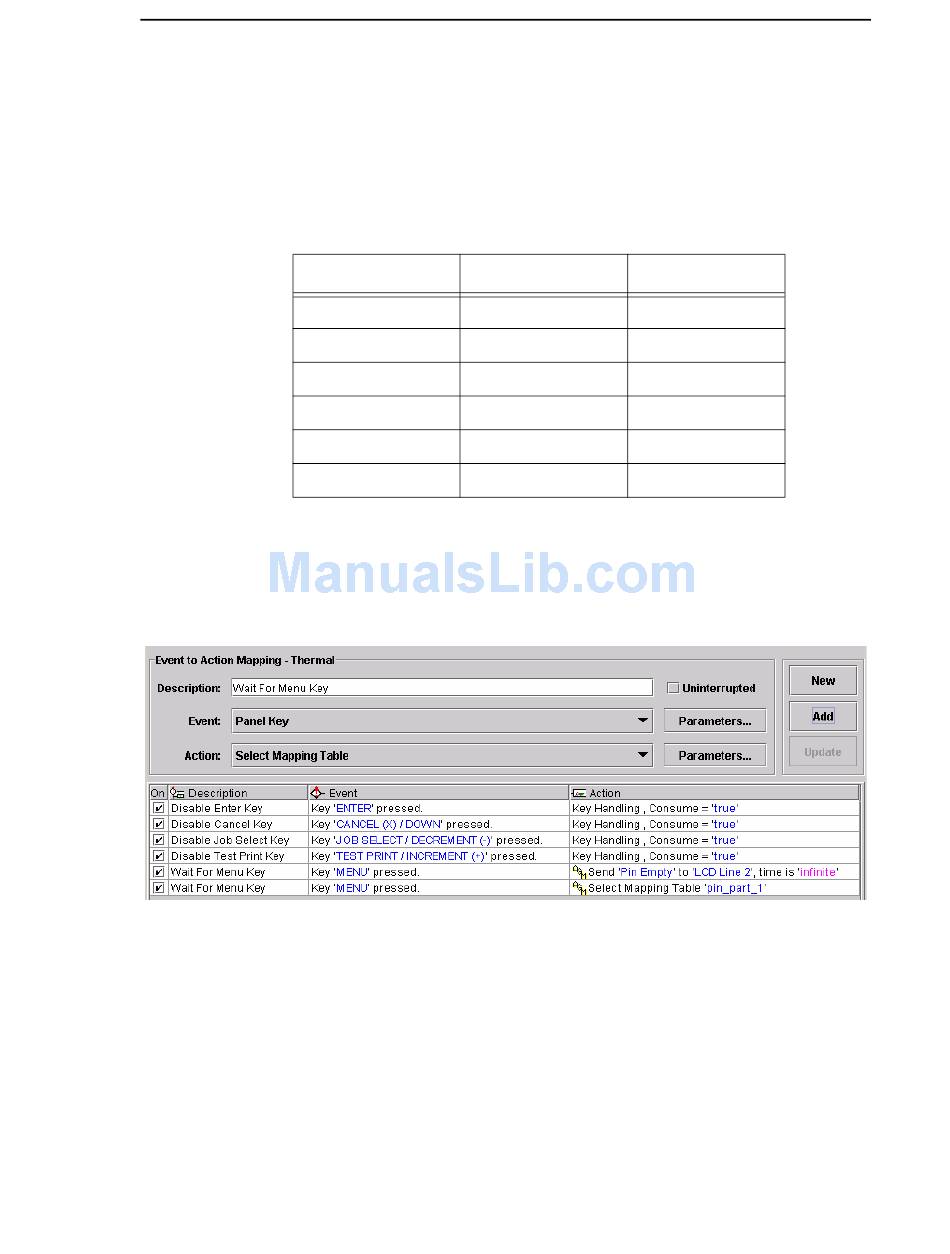

Figure 221. Power_On Mapping Table
Table 13 does not show all entries in a power-on table, just those that are
important for the PIN number application. The first four entries disable the
important keys; the action that normally would result from pressing the key will
not execute. The Pause and Feed key are left unchanged but as soon as the
menu key is pressed the specified actions execute. Since the first four keys
specified are disabled, they are ignored. Next the pin_empty message
displays in Line 2 of the LCD then the pin_part_1 mapping table is selected.
Pin Code Protected Printer
Section Name
PINumber:---
PINumber:*--
PInumber:**-
PIN accepted
PIN incorrect
*Printer Locked*
