Chapter 6
Overview
When you select File GPIO Configuration the GPIO Configuration dialog
box opens. This allows you to define the GPIO properties and power-up
settings.

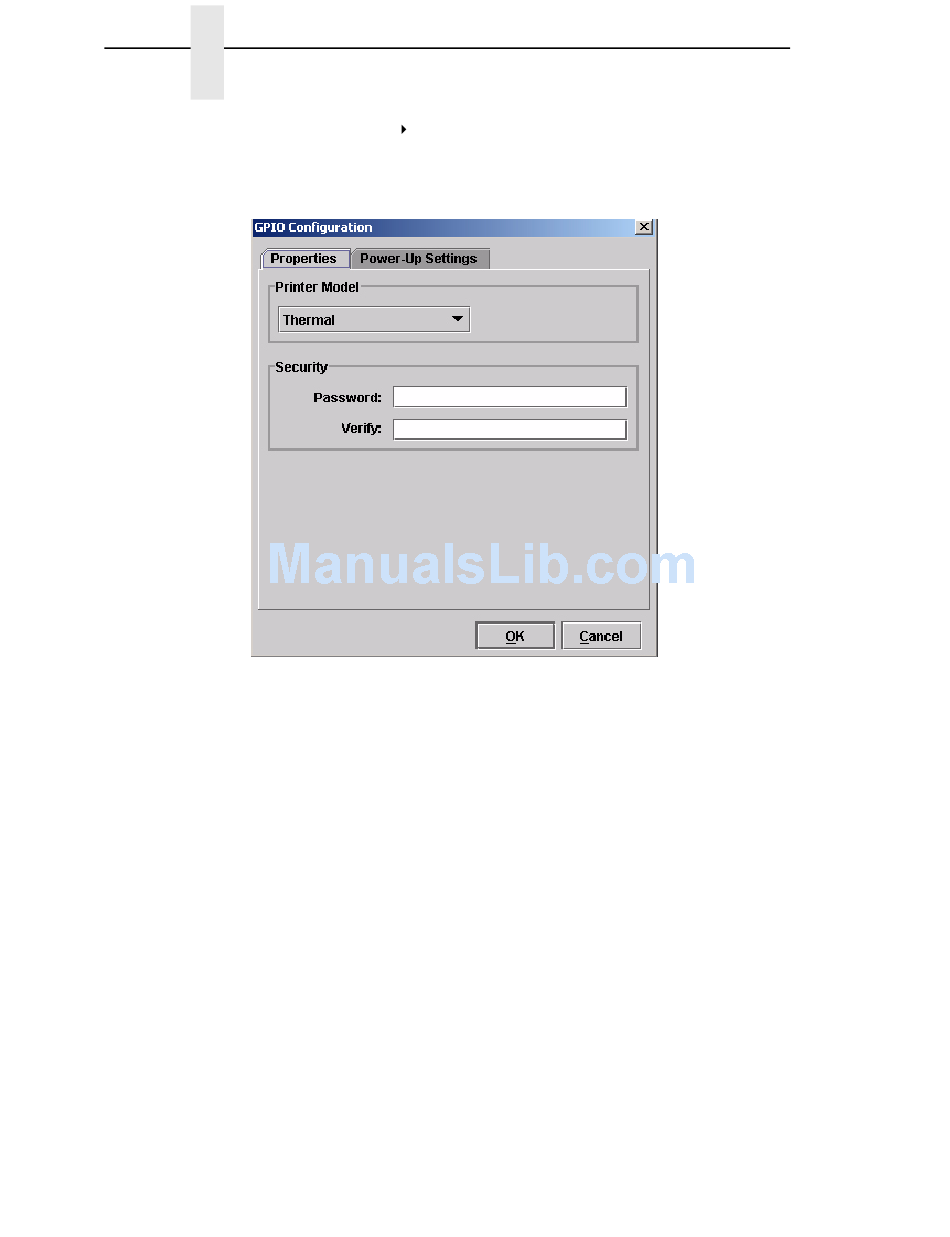

Figure 170. The GPIO Configuration Dialog Box
The Properties tab allows you to select the type of printer, either Thermal or
Impact, for which the mapping table will be designed. For security, the
password field allows you to password protect a mapping table.
NOTE: Password protected files can be uploaded to the GPIO manager but
198
cannot be edited or downloaded to a printer without the password.
