Table 11. Operator Data Field Setting
Operator
D = D | S
D = D & S
D = D ^ S
D = D &~ S
D = ~ S
D = D >> S
D = D << S
First specify the data field itself, in this case a single (U16 Forms Count). If
there are numerous data fields, select the one in which the action should
apply. Next we need to set the operators to indicate the event we want to
happen to this data field. The Source field sets the value in which we want the
data field count to decrement by.
NOTE: When it is necessary to check/validate the value of a data field on a
certain event, the user has to map a "Data Field" action to the event
and check the "Evaluate" option. This will generate a "Data Field
Changed" event similar to when the data field actually changes.
For this example, use D = D - S (Figure 196) which results in the mapping
table entry as seen in Figure 197.

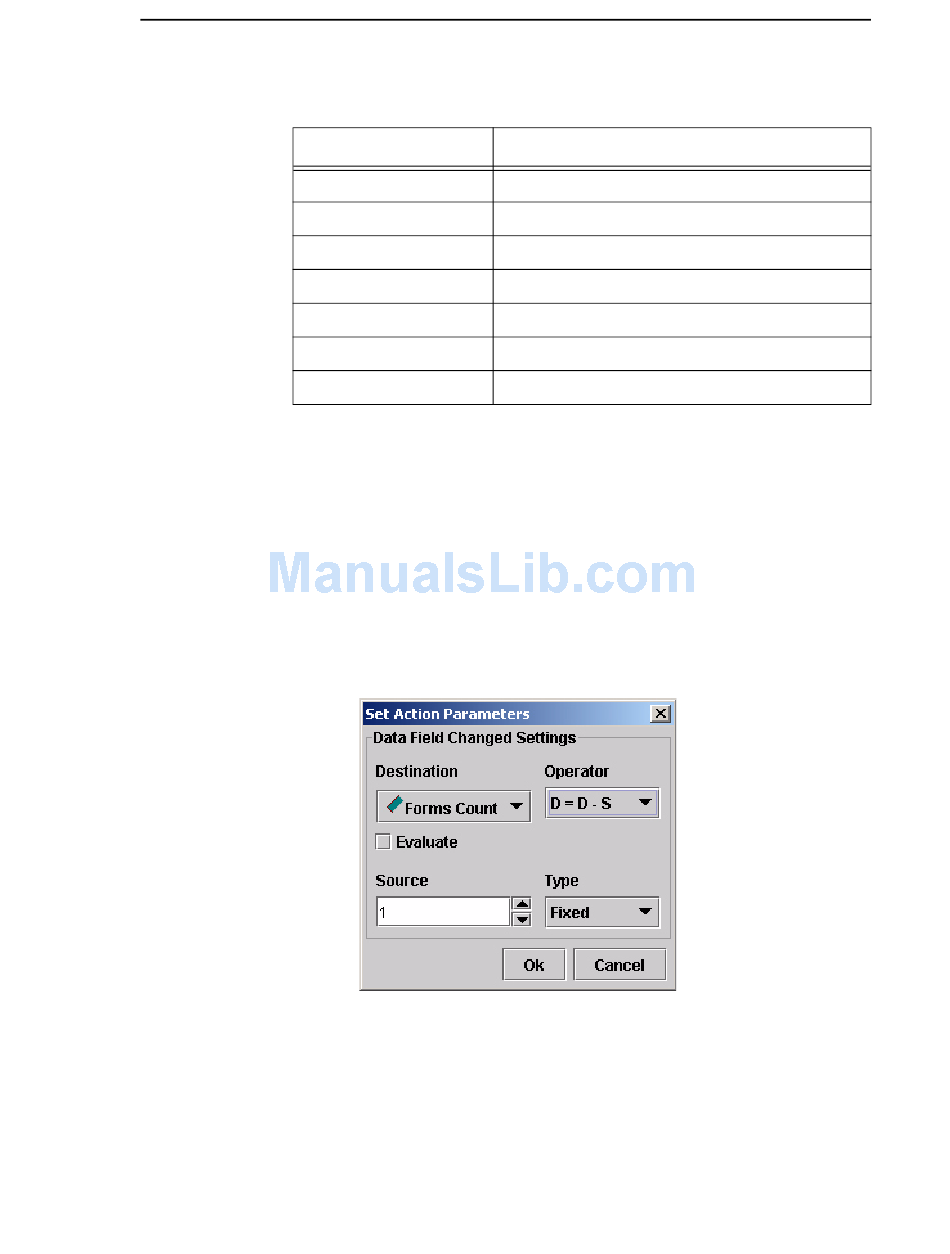

Figure 196. Setting Operator Parameters for a Data Field
Data Field Events And Actions
Results
Destination 'Logical OR' with Source
Destination 'Logical AND' with Source
Destination 'Logical EXOR' with Source
Destination 'Logical AND' with 'Inverted' Source
Destination becomes 'Inverted' Source
Destination 'Logical Shift Right' Source times
Destination 'Logical Shift Left' Source times
227
