Printronix T5000 Software Manual page 281

Example Exporting Telemetry Data To A Microsoft Access Database

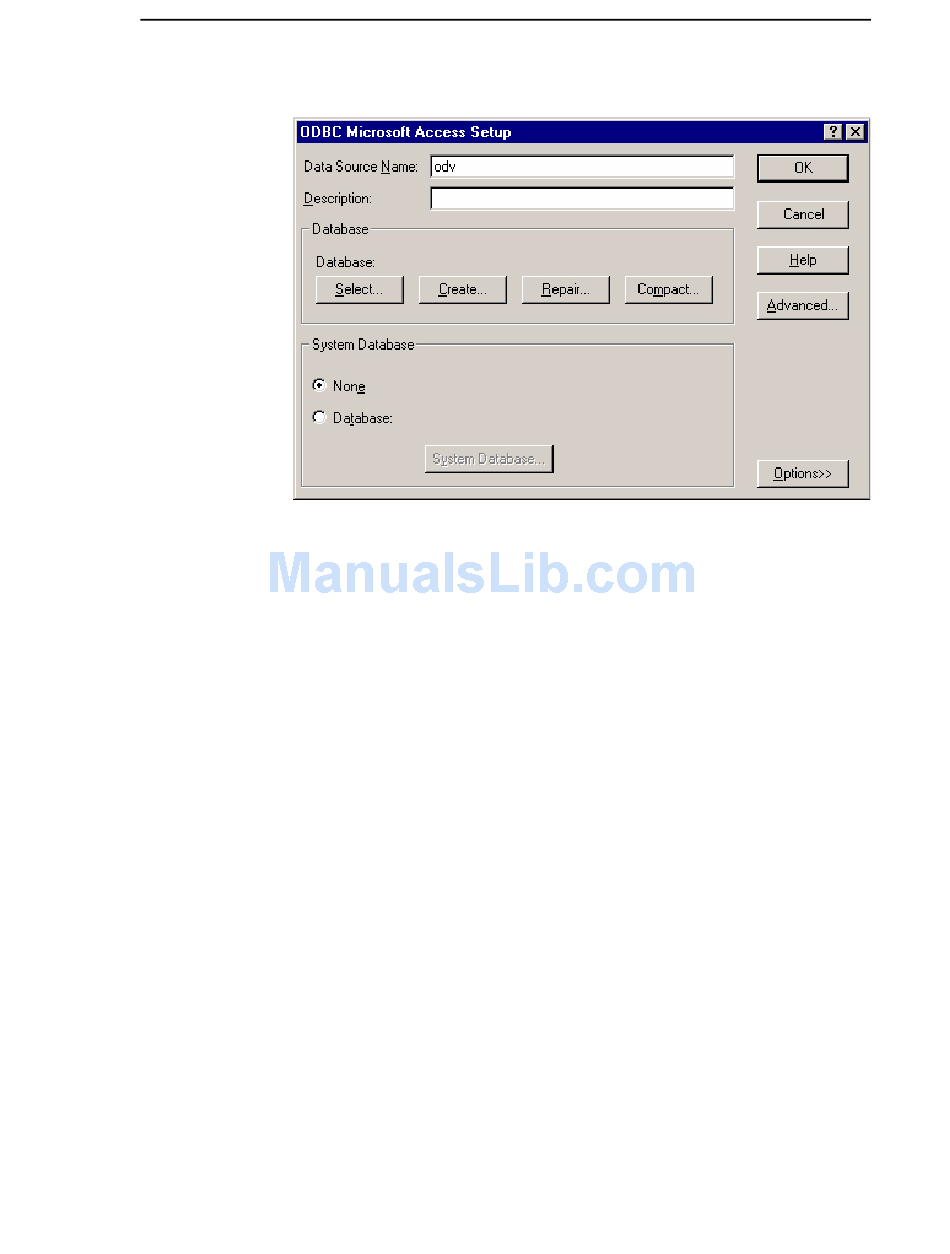

Figure 242. Entering the Data Source Name
12. Type odv in the Data Source Name field. See Figure 242.
13. Click Select to specify the odv database that you created.
14. Click Advanced to specify the username (odvuser) and password
(odvpassword) to access the database.
15. Using Notepad, create an AutoID Data Manager properties file named
pm.txt that contains the following text:
OdvJdbcDriver=sun.jdbc.odbc.JdbcOdbcDriver
OdvJdbcUrl=jdbc:odbc:odv;UID=odvuser&PWD=odvpassword
OdvJdbcDbName=events
OdvJdbcDbFields=CaptureDate,FailureCode,DecodedData
16. Rename the file pm.txt to pm.pro and place it into the program
installation directory.
17. Run the AutoID Data Manager and collect the telemetry data.
The collected telemetry data will be inserted into the odv database.
281
