Defining Reports - Printronix T5000 Software Manual

Defining Reports

Continuing with the previous example, we want to receive a message on the
operator panel LCD that all forms have been printed.
To define a report do the following:

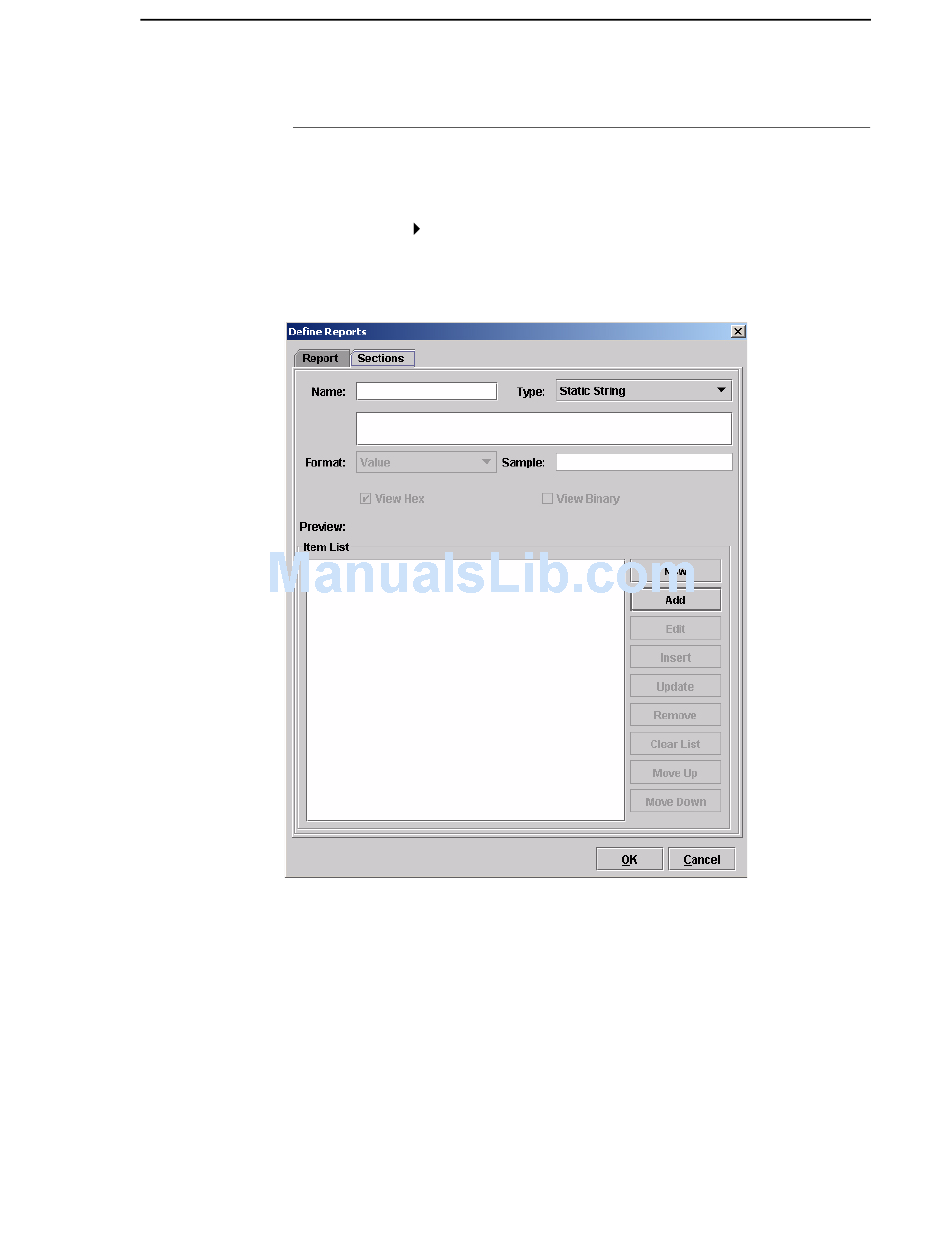

1. Select Edit Define Reports. The Define Reports dialog box opens with
the Report tab active (Figure 200). Two tabs are available, the Report and
Sections tabs.
Figure 201. The Sections Tab of the Define Reports Dialog Box
2. Click the Sections tab (Figure 201). We will use this tab to define all
sections needed to make the full report. The printer operator panel LCD is
has a maximum of 16 characters available per line to display the
message.
Defining Reports
231
