Multiple Actions - Printronix T5000 Software Manual

Chapter 6
Entry Control Buttons

Multiple Actions

If required, GPIO can execute a number of actions on a single event. Multiple
actions specified for a single event will be executed in the order they are
entered in the mapping table.
Figure 189 shows a mapping table where the first action is to enable GPIO
events by making the Input Opto-coupler event active. The second action is to
disable GPIO events by making the Input Opto-coupler event inactive. The
third action is to perform a form feed. Since the GPIO Configuration Manager
performs mappings in sequence, this program will not produce a clean sheet
because the Form Feed action follows the GPIO disable command. A form
feed cannot happen when all GPIO events are disabled first.

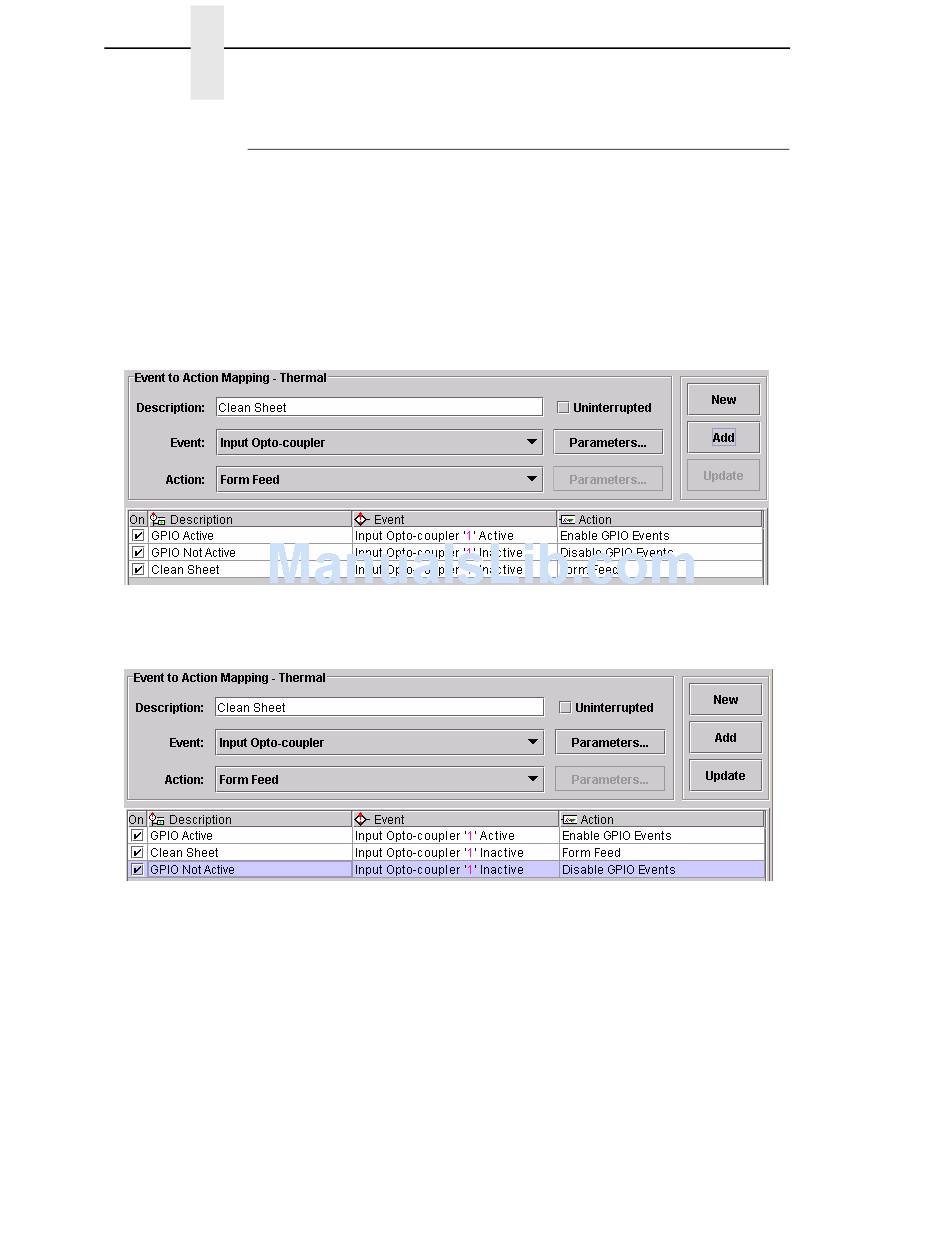

Figure 189. Incorrect Setup of Multiple Actions
Figure 190 shows a correct mapping table; a form feed is executed before the
actual disabling of GPIO.
Figure 190. Correct Setup of Multiple Actions
To change the sequence in which the entries appear in the table, click and
drag the entry to a different location in the table.
