Printronix T5000 Software Manual page 280

Chapter 7
Telemetry Data Export To 3rd Party Databases

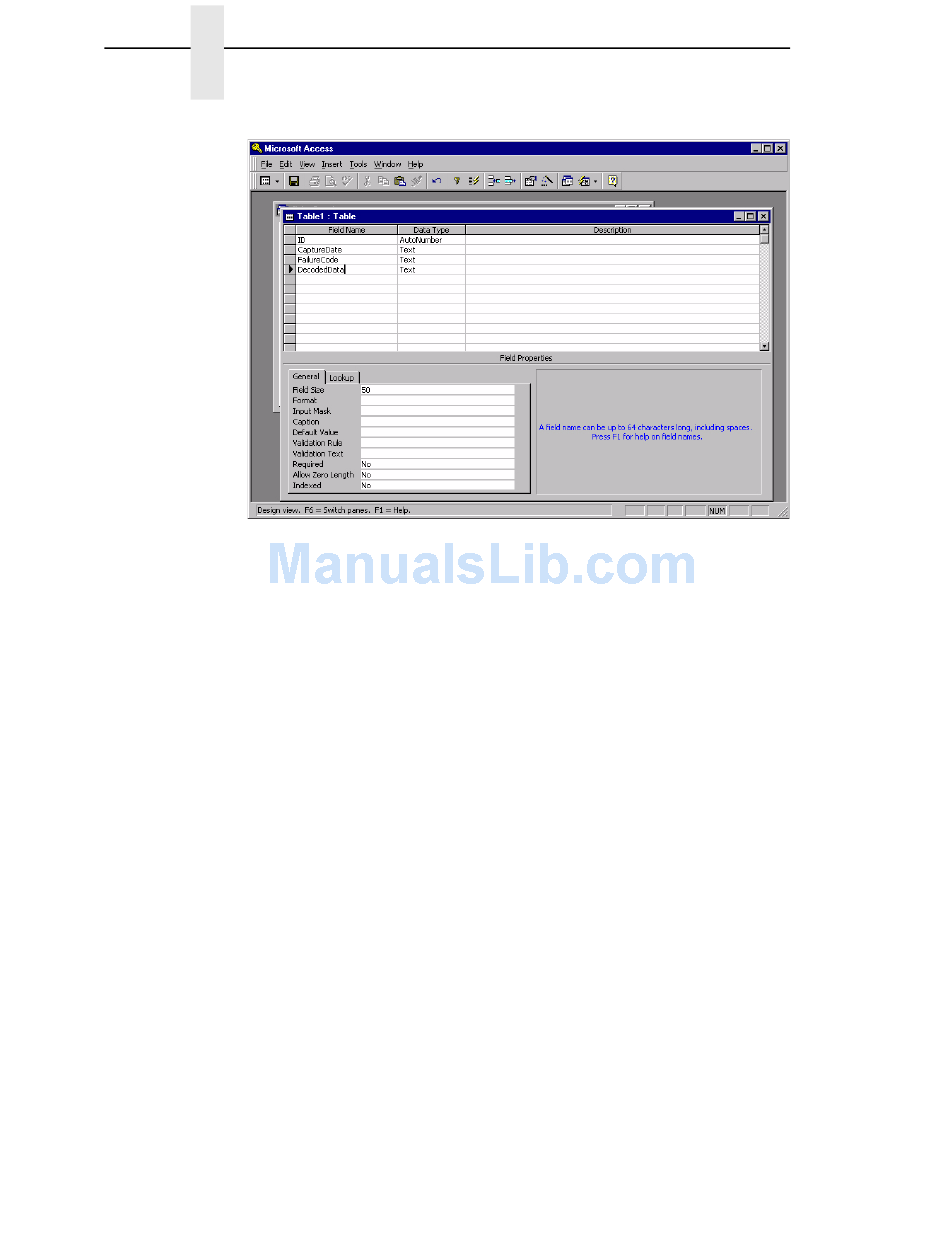

Figure 241. Adding Fields Using Design View in Microsoft Access
5. Name the next three fields CaptureDate, FailureCode, and
DecodedData, and define them as Text data types. See Figure 241.
NOTE: Beginning with the second field, the field names must match the order
6. Save the table as events.
7. Save the database as odv.
8. Open the Control Panel and double-click Data Sources (ODBC).
NOTE: In Windows
9. Click the System DSN tab.
10. Click Add to create a new System DSN (Data Source Name) entry.
This way the database can be accessed by the AutoID Data Manager
running on a workstation that is not running the database.
11. Select Microsoft Access Driver from the driver list and click Finish.
(If the driver is not listed, you need to install the driver before continuing.)
280
of the fields specified in the OdvJdbcDbFields property. In this
example, the OdvJdbcDbFields would be defined as
OdvJdbcDbFields=CaptureDate,FailureCode,DecodedData.
®
2000, double-click Administrative Tools, then Data
Sources (ODBC).
In Windows XP, click Performance and Maintenance, then
Administrative Tools, then Data Sources (ODBC).
