Printronix T5000 Software Manual page 20

Chapter 1
Getting Started

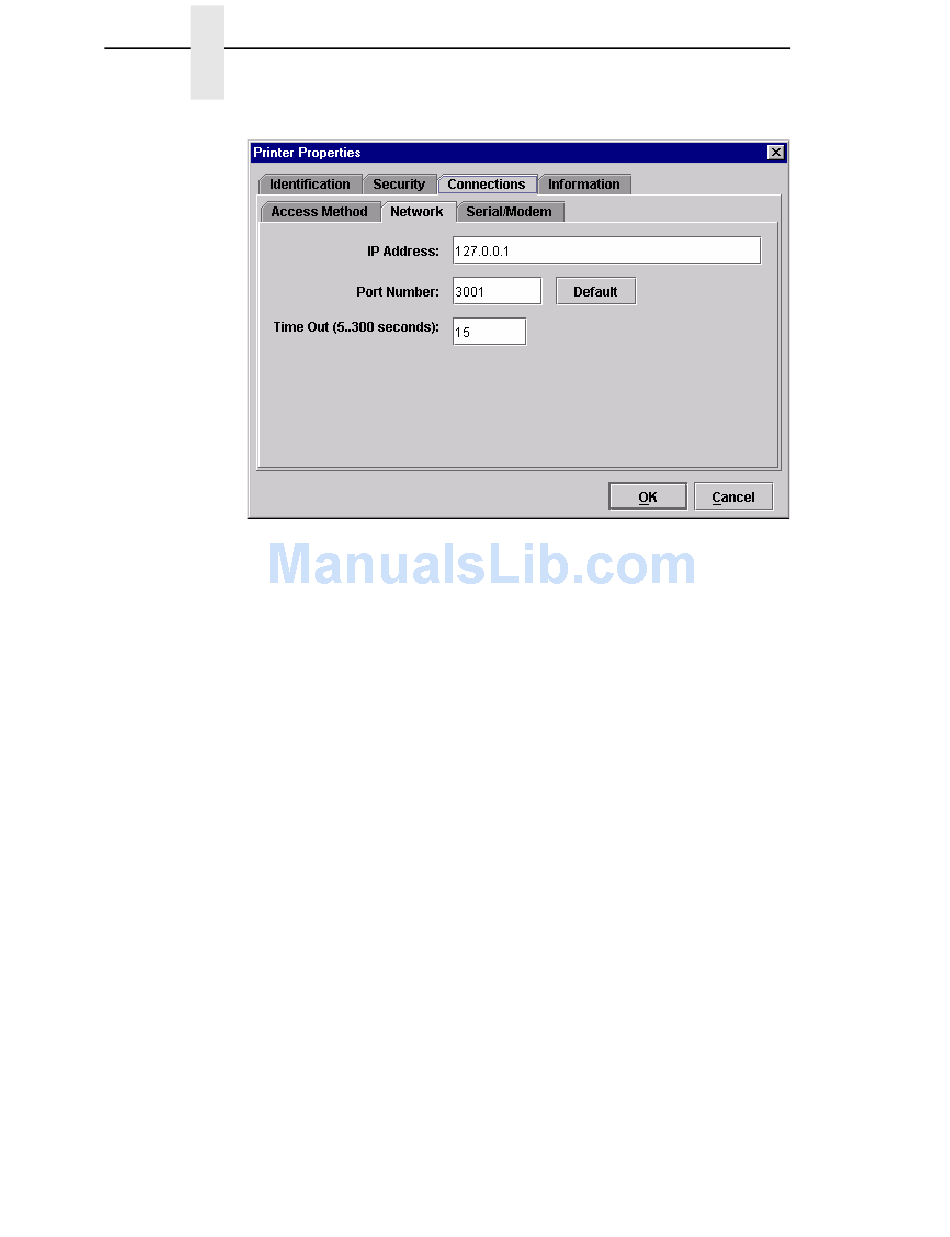

Figure 4. Printer Properties: Connections Tab – Network Sub-Tab
8. Click the Connections tab. By default, the Network sub-tab displays.
9. Click the IP Address field and then type the IP Address of the printer you
want to access. Follow the format shown in Figure 4.
The Port Number field must be set to the same port as the printer. Leave
it set at 3001. Leave the Time Out (5..300 seconds) field set at 15
seconds.
20
