Printronix T5000 Software Manual page 40

Chapter 2
The Menu Bar
Properties
Select Status Properties to open the Status Monitoring Properties dialog
box. The dialog box contains three tabs: Discovery, Polling, and Alert
Delivery.
NOTE: To enable printer discovery, check the Enable Printer Discovery
Discovery Tab
You can discover printers on a network in three ways:
1. Print Server Discovery: This option allows you to discover all PrintNet
printers on a subnet. To enable the option, check the Enable Print
Server Discovery check box in the Status Monitoring Properties dialog
box (see Figure 24), then click Apply or OK.
Response Wait (Seconds): To specify the time delay (in seconds) PNE
waits for a printer response. By default, the value is set at 5 seconds.
Broadcast IP, Subnet Mask, and Return Gateway: These settings must
match your network configuration. See your system administrator.
NOTE: To discover unconfigured NICs, you must enter the Gateway Address
40
check box.

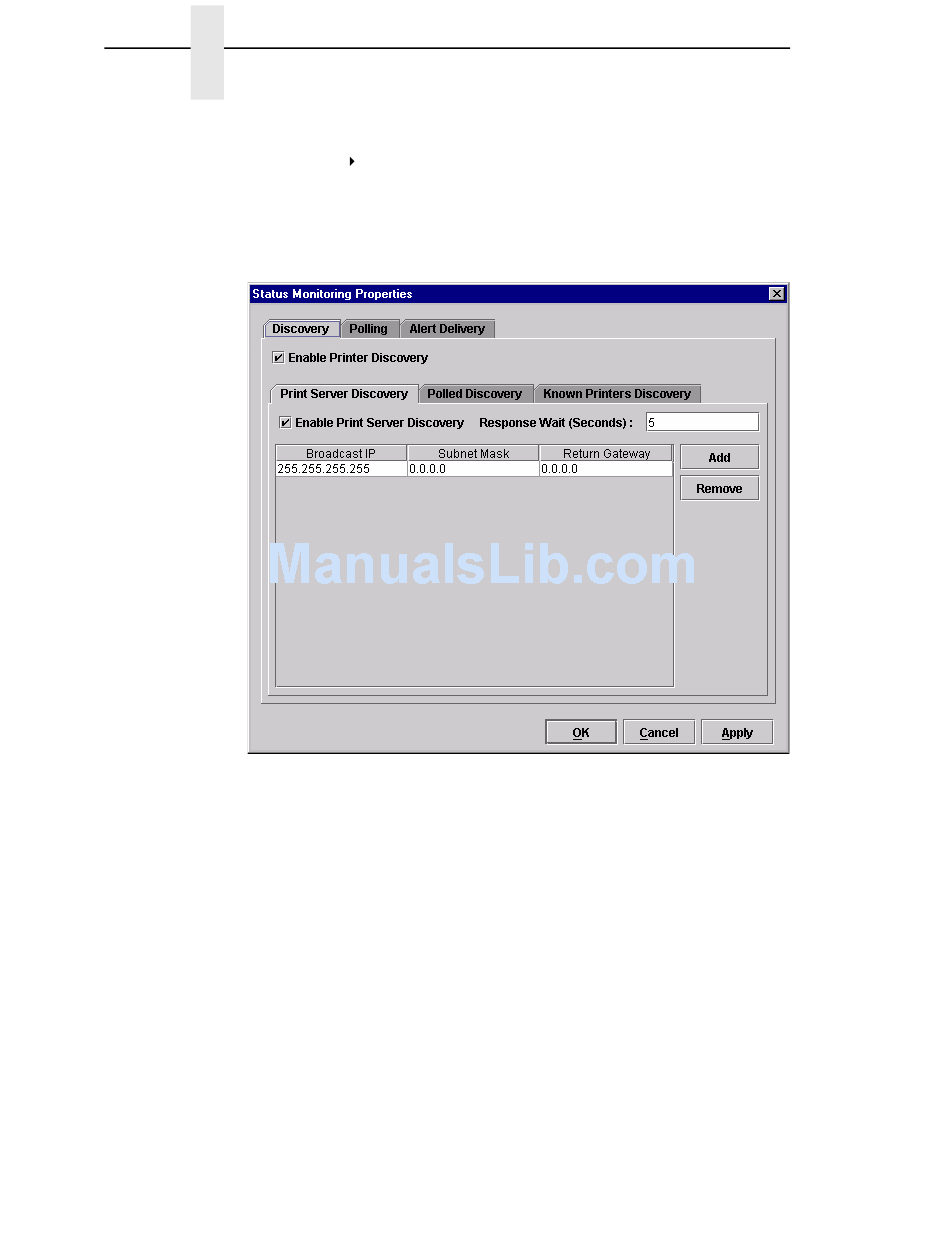

Figure 24. Status Monitoring Properties:
Discovery Tab – Print Server Discovery Sub-Tab
and Subnet Mask in the Return Gateway field.
®
