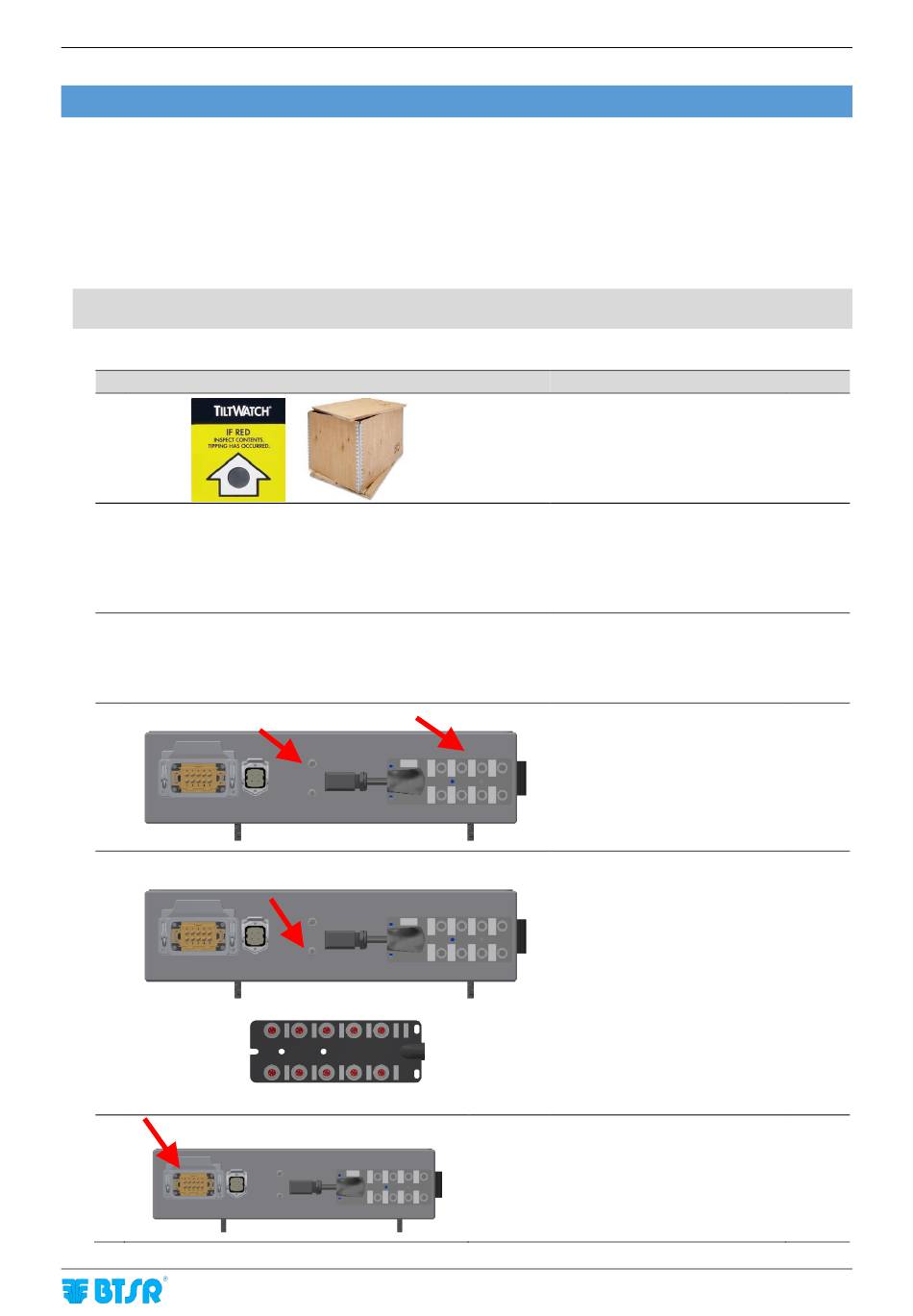

A.1 –Sign Off Procedure at System Reception
Prior to be shipped, the components of MATRIX CUBE (MCC) System are submitted to pre-configuration and functional
check at the BTSR SpA factory.
Upon system reception, however, the Customer is kindly requested to carry out some preliminary OFF-LINE checks to
locate possible problems related for instance to transport, prior to carry out the actual installation. For more details
please refer to dedicated installation procedures and
This operation must be executed even and most of all in case the MATRIX CUBE (MCC) System is not immediately
installed, but it remains stored for a given time before the installation.
Step
1
2
3
4
5
6
Description
Check the integrity of packages
and crate Tiltwatch.
Immediately notify any eventual
damages
Remove the individual Creel
items from the relevant
packages according to dedicated
procedure
Complete positioning and the
mechanical-assembly of all the
parts
Check and connect the MATRIX
CUBE (MCC) Terminal cable to
the electrical panel of the Creel.
Connect the CNX10.001 junction
board to the electrical panel of
the Creel and to the TMS
sensors, by means of the
F4M8/3000/M4MB extension
cable
Connect the 10 pins I/O wired connections
and/or ethernet cables for the signals
exchange with production line
MATRIX CUBE (MCC)
Sign Off
Check
- A-1 -
