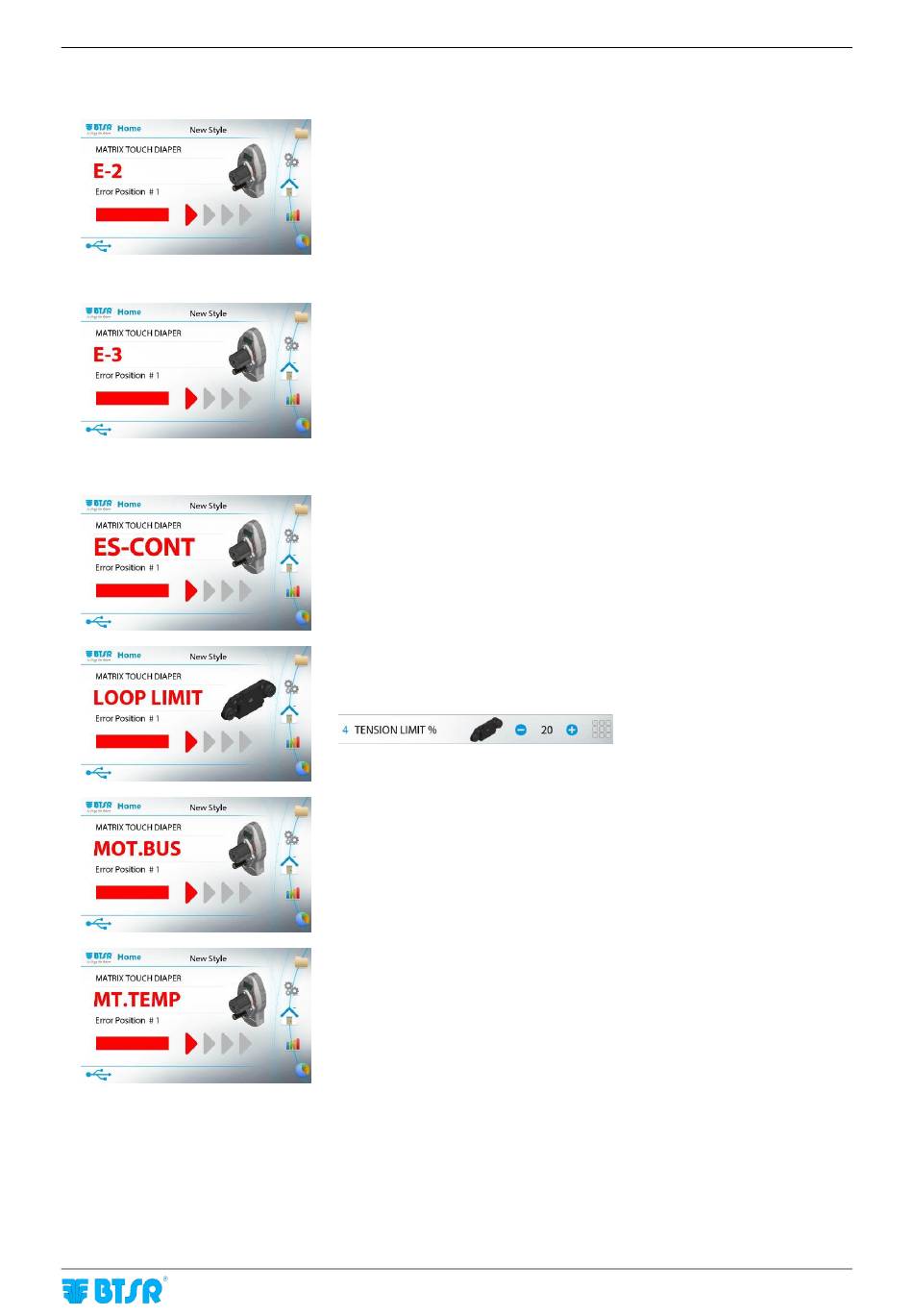

Error E-2 on a DIAPERFEEDER device
Error E-3 on a DIAPERFEEDER device. Error
related to TS444/TFS tension sensor.
Internal DIAPERFEEDER protection against
overcurrents
Maximum limit of tension correction
reached on MULTILOOP mode Related to
parameter TENSION LIMIT
DIAPERFEEDER Supply voltage lower than
15 VDC.
DIAPERFEEDER motor temperature
exceeded the maximum expected value
MATRIX CUBE (MCC)
Error Messages
Diaperfeeder and check if the
motor turns freely
Solution 1: Reset the alarm
locally on DIAPERFEEDER
Solution 2: Check if the elastic
comes freely from the spool and
if there are abnormal work
condition , press + button on
Diaperfeeder and check if the
motor turns freely
Solution 1: Clean the TFS (TS44),
remove the elastic from the
load cell.
Solution 2: Perform a new
DIAPERFEEDER offset calibration
(please refer to dedicate
DIAPERFEEDER manual for more
details)
Solution 1: Reset the alarm
locally on DIAPERFEEDER.
Solution 2: Check the supply
voltage, if the problem persists,
contact your BTSR reseller
Solution 1: Reset the alarm
locally on DIAPERFEEDER.
Solution 2: Check the supply
voltage, if the problem persists,
contact your BTSR reseller.
Solution 1: Reset the alarm
locally on DIAPERFEEDER
Solution 2: Check if the elastic
comes freely from the spool and
if there are abnormal work
condition , press + button on
Diaperfeeder and check if the
motor turns freely
