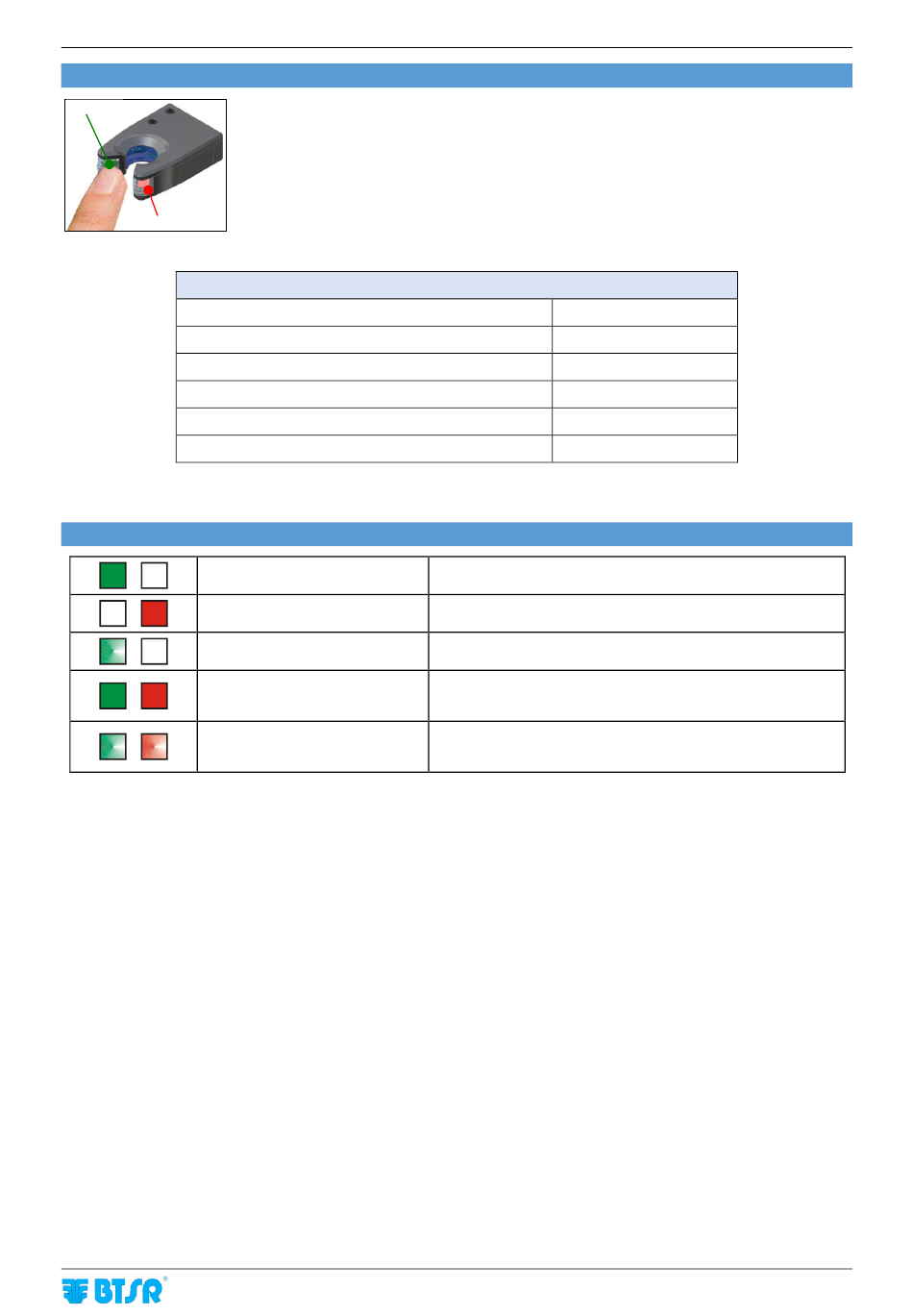

Optical interface of IS3F/HTP sensors
Green Led
Touch
light
Red Led
Power supply voltage
Current absorption
Operating temperature range
Storage temperature range
Communication bus
Overall dimensions
Interpretation of the signaling lights located on the sensors
Green LED ON
Red LED ON
Green LED FLASHING fast
Green LED ON
Red LED ON
Green LED FLASHING
Red LED FLASHING
The IS3F/HTP sensors have two signaling lights (green LED, red LED) and a "Touch Light"
optical button.
During the automatic numbering of the sensors (flashing green LED), touch the optical
button to assign the sensor the number shown in the devices configuration screen.
IS3 Sensor Technical Characteristics
MATRIX CUBE (MCC)
12-24 VDC ± 20%
20 mA Max
+10° / +60° C
-25° / +85° C
RS485
36,3x25x10 mm
The yarn is running on the green side, fed by the right spool.
The yarn is running on the red side, fed by the left spool.
The system is in automatic numbering stage.
Upgrading of the firmware (BOOT).
It indicates the steady yarn condition (broken)
