1.7 MATRIX TOUCH DIAPER Interface

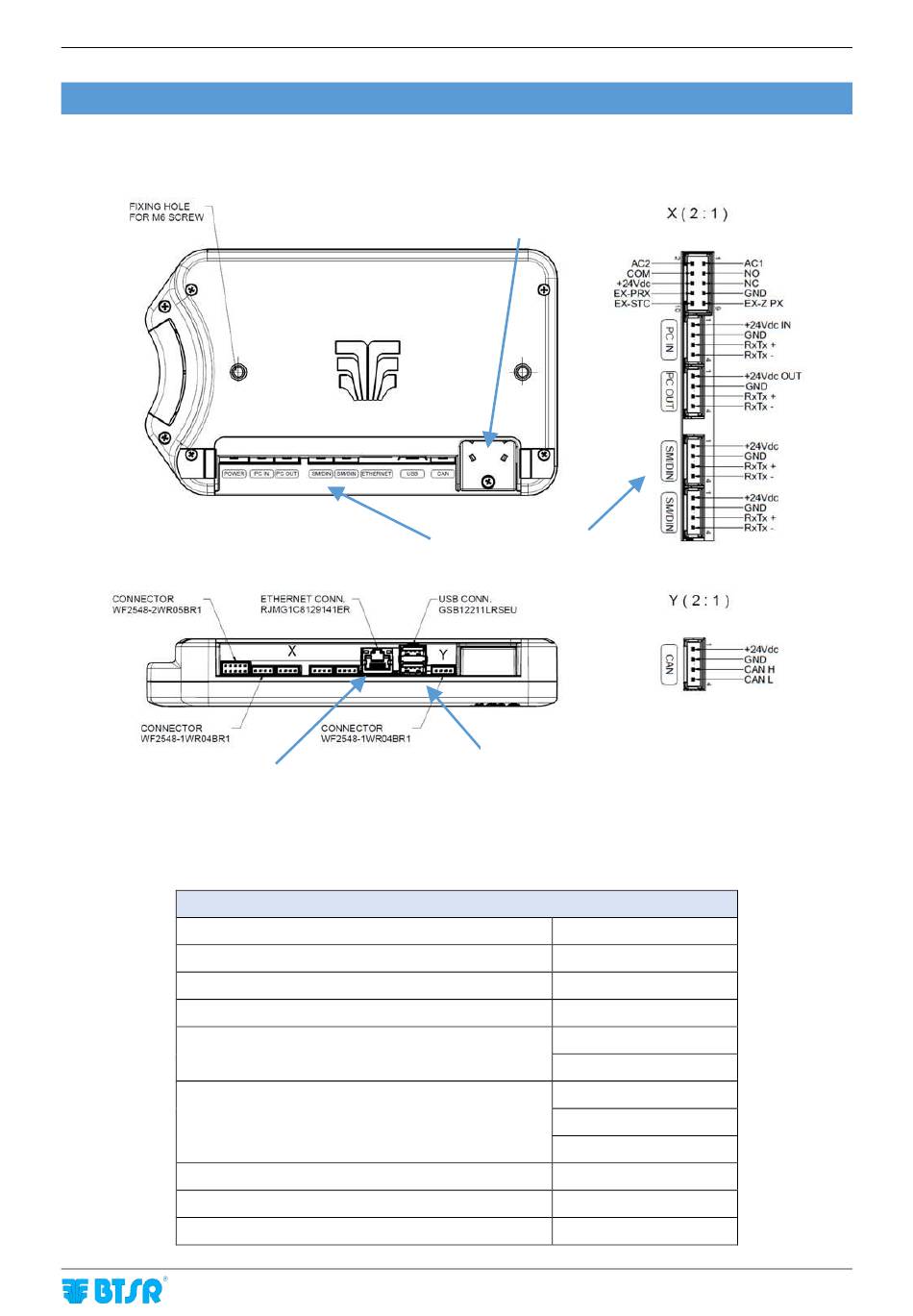

The following figure shows the electrical interface (pin assignment) of MATRIX TOUCH DIAPER terminal.
Ethernet port for
PC-LINK WEB DIAPER
Power supply voltage
Current absorption
Protection fuse (SMART MATRIX)
Protection fuse (Sensor power supply)
Stop output (NO/NC)
Inputs
Operating temperature range
Storage temperature
Overall dimensions
Figure 18 – MATRIX TOUCH DIAPER interface
MATRIX TOUCH DIAPER Terminal Technical Characteristics
MATRIX CUBE (MCC)
Tamper Battery slot
Connection to electrical
box
USB connection for Backup and
firmware upgrade
24 VDC ± 10%
500 mA Max
1.5 A
1.5 A
0.3 A 125 VAC
1 A 30 VDC
0 – 24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
210x125x35 mm
Installation and Connections
