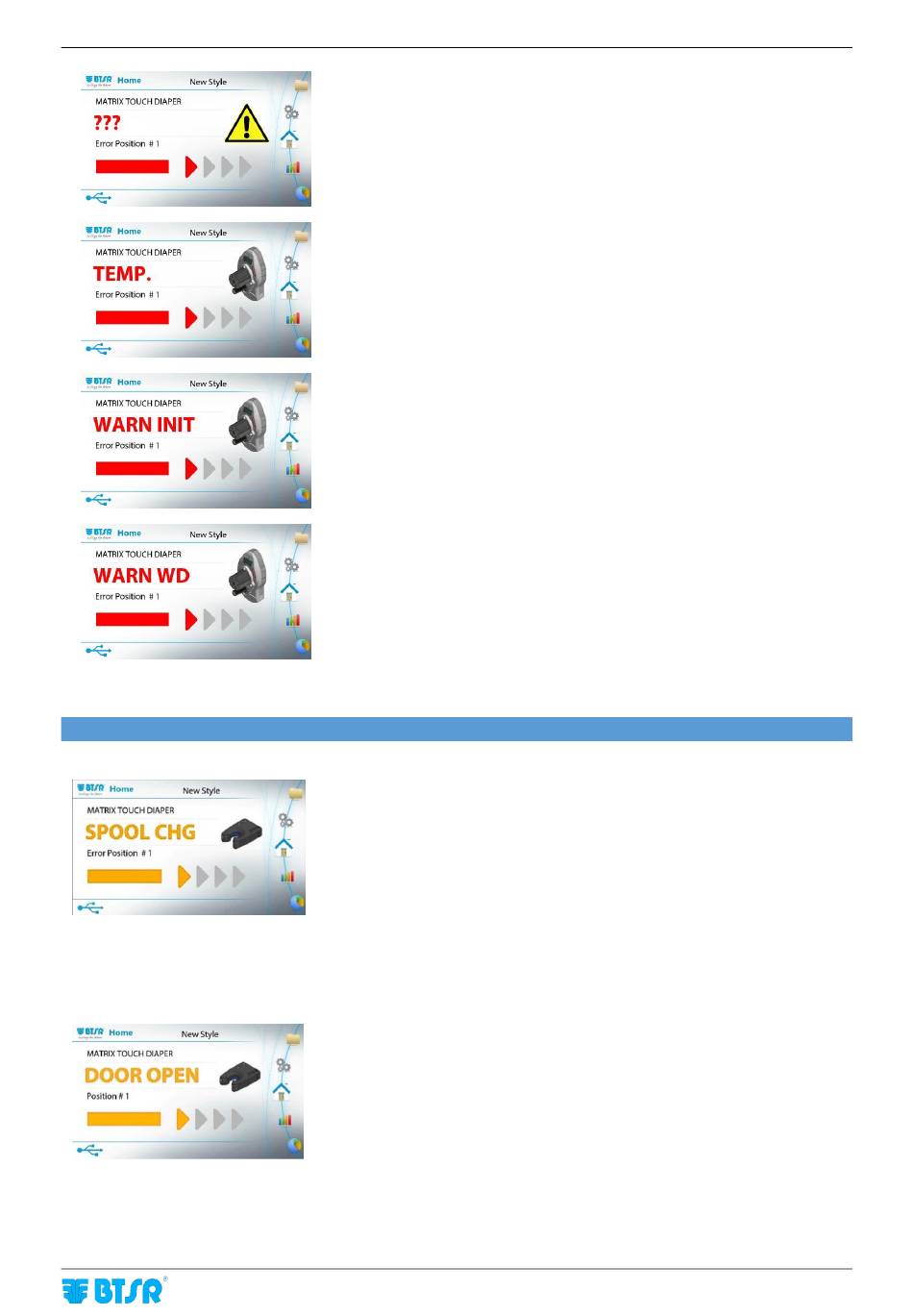

Warnings detected during the system operation
Generic error on DIAPERFEEDER devices.
DIAPERFEEDER electronic board
temperature exceeded the
maximum expected.
.
Internal hardware error on a
DIAPERFEEDER device.
Internal hardware error on a
DIAPERFEEDER device.
Spool reloading request on creel: warning to
inform operators that one spool is empty.
To be reset after spool replacement:

on MATRIX CUBE (MCC) creels:
touching IS3F sensor

on MATRIX CUBE (MCC)2 and
MATRIX CUBE (MCC)3 creels:
opening and closing spool drawer
It activates the WARNING output without
stopping the machine.
Spool-holder drawer not correctly closed
(only for Matrix Cube 2 or Matrix Cube 3
creels).
Close the drawer steadily
MATRIX CUBE (MCC)
Error Messages
Solution 1: Check the usage
conditions of the systems, if the
problem persists, contact your
BTSR reseller.
Solution 1: Reset the alarm
locally on DIAPERFEEDER, if the
problem persists, contact your
BTSR reseller
Solution 1: Reset the alarm
locally on DIAPERFEEDER, if the
problem persists, contact your
BTSR reseller
Solution 1: Reset the alarm
locally on DIAPERFEEDER, if the
problem persists, contact your
BTSR reseller
Solution 1: Replace the empty
spool. Put the elastic with splice in
the IS3F/HTP sensor, reset the
warning locally on the IS3F/HTP
sensor
Solution 1: Close the drawer to
restore the proper work position
