SM-DIN/MULTILOOP Technical Characteristics
Power supply voltage
Maximum absorption
Protection fuse (Board protection)
Protection fuse (sensors supply)
STOP output (normally open contacts)
Inputs
Operating temperature range
Storage temperature
Dimensions

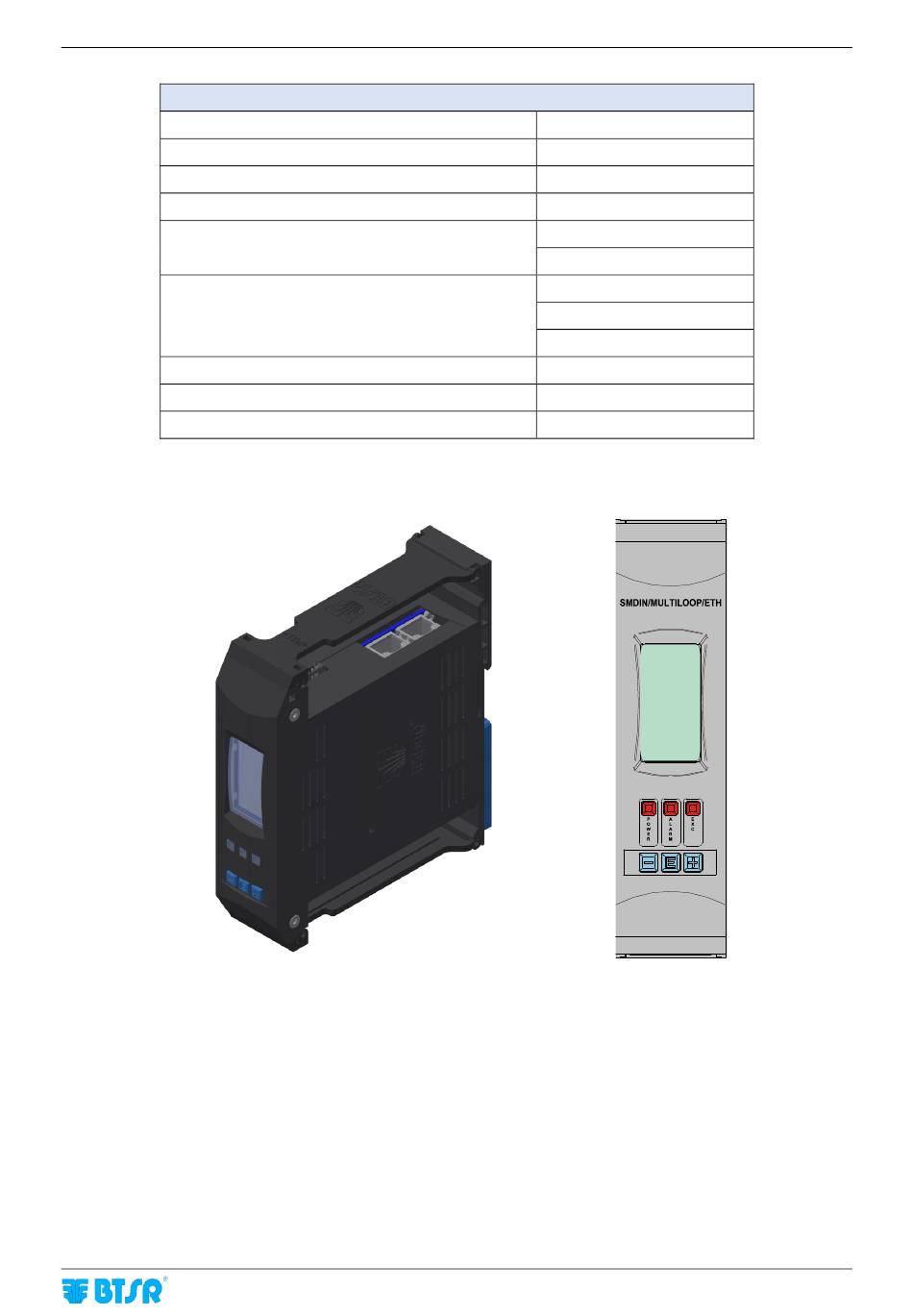

Figure 21 – SM-DIN/MULTILOOP
MATRIX CUBE (MCC)
Installation and Connections
24 VDC
200 mA Max
3 A
3 A
0,3 A 125 VAC
1 A 30 VDC
0 – 24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
138,5x124x35 mm
