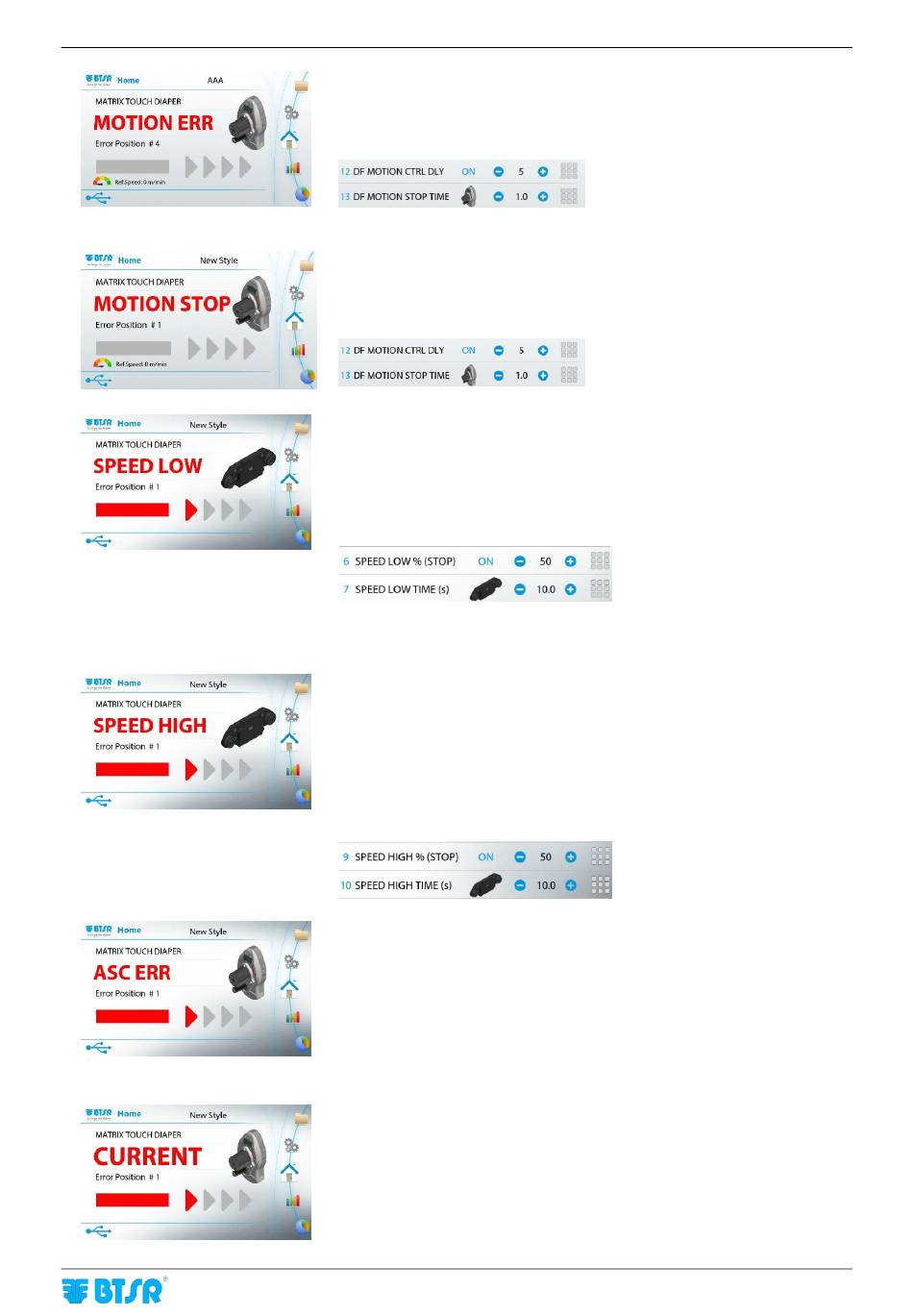

Motion Error: a yarn, that should be steady
is, on the contrary, running. Error related
to MOTION CONTROL setting; it activates
the STOP output and stops the machine.
Motion Stop Error: Yarn that should be in
run is on contrary in stop. Errore related to
Motion Control Setting; ; it activates the
STOP output and stops the machine.
Speed Low Error: TMS speed lower than
the minimum value allowed for the time
set on the style parameters. Error related
to TMS sensor when system is working in
TRIOLOOP mode and SPEED CONTROL is
activated. It activates the STOP output and
stops the machine.
Speed High Error: TMS speed higher than
the maximum value allowed for the time
set on the style parameters. Error related
to TMS sensor when system is working in
TRIOLOOP mode and SPEED CONTROL is
activated.
It activates the STOP output and stops the
machine.
Hardware error on the loading cell of the
TS444/TFS tension sensor equipped on
DIAPERFEEDER device.
The current absorbed by the
DIAPERFEEDER device exceeded the
maximum allowed value.
Check the usage conditions of the systems.
MATRIX CUBE (MCC)
Error Messages
Solution 1: Motion detected on
DIAPERFEEDER/TMS position in
stand by, please remove the
elastic completely
Solution 1: Check the elastic
condition and restore the
correct path.
Solution 2: Elastic broken or
wrong parameters in
"DIAPERFEEDER MOTION
CONTROL DELAY"
Solution 1: Check the pulleys
efficiency (after TMS) the
correct alignment with the glue
nozzle, the glue nozzle
contamination.
Solution 2: Lost of efficiency of
pulleys after TMS or wrong
alignment with the glue nozzle
or glue contamination on the
glue nozzle; verify the elastic
elongation in DIAPERS produced
Solution 1: Check the pulleys
efficiency (after TMS) the
correct alignment with the glue
nozzle, the glue nozzle
contamination.
Solution 2: Lost of efficiency of
pulleys after TMS or wrong
alignment with the glue nozzle
or glue contamination on the
glue nozzle; verify the elastic
elongation in DIAPERS produced
Solution 1: Repeat the
DIAPERFEEDER initialization
procedure (IDENTIFY).
Solution 2: If the ALARM persist
chech the electrical
connections, if the ALARM
persist replace the
DIAPERFEEDER
Solution 1: Reset the alarm
locally on DIAPERFEEDER.
Solution 2: Check if the elastic
comes freely from the spool and
if there are abnormal work
condition , press + button on
