Installation and Connections
1.2 TMS Sensor Assembly
The TMS sensor assembly must be installed as close as possible to the elastic yarn application point.

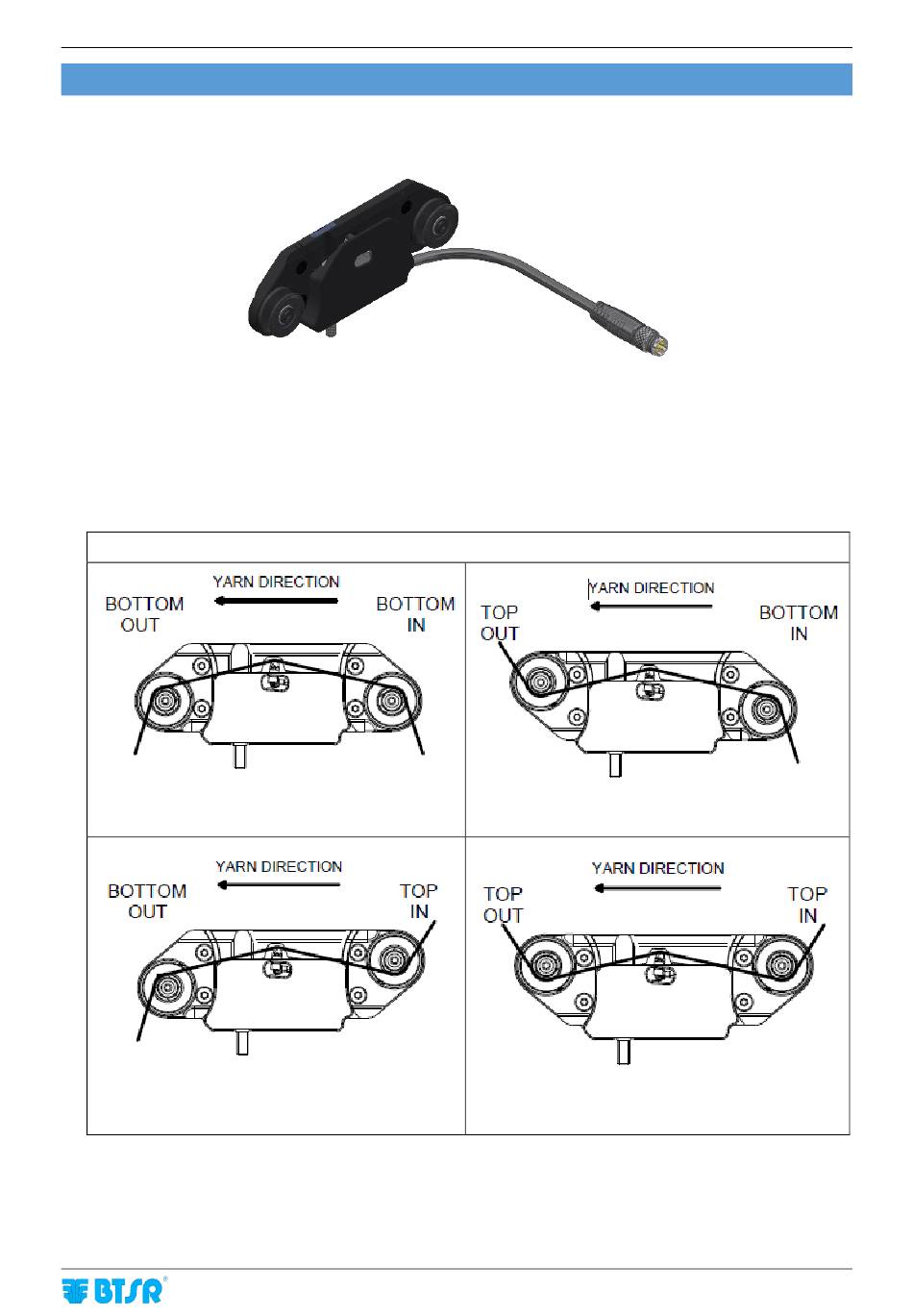

Figure 9 - TMS sensor
According to the sensor positioning, you can have 4 different configurations, to make the yarn feeding easier:
TMS CONFIGURATIONS
ΔΔ = BT CONFIGURATION BOTTOM(IN) - TOP(OUT)
ΔΔ = BB CONFIGURATION BOTTOM(IN) -
BOTTOM(OUT)
ΔΔ = TB CONFIGURATION TOP(IN) - BOTTOM(OUT)
ΔΔ = TT CONFIGURATION TOP(IN) - TOP(OUT)
MATRIX CUBE (MCC)
- 1-3 -
