Installation and Connections

1.15 Spool Loading

Identification of spool sides
The following figure indicates the convention used to identify the 2 spools (right side and left side) included in each
creel module.
OBSERVATION POINT

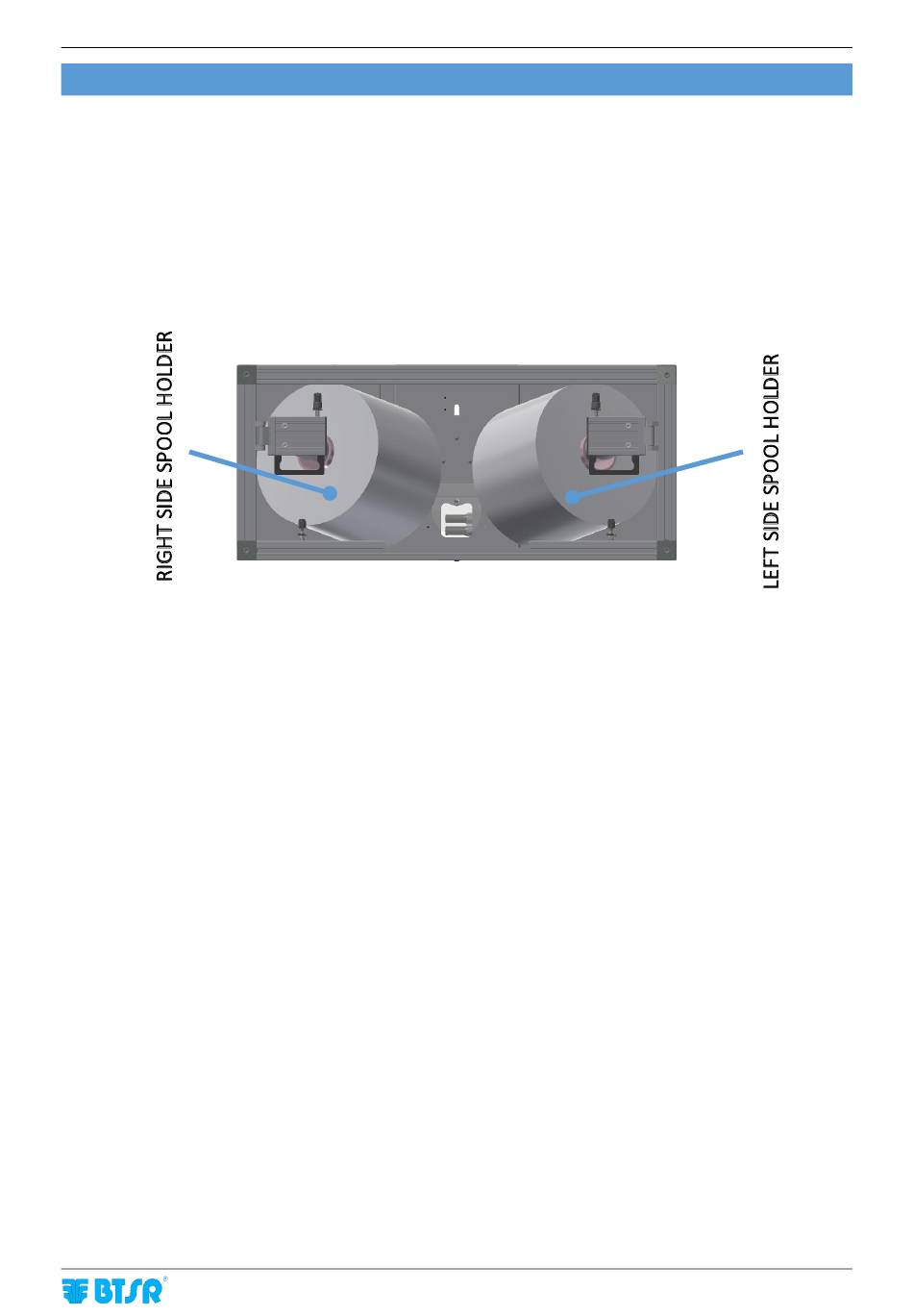

Figure 28 – Identification of right and left side
MATRIX CUBE (MCC)
- 1-24 -
